General info
|
|
Article number
|
3BSE092689R1
|
MODBUS TCP is an open industry standard widely spread due to its ease of use. It is a request response protocol and offers services specified by function codes.

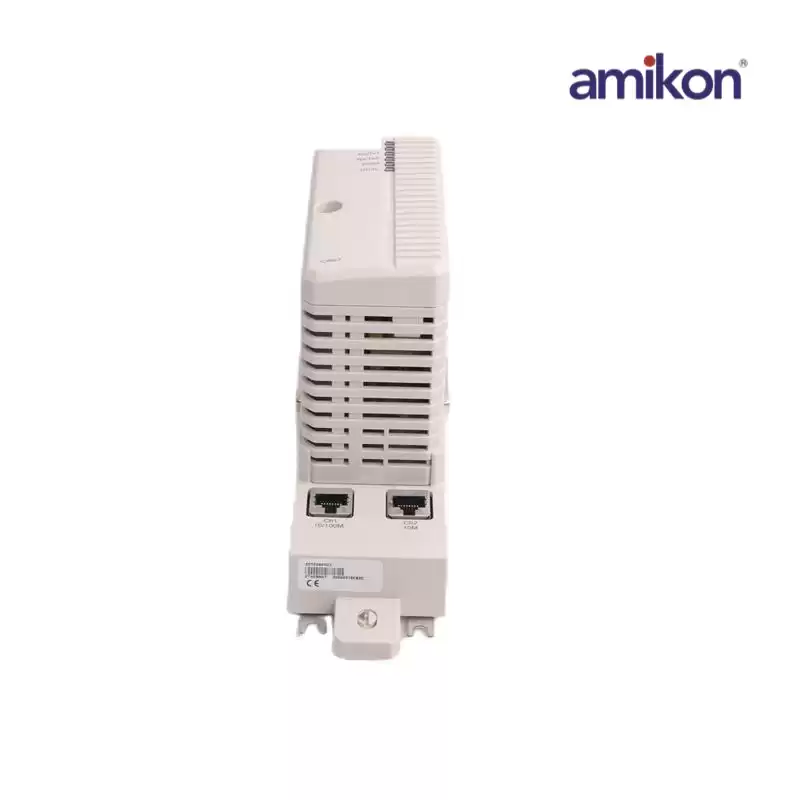

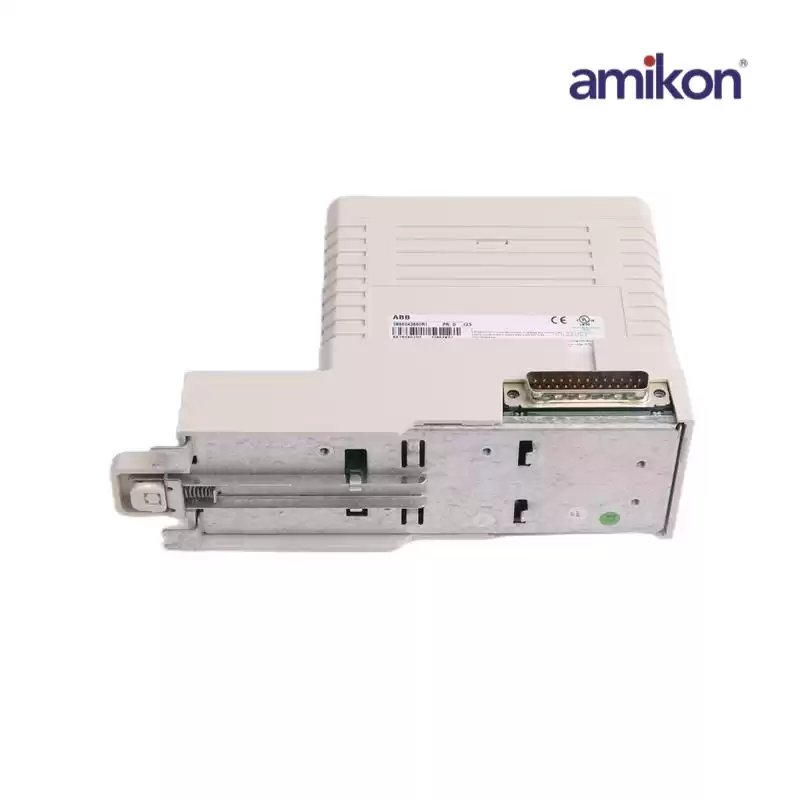

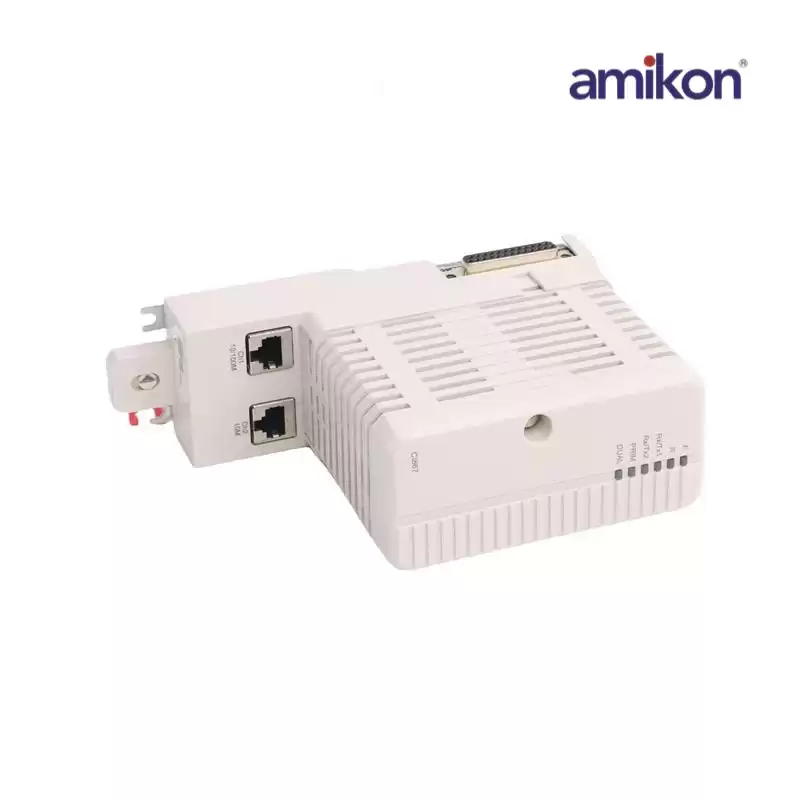

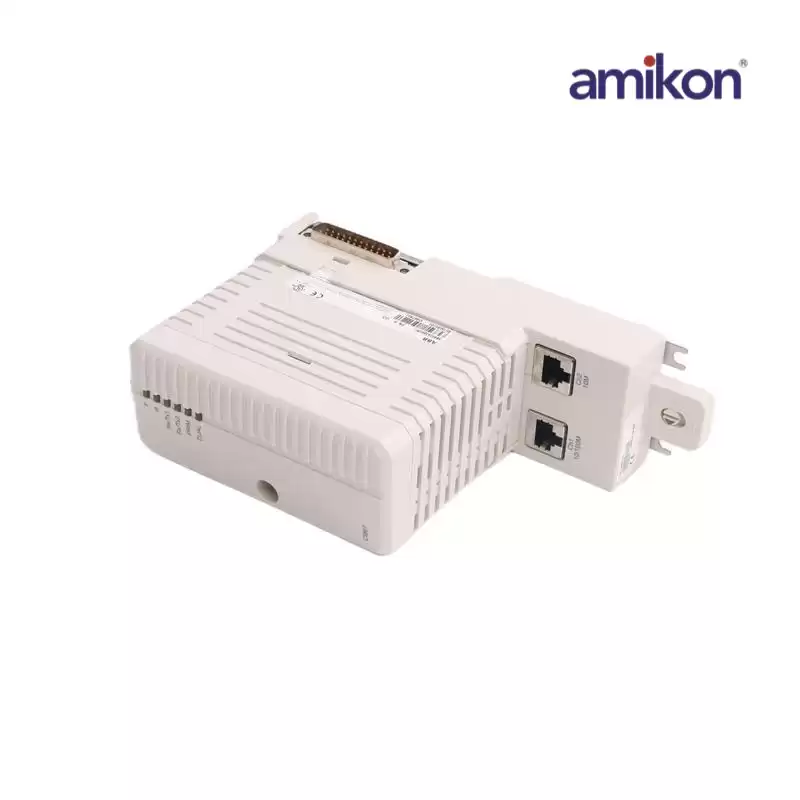

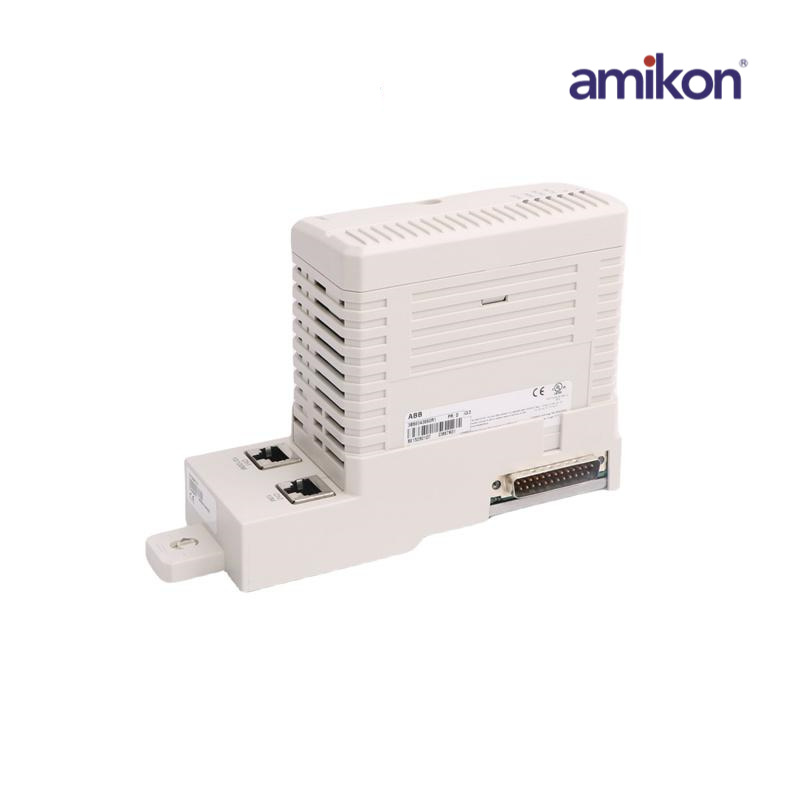

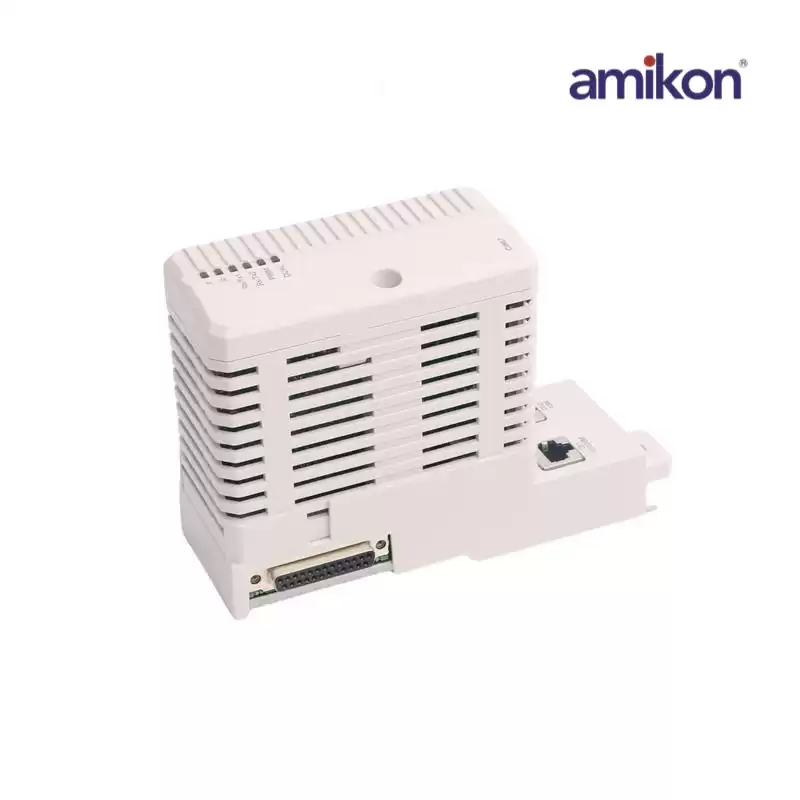

MODBUS TCP combines the MODBUS RTU with standard Ethernet and universal networking standard TCP. It is an application-layer messaging protocol, positioned at level 7 of the OSI model. The CI867A/TP867 is used for connection between an AC 800M controller and external Ethernet devices using Modbus TCP protocol.
The CI867 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply via the CEX-Bus. The Ethernet cable must be connected to the main network through an Ethernet switch.
The CI867A module will only work with System 800xA 6.0.3.3, 6.1.1. and subsequent versions..
|
|
Communication protocol
|
MODBUS TCP
|
|
Master or slave
|
Master / Slave
|
|
Number of channels
|
1 channel
|
|
Transmission speed
|
10/100 Mbit/s (Ch1)
|
|
Line redundancy
|
No
|
|
Module redundancy
|
Yes
|
|
Hot Swap
|
Yes
|
|
Used together with HI Controller
|
Yes
|
