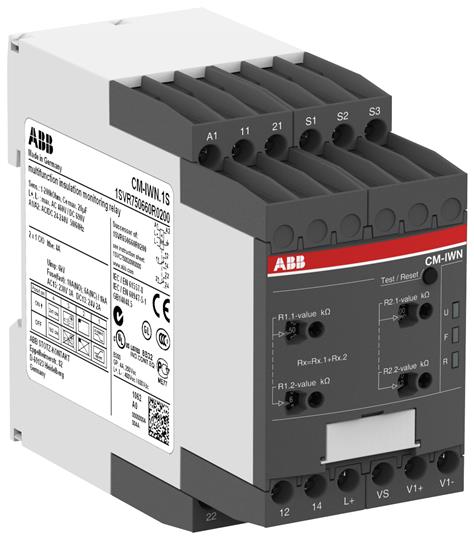

                Product specific picture:

ABB CM-IWN.1 1-200kOhm

1.CM-IWN.1 1-200kOhm we sell is 100% New Original Factory packing in good condition and have been tested before they are shipped. We will try our best to avoid any quality problems.

2.We will offer the technical support by experienced staff, which have undergone rigorous testing and certification!

3.We offer 12 month warranty after receiving parcels. If there are some workmanship or material defects with the products, please contact us firstly, we will exchange it or offer other solutions for you to make a choice.

4.If you order more than one item, please contact us, we can offer further discounts for you. And if you find other suppliers offer cheaper prices for the same product, we are also willing to provide you with reference to their price,even further discounts.

E-mail: plcinfo@mooreplc.com

CM-IWN.1 1-200kOhm

Manufacturer(s)

ABB

General Information

Extended Product Type:
CM-IWN.1S
Product ID:
1SVR750660R0200
EAN:
4016779852623
Catalog Description:
CM-IWN.1S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC
Long Description:
CM-IWN.1S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC System leakage capacitance 20 µF Replacement for 1SVR650660R0200
Categories
Products » Low Voltage Products and Systems » Control Products » Electronic Relays and Controls » Insulation Monitors

EAN:
4016779852623
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
97 mm
Package Level 1 Height:
109 mm
Package Level 1 Depth / Length:
52.5 mm
Package Level 1 Gross Weight:
0.27 kg
Package Level 1 EAN:
4016779852623
Dimensions
Product Net Width:
45 mm
Product Net Depth / Length:
104.8 mm
Product Net Height:
85.6 mm
Product Net Weight:
0.241 kg
Technical
Function:
Unearthed AC systems
Unearthed DC systems
Unearthed mixed AC / DC systems
Up to 400 V AC
Up to 600 V DC
Measuring Range:
1 ... 200 kΩ
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Output:
2 x 1 c/o or 1 x 2 c/o contacts, configurable
System Leakage Capacitance (CE):
20 µF
Terminal Type:
Screw Terminals
Environmental
RoHS Status:
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CB Certificate:
CB_DK-30302-A1-UL
CCC Certificate:
CCC_2010010303438770
cULus Certificate:
cULus508_20120727-E140448
Data Sheet, Technical Information:
2CDC112198D0201
Declaration of Conformity - CE:
1SVD981011-0002
DNV GL Certificate:
DNV_GL_TAA000017C
EAC Certificate:
EAC_RU_C-DE.ME77.B.01012
Environmental Information:
1SAA981018-2402
Instructions and Manuals:
1SVC750020M0000
RMRS Certificate:
RMRS_1740020250
RoHS Information:
1SVD981011-0002
Classifications
Object Classification Code:
B
E-nummer:
3860657
ETIM 4:
EC001444 - Insulation and earth fault monitoring relay
ETIM 5:
EC001444 - Insulation and earth fault monitoring relay
ETIM 6:
EC001444 - Insulation and earth fault monitoring relay
ETIM 7:
EC001444 - Insulation and earth fault monitoring relay
eClass:
7.0 27371807
