Product specific picture:

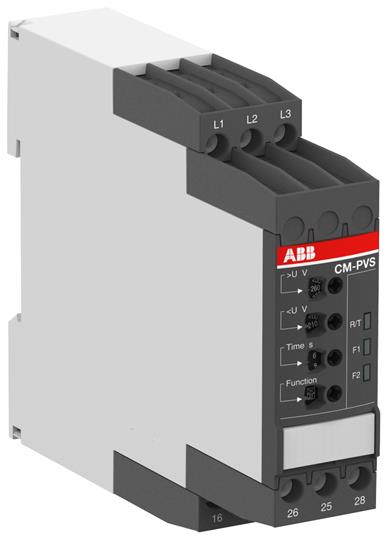

ABB CM-PVS.81 1SVR630794R2300
1.CM-PVS.81 1SVR630794R2300 we sell is 100% New Original Factory packing in good condition and have been tested before they are shipped. We will try our best to avoid any quality problems.
2.We will offer the technical support by experienced staff, which have undergone rigorous testing and certification!
3.We offer 12 month warranty after receiving parcels. If there are some workmanship or material defects with the products, please contact us firstly, we will exchange it or offer other solutions for you to make a choice.
4.If you order more than one item, please contact us, we can offer further discounts for you. And if you find other suppliers offer cheaper prices for the same product, we are also willing to provide you with reference to their price,even further discounts.
E-mail: plcinfo@mooreplc.com
CM-PVS.81 1SVR630794R2300
Manufacturer(s)
ABB
General Information
Extended Product Type:
CM-PVS.81P
Product ID:
1SVR740794R2300
EAN:
4016779876490
Catalog Description:
CM-PVS.81P Three-phase monitoring relay 2c/o, 0,0,1-30s, L1-L2-L3=3x200-400VAC
Long Description:
The CM-PVS.81P relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 200-400 V AC and has a 2 c/o output with contacts rated at 250 V / 4 A. The CM-PVS.81P monitors the phase parameters over/undervoltage and phase failure. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Popular Downloads
Data Sheet, Technical Information:
2CDC112202D0201
Instructions and Manuals:
1SVC730510M0000
Dimensions
Product Net Width:
22.5 mm
Product Net Depth / Length:
103.7 mm
Product Net Height:
85.6 mm
Product Net Weight:
0.128 kg
Technical
Function:
Phase failure detection
Phase sequence monitoring
Over- and undervoltage monitoring
Standards:
EN 50581
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
Measuring Range:
(L-L) 200 ... 400 V AC
Rated Control Supply Voltage (Us):
(L-L) 200 ... 400 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
2 c/o (SPDT) contacts
Time Range:
200 ms start-up delay
0 s or 0.1-30 s tripping delay (ON or OFF)
Terminal Type:
Screwless Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 6 kV
Output Circuit 4 kV
Degree of Protection:
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
30000000 cycle
Connecting Capacity:
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:
8 mm
Mounting Position:
Any
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Environmental
Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
RoHS Status:
Following EU Directive 2011/65/EU
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Certificates and Declarations (Document Number)
CCC Certificate:
CCC_2009010303326655
cULus Certificate:
cULus508_20120829-E140448
Declaration of Conformity - CE:
1SVD981014-0002
EAC Certificate:
EAC_RU_C-DE.ME77.B.01012
Environmental Information:
1SAA981020-2401
Instructions and Manuals:
1SVC730510M0000
RMRS Certificate:
RMRS_1740020250
RoHS Information:
1SVD981014-0002
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
97 mm
Package Level 1 Height:
109 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Gross Weight:
0.153 kg
Package Level 1 EAN:
4016779876490
Classifications
Object Classification Code:
B
E-nummer:
3860604
ETIM 4:
EC001441 - Phase monitoring relay
ETIM 5:
EC001441 - Phase monitoring relay
ETIM 6:
EC001441 - Phase monitoring relay
ETIM 7:
EC001441 - Phase monitoring relay
eClass:
7.0 27371803
Additional Information
Collects Signal Values from the Flame Detector
The FAU810 analyzes the signals generated from the Flame Detector.
Calculates Signal Quality
The FAU810 measures the quality of the signal to provide an indication of changes in the burner flame.
Quality values act as a barometer, forecasting when a burner flame-out is likely to occur. This can help you to anticipate changes and problems.
Continuously Detect Faults
The instrument automatically monitors the electronic components of the Flame Detector and FAU810 unit to detect
system problems or faults.
Signals Unsafe Conditions
A no-flame condition occurs when the FAU810 logic determines that an unsafe condition exists.
