Description：

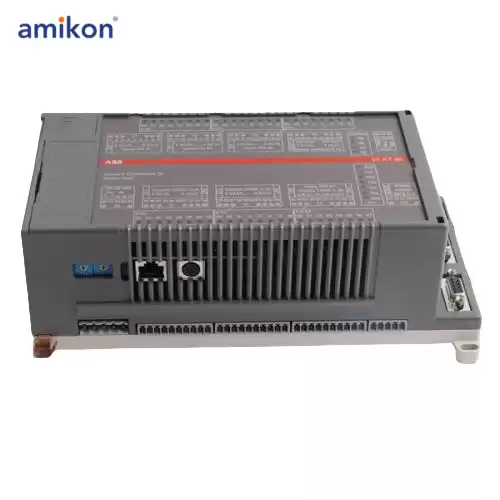

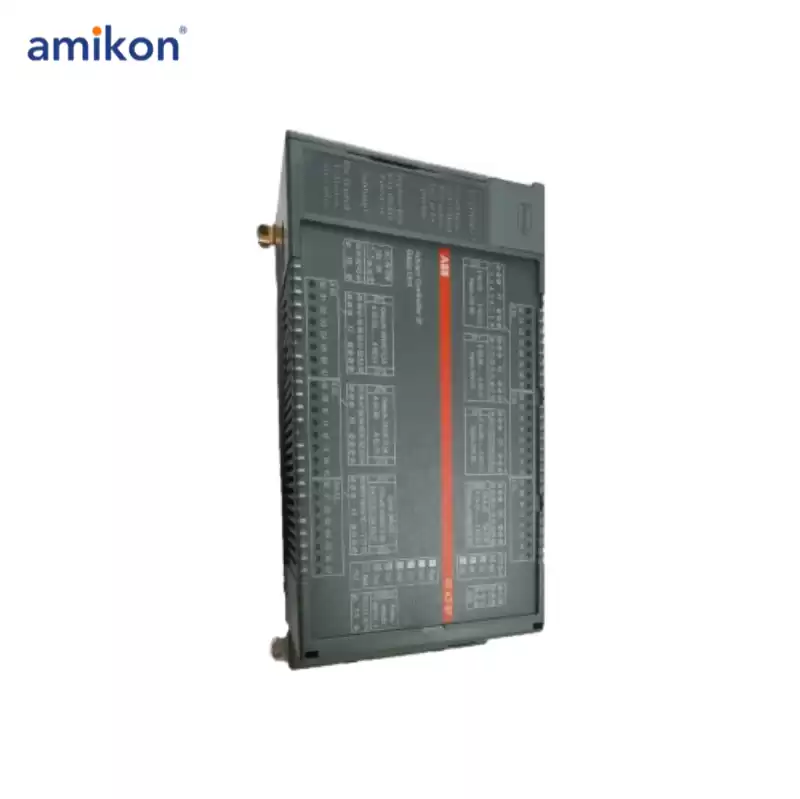

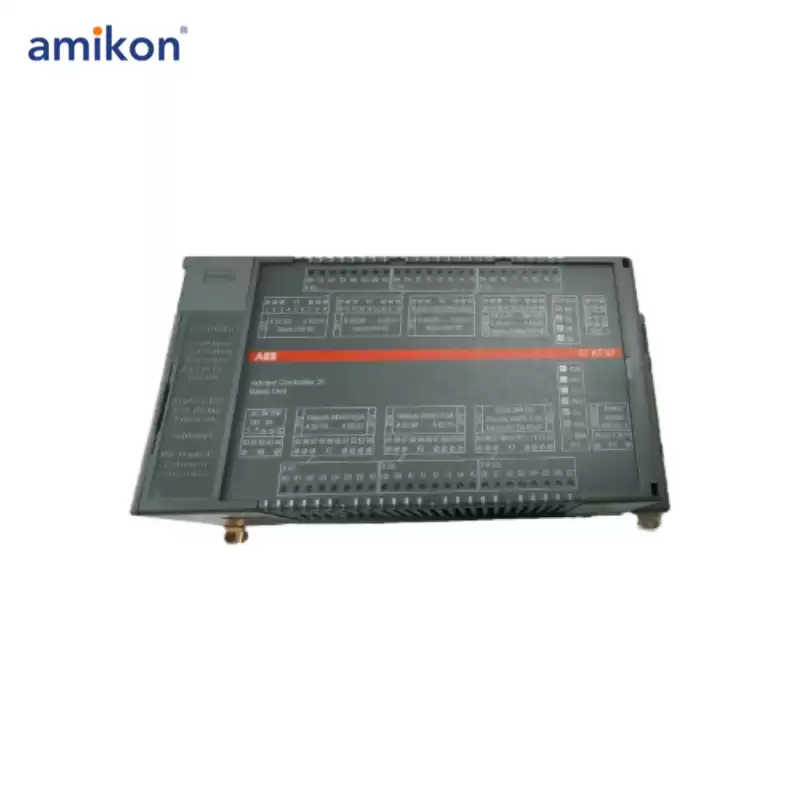

The ABB 07KT98 WT98 GJR5253100R0270 is an Advant Controller Module from ABB, a leading provider of power and automation technologies. It is a basic unit that supports communication over Ethernet, enabling connection to other devices and networks. This module is part of the ABB Advant Controller 31 series, designed for industrial automation applications.
Additional Information:
ABB Type Designation:07KT98 WT98
Ambient Air Temperature:Operation 0 ... +55 °C
Storage -25 ... +75 °C
Analog Inputs:8 channels, 0 ... +5V, -5 ... +5V, 10 bit +sign, 0 ... +10V, -10 ... +10V, 11 bit+sign, 0 ... 20mA, 4 ... 20mA, PT100 (2 or 3 wire), 12 bit, bipolar, the analog inputs are also usable as digital inputs
Analog Outputs:4 channels, -10 ... +10V, 11 bit+sign, 0 ... 20mA, 12 bit
CS31-Bus:1
Fieldbus Interface Type:Ethernet TCP/IP
Frame Size:Spare_Parts
Gross Volume:5.775 dm³
Gross Weight:1.62 kg
Invoice Description:
Maximum Hardware Counter Input Frequency:50 kHz
Maximum Number of Analog I/Os:232 AI, 224 AO
Maximum Number of Digital I/Os:1040
Memory Size User Data:1000 kB
Memory Size User Program:1000 kB
Memory Type User Data:Flash EPROM
