| Manufacture |
ABB |
| Model |
CP410M |
| Product ID |
1SBP260181R1001 |
| Catalog |
IGCT/IGBT modules |
| Description |
CP410M 1SBP260181R1001 Control Panel |
| Country of Origin |
United States(US) |
| Dimension |
20mm*20mm*15mm |
| Weight |
0.65kg |

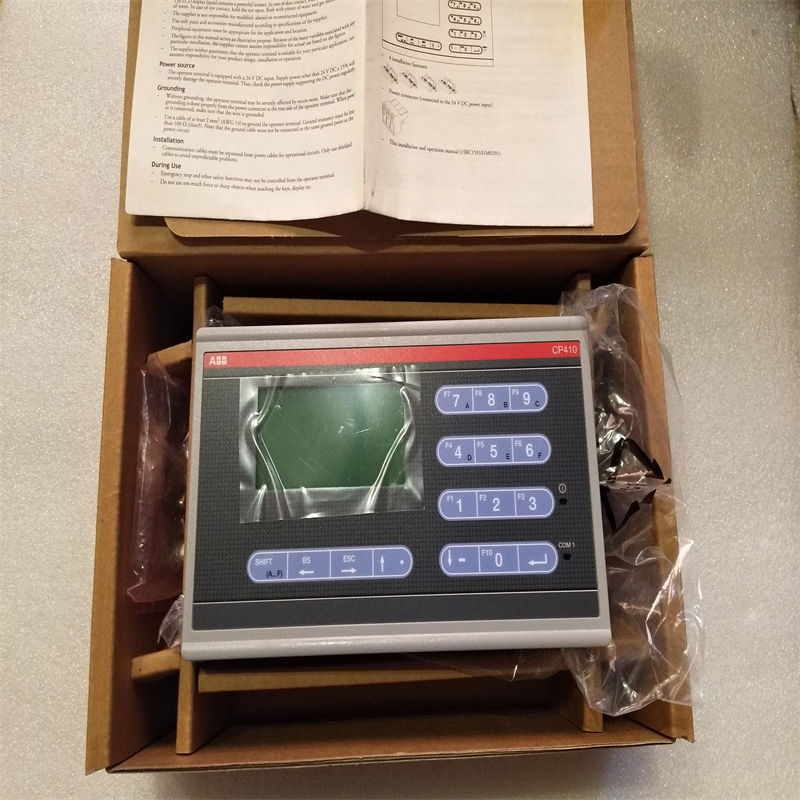

The CP410 is a Human Machine Interface (HMI) with a 3" STN Liquid Crystal Display, and is water- and dust-resistant according to IP65/NEMA 4X (indoor use only).
CP410 is CE-marked and meets your need to be highly transient-resistant while in operation.
Also, its compact design makes connections with other machinery more flexible, thus achieving the optimal performance of your machines.
CP400Soft is used to design applications of CP410; it is reliable, user-friendly and compatible with many models.
Keypad specifications:16 mechanical switches. Lifetime of each switch is over 500,000 activations. Membrane overlay is resistant to most solvents and chemicals.
Display:Mono STN LCD.160 x 80 pixels, black/white with 16 gray levels. Yellow-green LED backlight.
Lifetime: approximately 50,000 h.
-
Quality
100% brand new and original
All the goods will be tested before shipment.
-
Warranty
Topteng offers a 12-month warranty from the date of delivery
In the event of non-conforming product (if damaged or incorrect product is received),
Any nonconformity must be reported within 7 days of receipt of goods.
-
Delivery Time
For the in stock items, we will send the order out within 5-7 days after receive the payment.
We can shipping all over the world via DHL,UPS,Fedex and EMS
