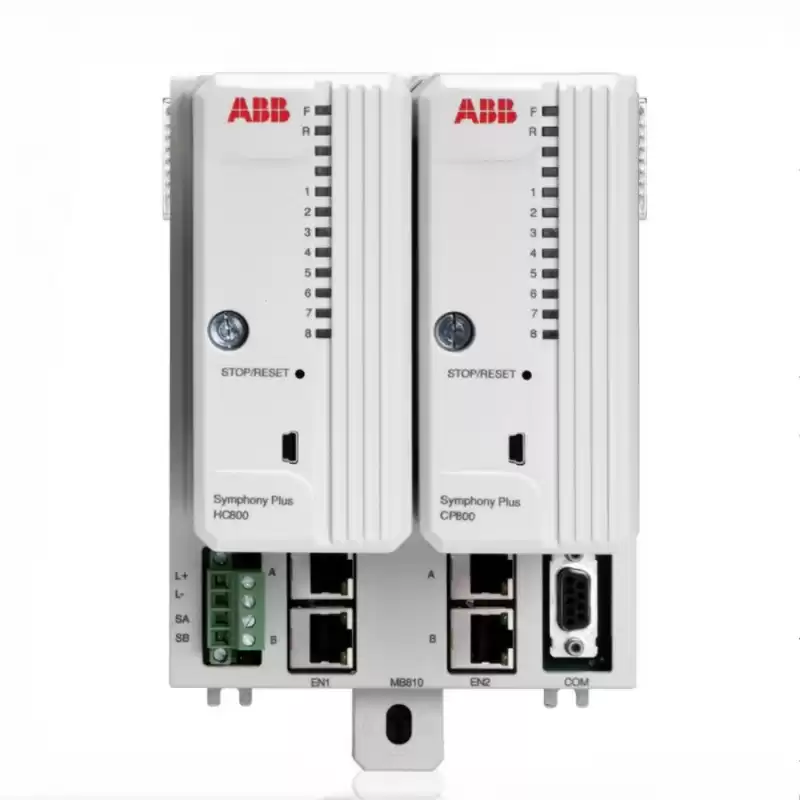

CP800 Communication Processor Module
- 64 MB DRAM, 4 MB ROM
- Provides communication between HC800 and PN800 (Ethernet-based plant network)
Functional Description
The CP800 is a Communication Processor Module, manufactured and designed by ABB as part of the SD Series controller used in the ABB Symphony Plus system.
The HPC800 is the latest in a long line of field-proven process controllers. Based on a 256 MHz, 32-bit Freescale Coldfire processor, the HPC800 controller can be adapted to a broad spectrum of applications and process requirements. Configured by S+ Engineering tool, the HPC800 features an extensive library of more than 150 pre-defined control algorithms or function codes (figure 3). These functions provide the ability to easily design complex control strategies to fi t any control application, including continuous, sequential, batch and advanced control. In addition to standard function blocks, the HPC800 supports C programming, batch, and user defined function codes.
Features
− Simultaneous support for SD Series I/O, Harmony Rack I/O, and S800 I/O subsystems
− Execution of closed loop control of more than 5,000 I/O in less than 250 msec.
− Downloadable firmware
− Extended user configuration memory (NVRAM) and runtime memory (RAM)
− Support for 30,000 function blocks
− Flexible and online configuration capability
− Support for up to 8 segment tasks, each segment supporting execution cycle time down to 1 msec
− Dedicated redundant peer-to-peer controller communication bus supports update rates less than 100 msec
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
CP800 |
| Ordering Information |
CP800 |
| Product Catalog |
Symphony Plus |
| Description |
Communication Processor Module |
| Voltage |
24 Vdc |
| Current |
200 mA |
| Dimensions |
243.84 mm x 73.66 mm x 170.18 mm |
| Weight |
0.99 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
