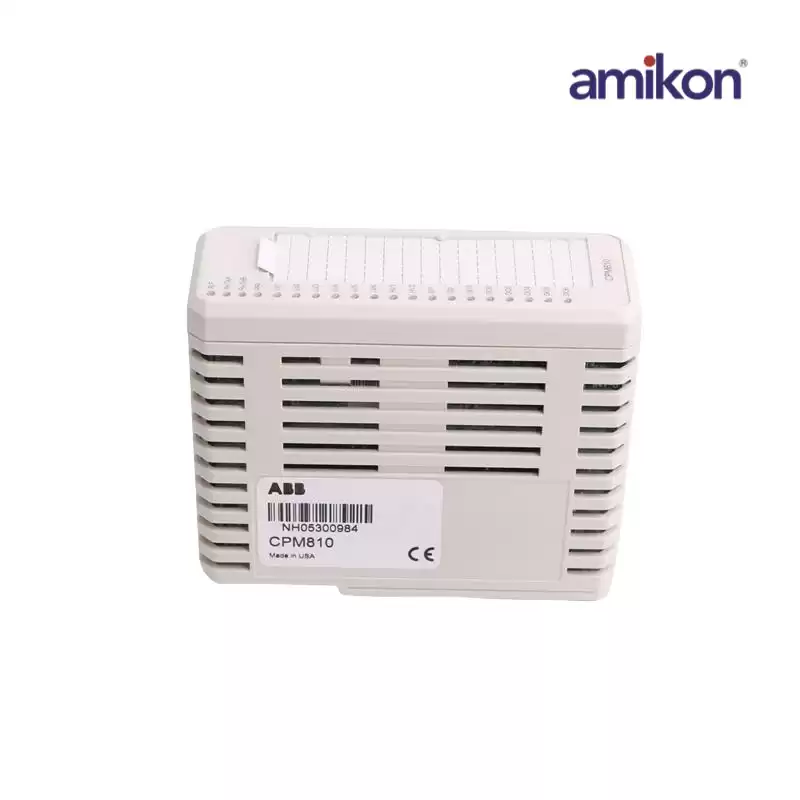

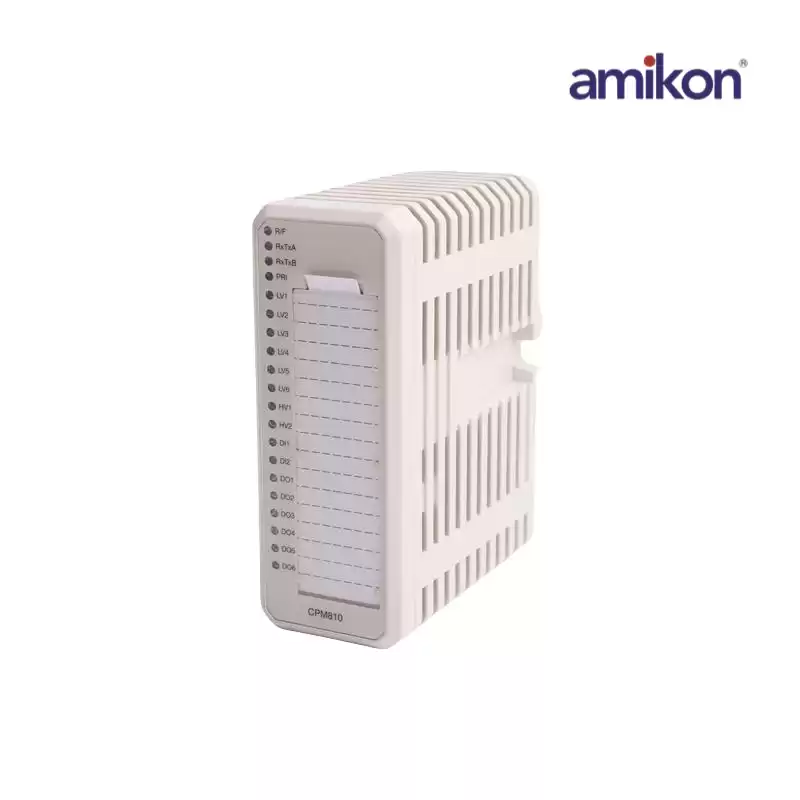

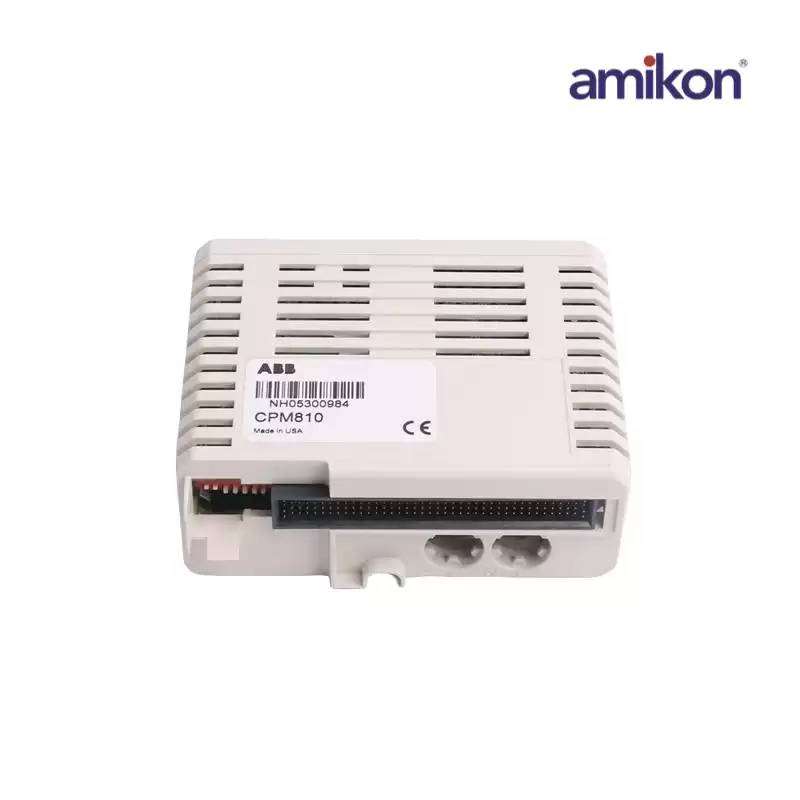

ABB CPM810 Common Processor Module
|
|
Dimensions ：
|
25.8mx4.5cm17.3cm
|
Weight：
|
0.26KG
|
|
The CPM810 is Common Processor Module.The Motherboard for the Inverter Unit (INU) are mounted on a doorthat can be opened for access to other components mounted insidethe INU.The Power Supply Card A3 is mounted on the back of thedoor.
|
|
All the connections to the door mounted cards are at the hingeside and the cable routing is such that the flexing of the cables isminimized by having them run parallel to the hinge. Located on theback panel is the A4 Pulse Amplifier Card.The Pulse Amplifier Cardpart number depends on the rating of the Drive.
|
