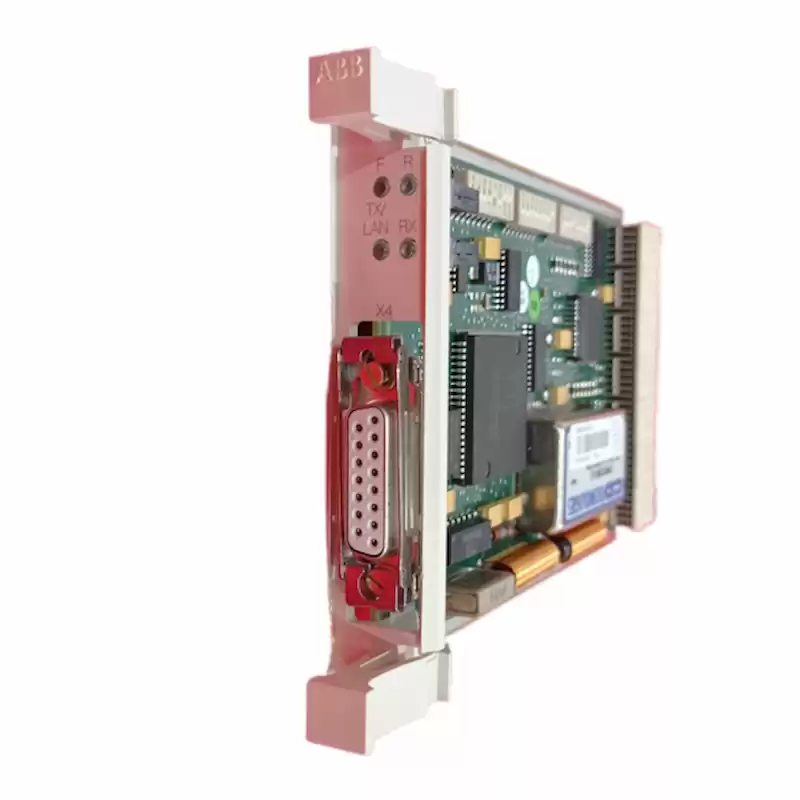

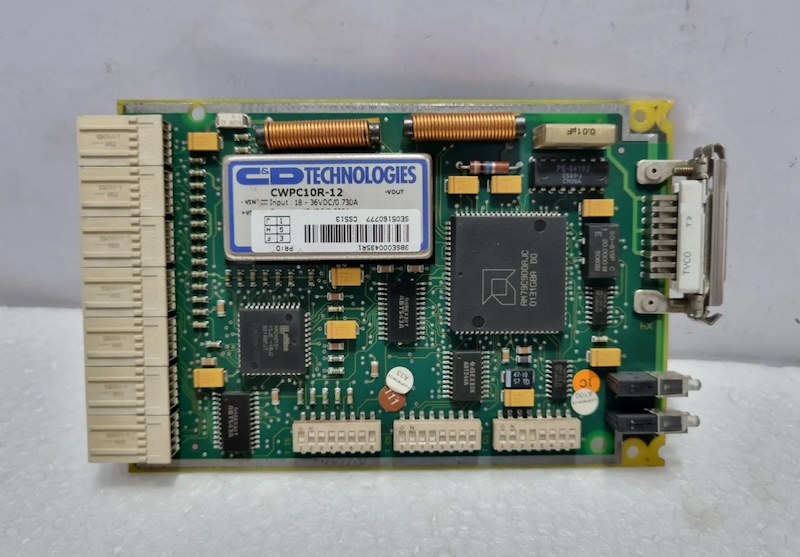

ABB CS513 3BSE000435R1 Communication Module
The data base element MB300/GCOM represents the hardware CS513. CS513 interfaces MasterBus 300 or GCOM, that is Local Network (LAN).
Function
The main functions of the element are:
• to indicate where in the subrack the hardware CS513 is placed.
• to indicate how the dip switches of CS513 are set.
• For GCOM: to define time-out times (“Protocol parameter”).

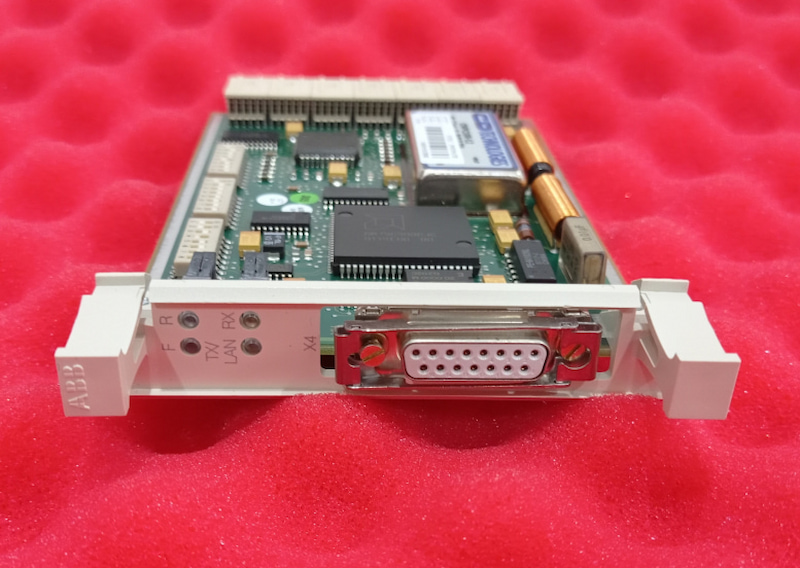

LED indications
| Name |
Defining |
LED color |
| F |
Fault |
Red |
| R |
Run |
Green |
| TXILAN |
Transmit to LAN |
Yellow |
| RX |
Receive from LAN |
Yellow |
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
CS513 |
| Ordering Information |
3BSE000435R1 |
| Product Catalog |
Advant® Controller 400 Series |
| Description |
Communication Module |
| RoHS Status |
Following EU Directive 2011/65/EU |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| Dimension |
234 mm x 18 mm x 108 mm |
| Weight |
0.2 kg |
