Product Description:

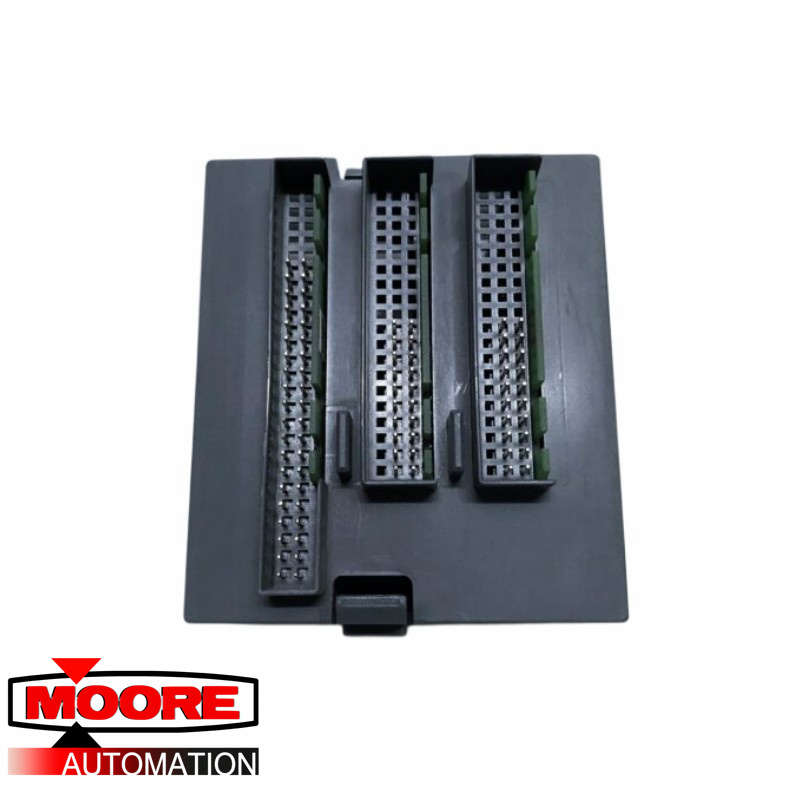

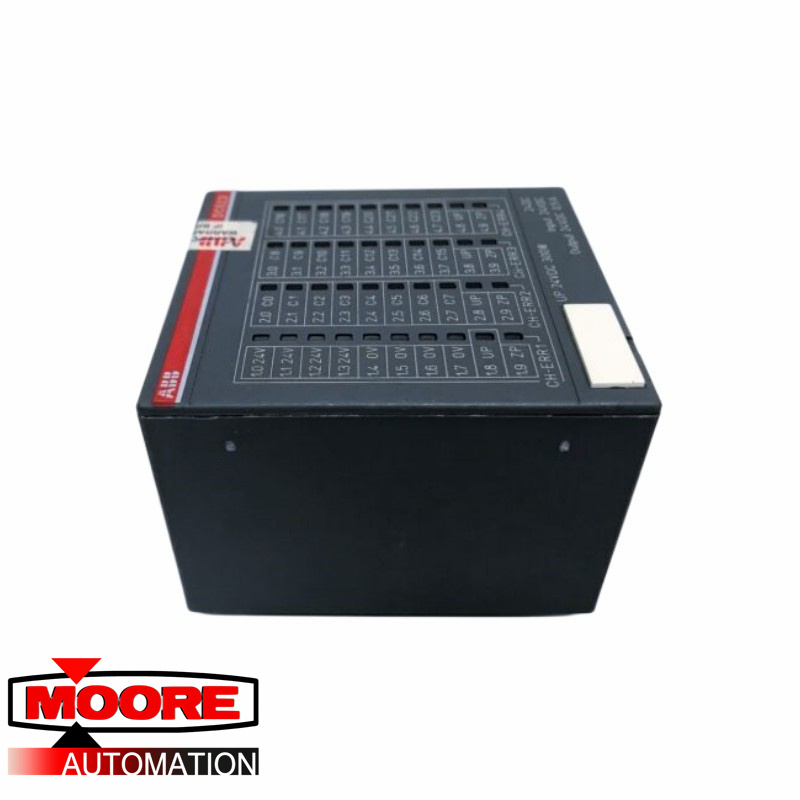

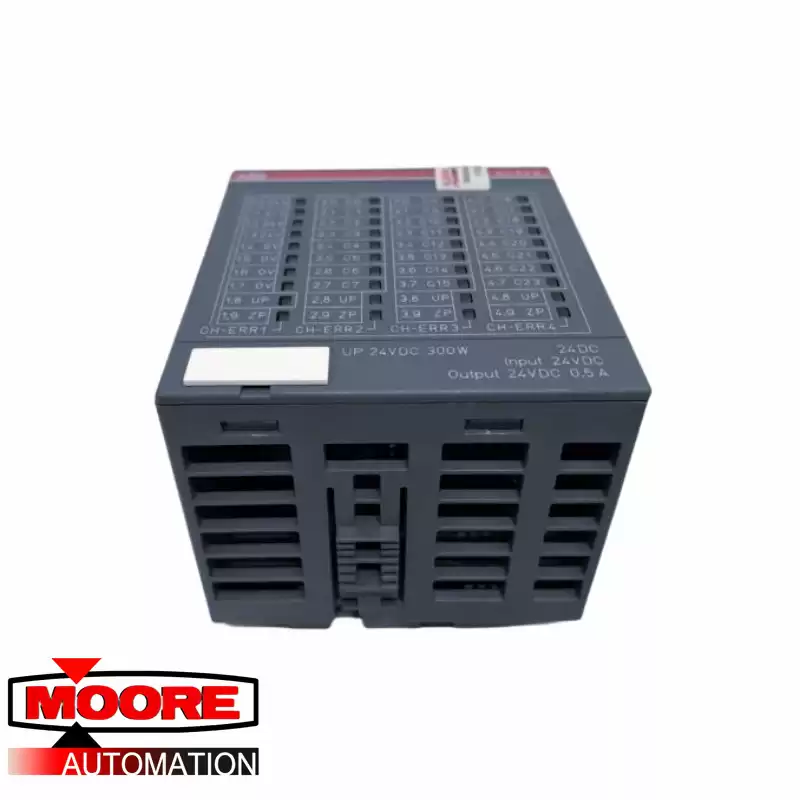

DC523, digital input/output module,
24 DC, 24 V DC / 0.5 A, 1-wire .
● System is limited to max. 2 communication
modules per terminal base
● Applications certified for cULus up to +60 °C
● Digital inputs: maximum number of simultaneously switched on input channels limited to
75 % per group (e.g. 8 channels => 6 channels)
● Digital outputs: output current maximum
value (all channels together) limited to 75 %
per group (e.g. 8 A => 6 A)
● Analog outputs only if configured as
voltage output: maximum total output current per group is limited to 75 %
(e.g. 40 mA => 30 mA)
● Analog outputs only if configured as current
output: maximum number of simultaneously
used output channels limited to 75 % per
group (e.g. 4 channels => 3 channels)
