Product Description:

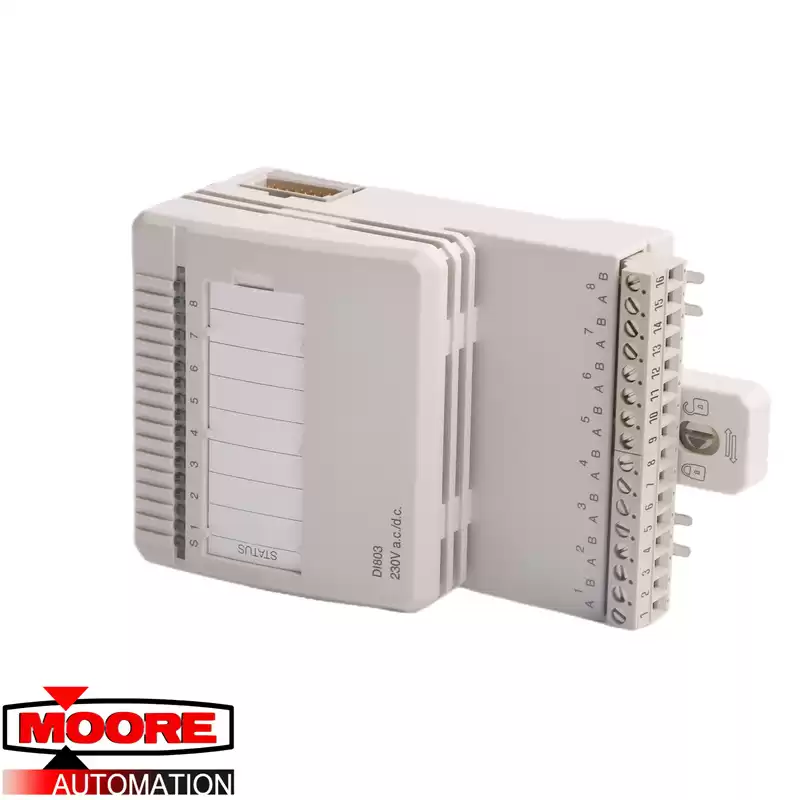

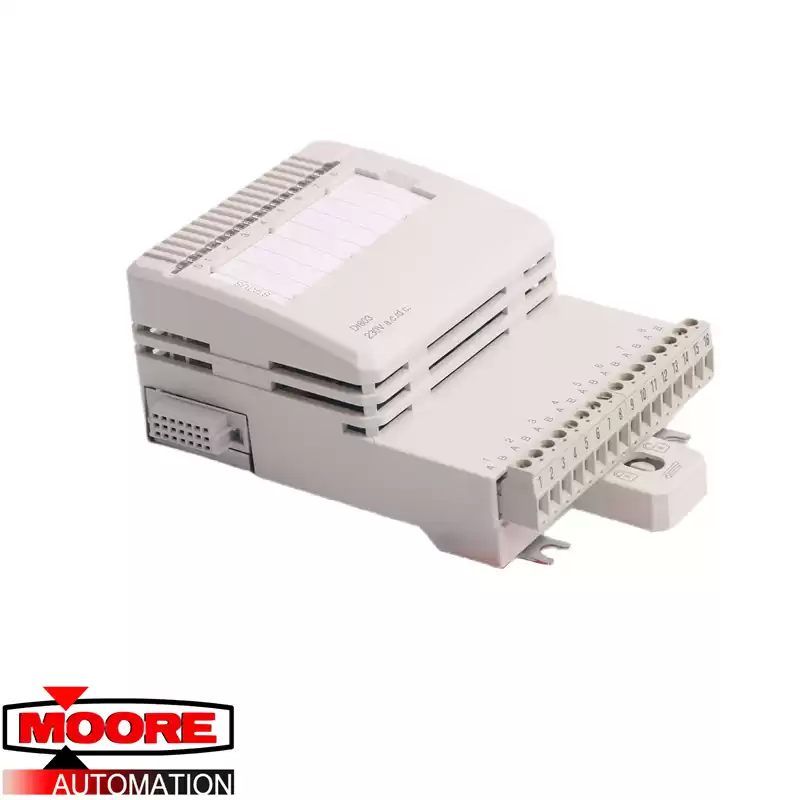

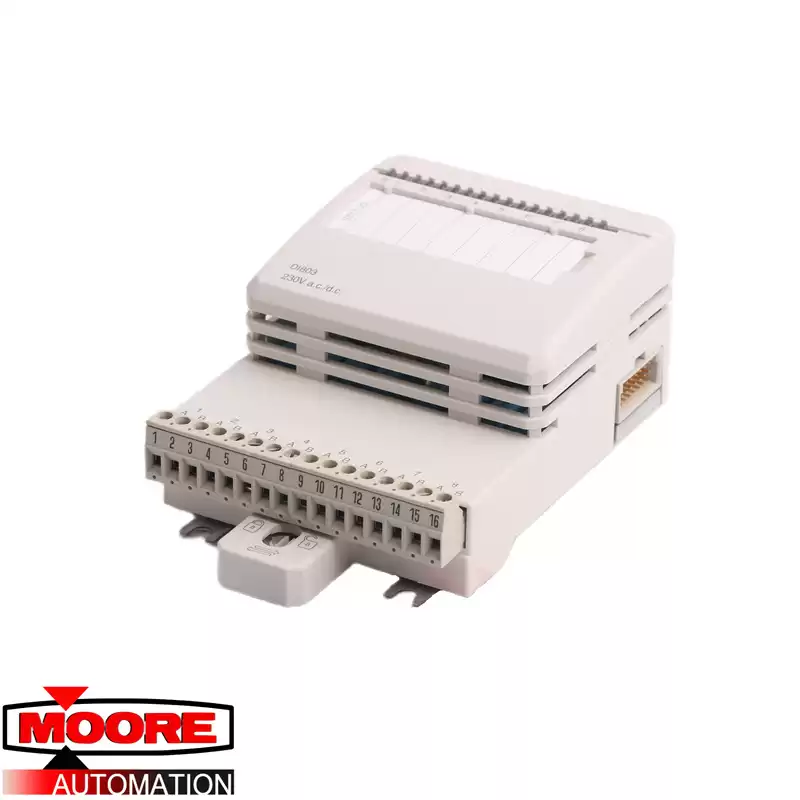

The DI803 Digital Input Module has 8 channels for 230 volt a.c./d.c. digital inputs.
Channel 8 can be used for sensor voltage supervision. Each input channel provides
current limiting, EMC protection, input state LED indicator and optical isolation
from the ModuleBus.
The DI803 is an 8 channel 230 V
a.c./d.c.digital input module for the
S800 I/O. This module has 8 digital
inputs. The a.c. input voltage range
is 164 - 264 volt and the input
current is 7.6 mA at 230 V a.c.
The d.c. input range is 175 - 275 V
and the input current is 1.6 mA at
220 V. The inputs are individually
isolated.
