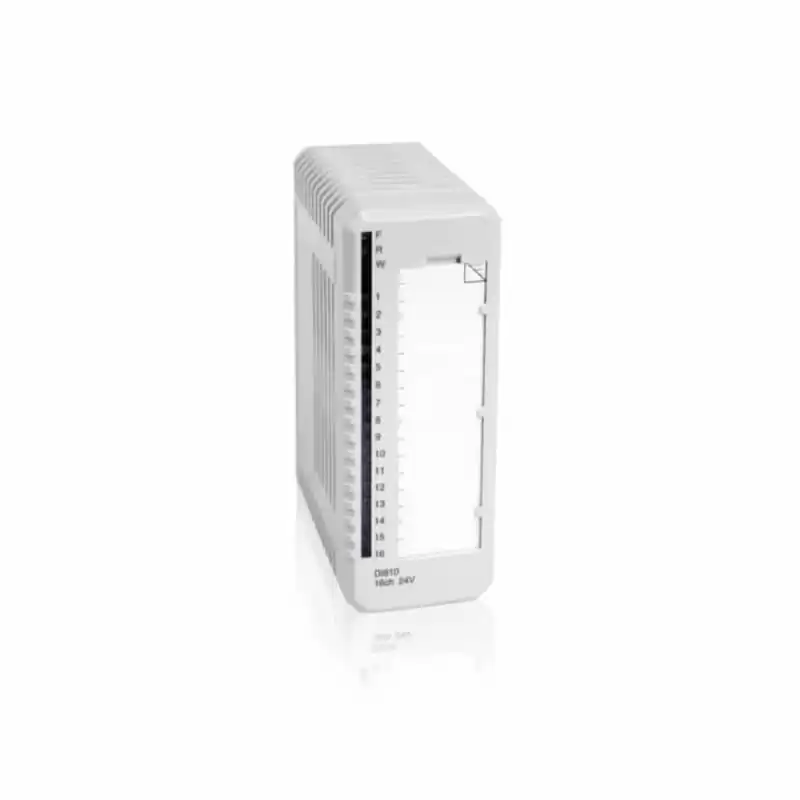

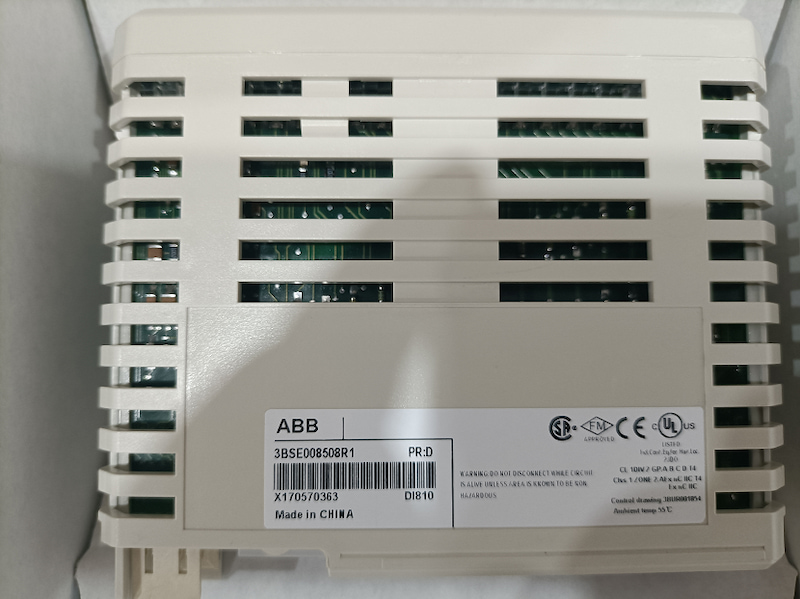

ABB DI810 3BSE008508R1 Digital Input Module 24V 16 ch
This module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.
Features and benefits
· 16 channels for 24 V d.c. inputs with current sinking
· Two isolated groups of 8 with voltage supervision
· Input status indicators
Technical Specifications
| Article number |
3BSE008508R1 |
| Type |
Digital Input |
| Signal specification |
24 V d.c. |
| Number of channels |
16 |
| Signal type |
Current sinking |
| HART |
No |
| SOE |
No |
| Redundancy |
No |
| High integrity |
No |
| Intrinsic safety |
No |
| Mechanics |
S800 |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
