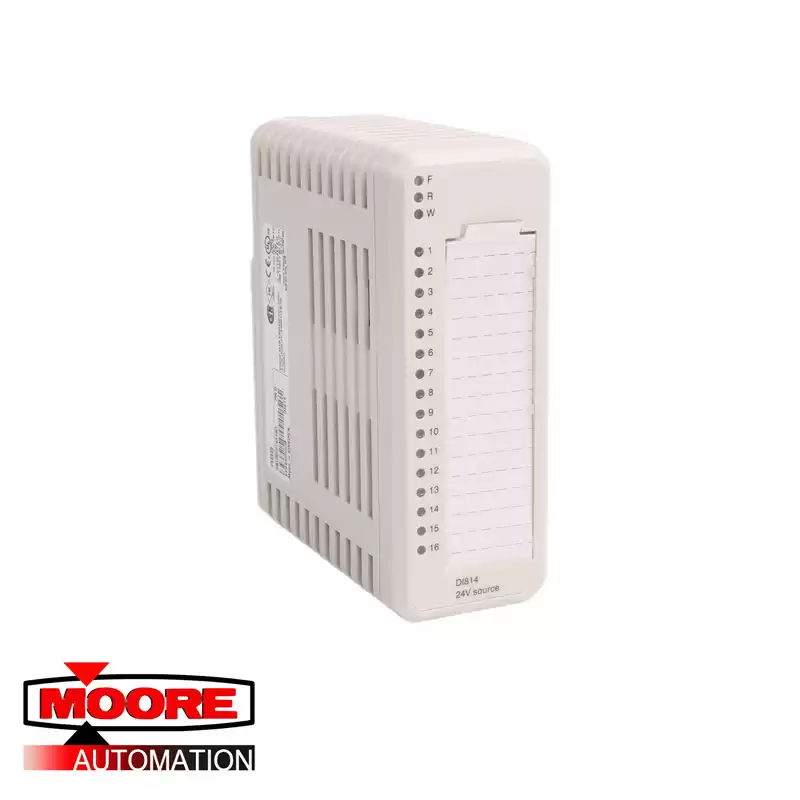

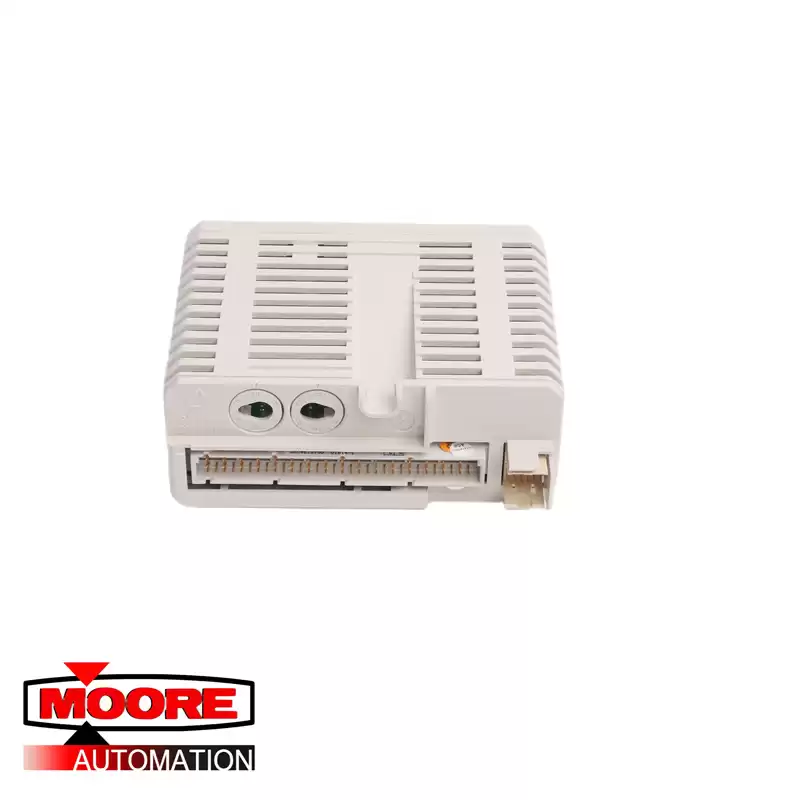

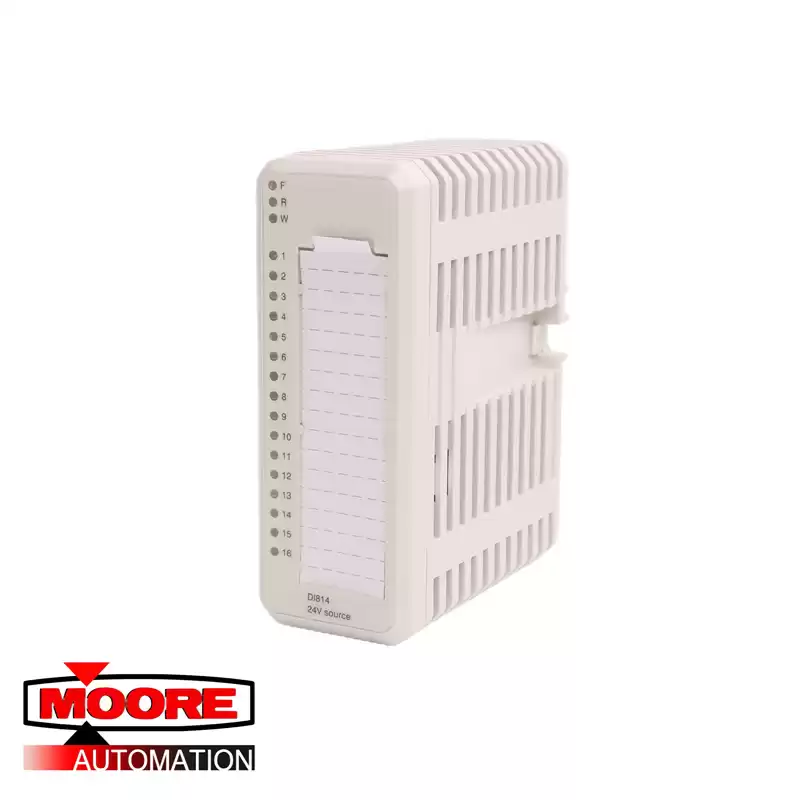

Product Description:
The inputvoltage range is 18 to 30 volt dc and the input current
source is 6 mA at 24 V. The inputs are divided into two individually
isolated groups with eight channels and one voltage supervision
inputin each group. Everyinput channel consists of currentlimiting
components, EMC protection components, input state indication
LED and optical isolation barrier. The process voltage supervision
input give channel error signals if the voltage disappears. The error
signal can be read through theModuleBus.
-16 channels for 24 V d.c. inputs with current sourcing
-2 Isolated groups of 8 with voltage supervision
-Input status indicators
