Technical Specifications for DI830 3BSE013210R1
[Origin]：Sweden
[Status]: Brand New In Stock
[Year of Production]: 2020-2022 availab
[Shipment]: From Xiamen, China to Worldwide
-------------------------------------------------------------
Product Description

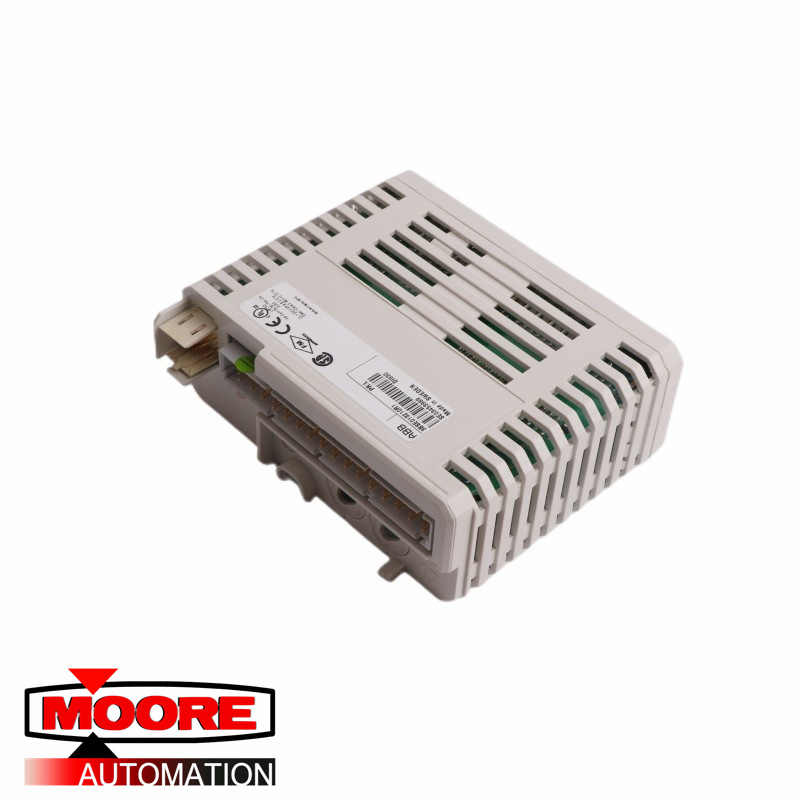

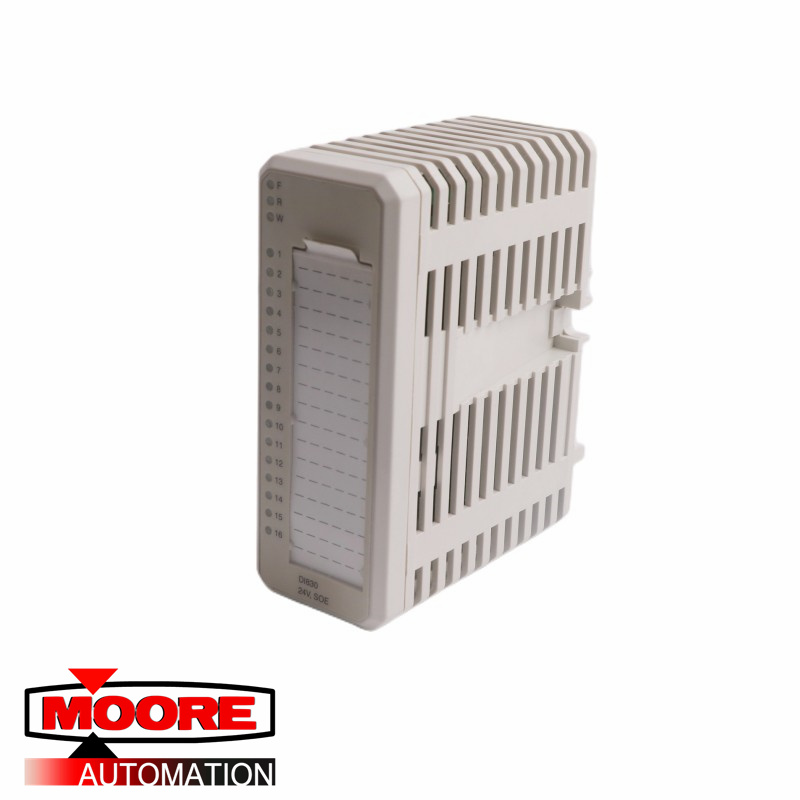

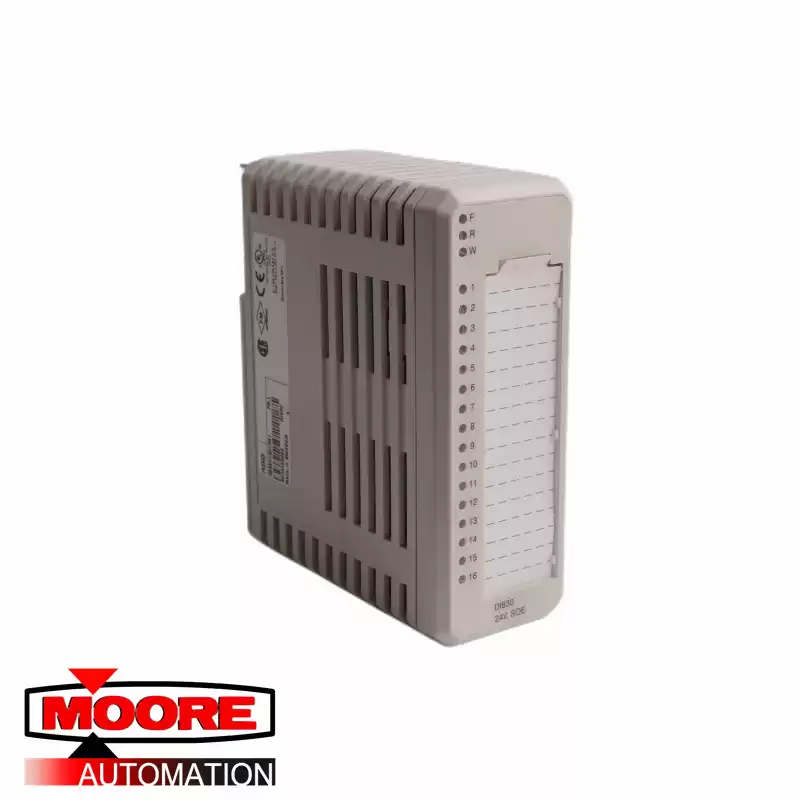

The DI830 Digital Input Module has 16 channels for 24 volt d.c. digital inputs and
sequence of events (SOE) handling capabilities. The sequence of events time stamp
has a resolution of 0.4 ms for each input channel. The inputs are divided into two
isolated groups of eight channels with a voltage supervision input for each group.
Each input channel provides current limiting, EMC protection, input state LED
indicator and optical isolation from the ModuleBus.
The DI830 is a 16 channel 24 V d.c. digital input module for the S800 I/O. The input voltage range is 18 to 30 V d.c. and the input current is 6 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include:
• Process power supply supervision (results in a module failure, if detected).
• Event queue full.
• Time synchronization missing.
