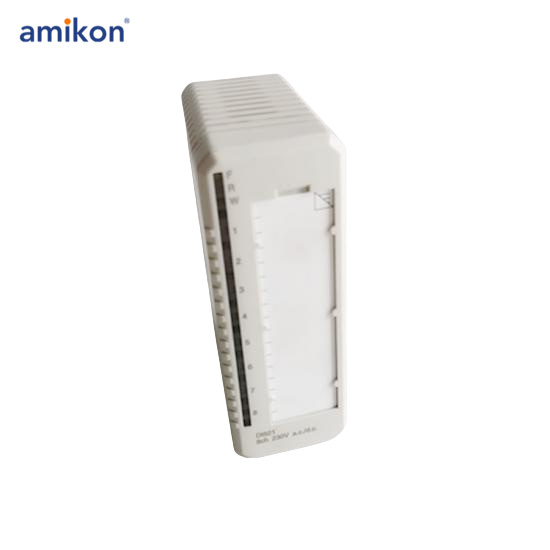

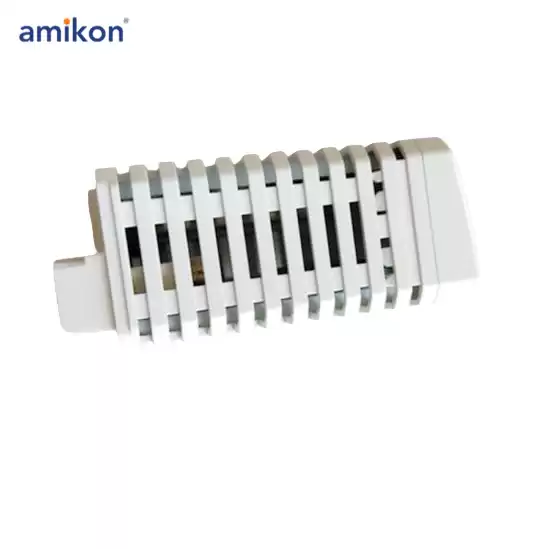

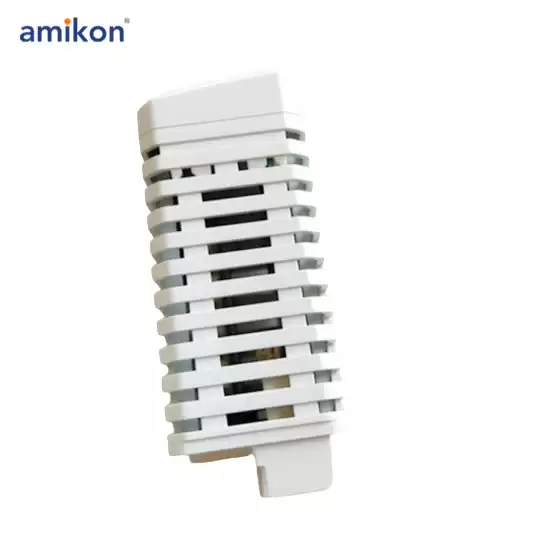

ABOUT DI825 3BSE036373R1:
The DI825 is an 8 channel 125 V d.c. digital input module for the S800 I/O. The input range is 71 - 150 V and the input current is 3.0 mA at 125 V. The inputs are individually isolated.
Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier. Channel 1 can be used as voltage supervision input for channels 2 - 4, and channel 8 can be used as voltage supervision input for channels 5 - 7.
If the voltage supervision is used and the voltage connected to channel 1 or 8 disappears, the channel error will be set for the channels and the Warning LED turns on. The error signal can be read from the ModuleBus.
Features and benefits:
8 channels for 125 V d.c. inputs
Individually isolated channels
Input status indicators
Sequence of event (SOE) functionality
Signal filtering
General info:
Article number:3BSE036373R1
Type:Digital Input
Signal specification:125 V d.c.
Number of channels:8
Signal type:Current sinking
Detailed data:
Input voltage range, "0":0 .. 20 V
Input voltage range, "1":71 .. 156 V
Input impedance:41.5 kΩ
Isolation:Individually isolated channels
Filter times (digital, selectable):0...100 ms
Current limiting:Sensor power can be current limited by the MTU
Maximum field cable length:600 meters (656 yards)
Event recording accuracy:-0.25 ms...1.0 ms
Event recording resolution:0.4 ms
Rated insulation voltage:250 V
Dielectric test voltage:2300 V a.c. Ch - Ground, 1350 V a.c. Ch - Ch
Power dissipation:Max. 4.9 W
Current consumption +5 V Modulebus:Max. 90 mA
Current consumption +24 V Modulebus:0
Current consumption +24 V external:0
