ABOUT DI831 3BSE013212R1:

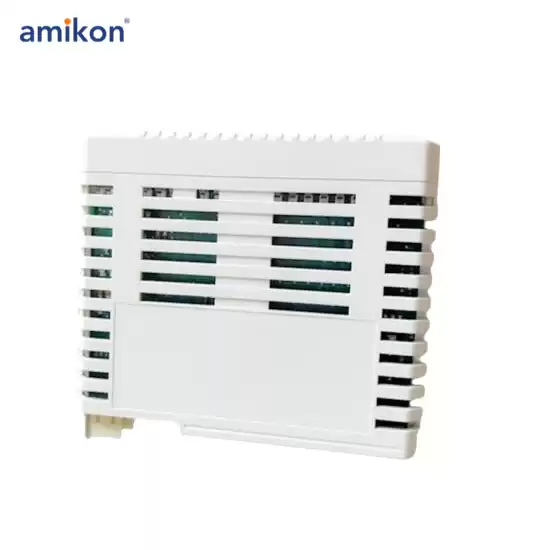

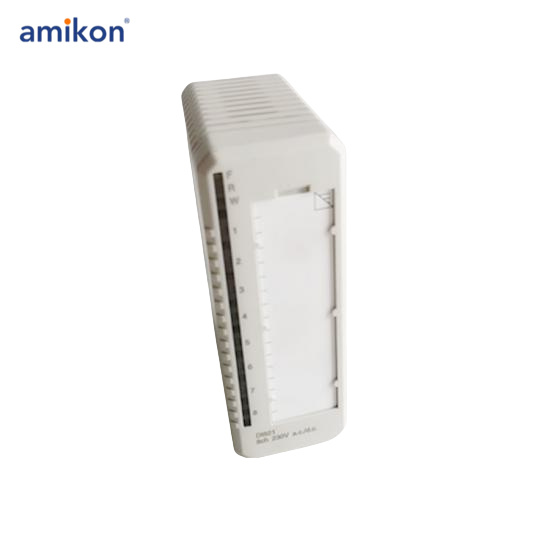

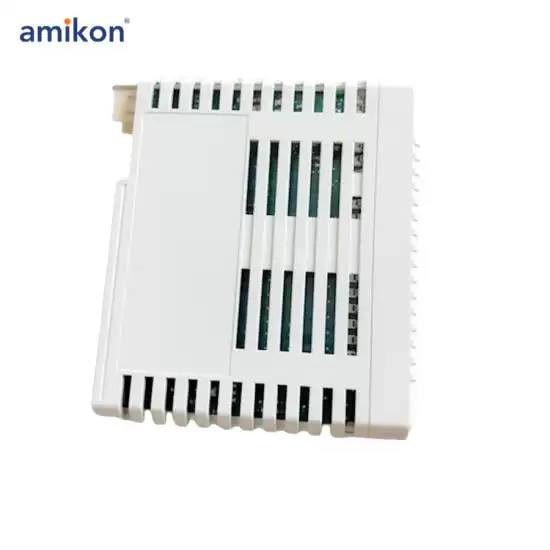

The DI831 is a 16 channel 48 V d.c. digital input module for the S800 I/O. The input voltage range is 36 to 60 V d.c. and the input current is 4 mA at 48 V d.c.). Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include:
Process power supply supervision (results in a module failure, if detected)
Event queue full
Time synchronization missing.
The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out and pulses longer than specified filter time get through the filter.
General info:
Article number:3BSE013212R1
Type:Digital Input
Signal specification:48 V d.c.
Number of channels:16
Signal type:Current sinking
Detailed data:
Input voltage range, "0":-60 .. +10 V
Input voltage range, "1":30 .. 60 V
Input impedance:9.6 kΩ
Isolation Groupwise isolated from ground
Filter times (digital, selectable):0...100 ms
Current limiting:Sensor power can be current limited by the MTU
Maximum field cable:length 600 meters (656 yards)
Event recording accuracy:-0.3 ms...+0.7 ms
Event recording resolution:0.4 ms
Rated insulation voltage:50 V
Dielectric test voltage:500 V a.c.
Power dissipation:Typ. 3.2 W
Current consumption +5 V Modulebus:Typ. 100 mA, Max. 120 mA
Current consumption +24 V Modulebus:0
Features and benefits:
16 channels for 48 V d.c. inputs with current sinking
2 isolated groups of 8 channels with voltage supervision
Input status indicators
Sequence of event (SOE) functionality
Shutter filter
