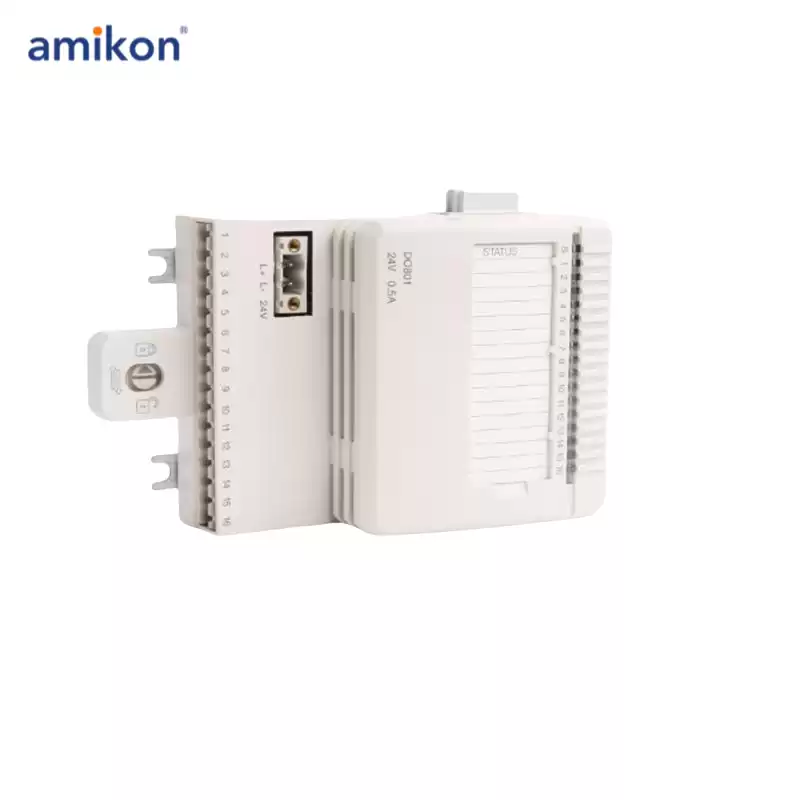

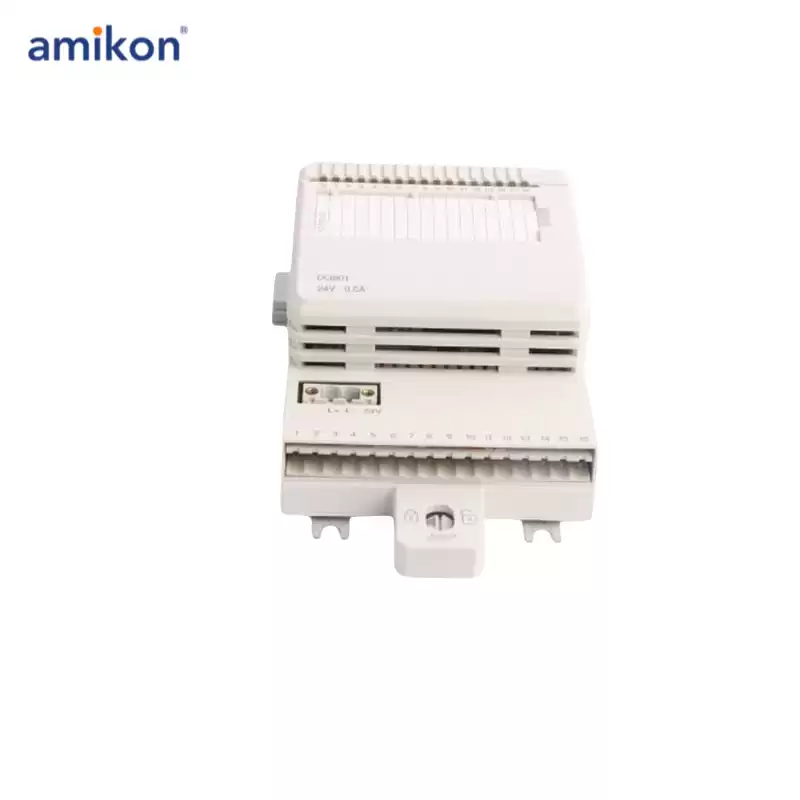

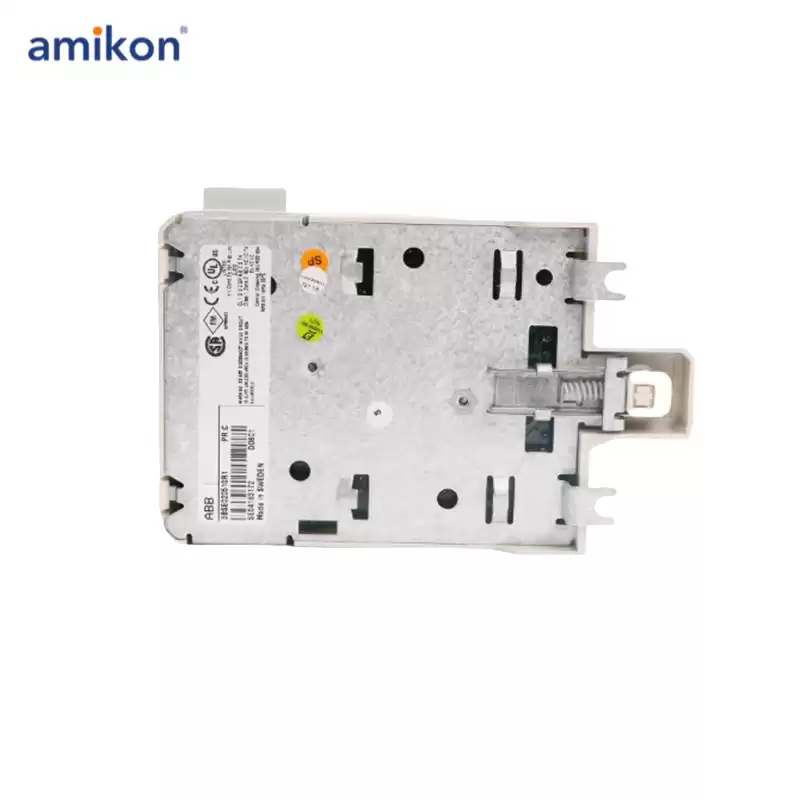

The DO801 is a 16 channel 24 V digital output module for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are in one isolated group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.
General info：
Article number:3BSE020510R1
Type:Digital Output
Signal specification:24 V d.c. (12 - 32 V d.c.), 0.5 A
Number of channels:16
Signal type:Current sourcing, current limiting
Mechanics:S800L
Detailed data：
Isolation:Groupwise isolated from ground
Output load< 0.4 Ω
Current limiting:Short circuit proof current limited output
Maximum field cable length:600 meters (656 yards)
Rated insulation voltage:50 V
Dielectric test voltage：500 V a.c.
Power dissipation：Typ. 2.1 W
Current consumption： +5 V Modulebus80 mA
Features and benefits：
16 channels for 24 V d.c. current sourcing outputs
1 isolated groups of 16 channels
Output status indicators
OSP sets outputs to predetermined state upon communication error
Short-circuit protection to ground and 30 V
Over-voltage and overtemperature protection
Process and power connection via detachable connectors
