ABB DIS801 2PAA123603R1 Digital input for 2-wire, 3-wire and externally powered 4-wire field devices
Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA automation platform. Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O cabinetry ensuring automation projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs the necessary signal conditioning and powering of the connected field device for one I/O channel.

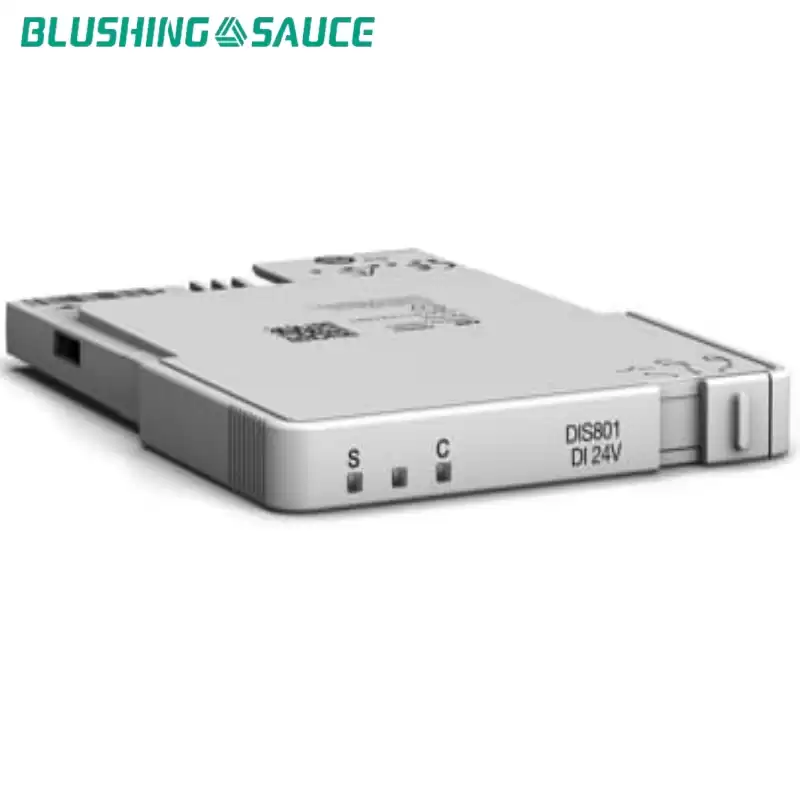

The DIS801 is a Digital Input 24 V Signal Conditioning Module supporting 2/3/4-wire devices with Sequence of Events (SOE).
Email:sean@xmbse.cn
- PRODUCT DETAILS
- Digital input for 2-wire, 3-wire and externally powered 4-wire field devices
- Can be used in hazardous areas
- Field device power output current limited to 35 mA
- Channel to channel galvanic isolation
- Configurable software signal filter 0...100 ms
- Protected against wrong wiring
- Diagnostics:
- Loop supervision (open circuit and short circuit)
- Communication supervision
- Internal power supervision
- Sequence of Events (SoE)
- DIS801 supports both Normally Open (NO) and Normally Closed (NC) 24 V loops
- Single loop granularity - each SCM handles a single channel
- Supports hot swap
- Mechanical locking slider which turns off field device power and/or output before removal
- Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance
- All SCMs have electronic current limitation
- Mechanical keying to prevent insertion of wrong module type after commissioning
- 24V DC powered through Modulebus
- Configurable through parameters
- LED indicators on the SCM indicate the operational state of the module
Tiffany is waiting you
|
Wechat: |
+86 17759070739 |
|
Skype: |
sean |
|
Whatsapp: |
Product Description
|
Part number: |
DIS801 2PAA123603R1 |
Condition: |
Brand New |
|
Manufacture : |
ABB |
Warranty: |
12 months |
|
Origin : |
Made in Sweden |
Weight: |
1 kg |
|
Lead time: |
in stock |
Port of loading: |
Xiamen |
About shipping
1. We will ship the items within 3 working days after the payment is reached.
2. All the goods will be tested before shipment.
3. Packing in professional anti-static bag.
4. We can ship to you by DHL/UPS/EMS/Fedex... Pls contact us directly
and we will ship as your requirement.
