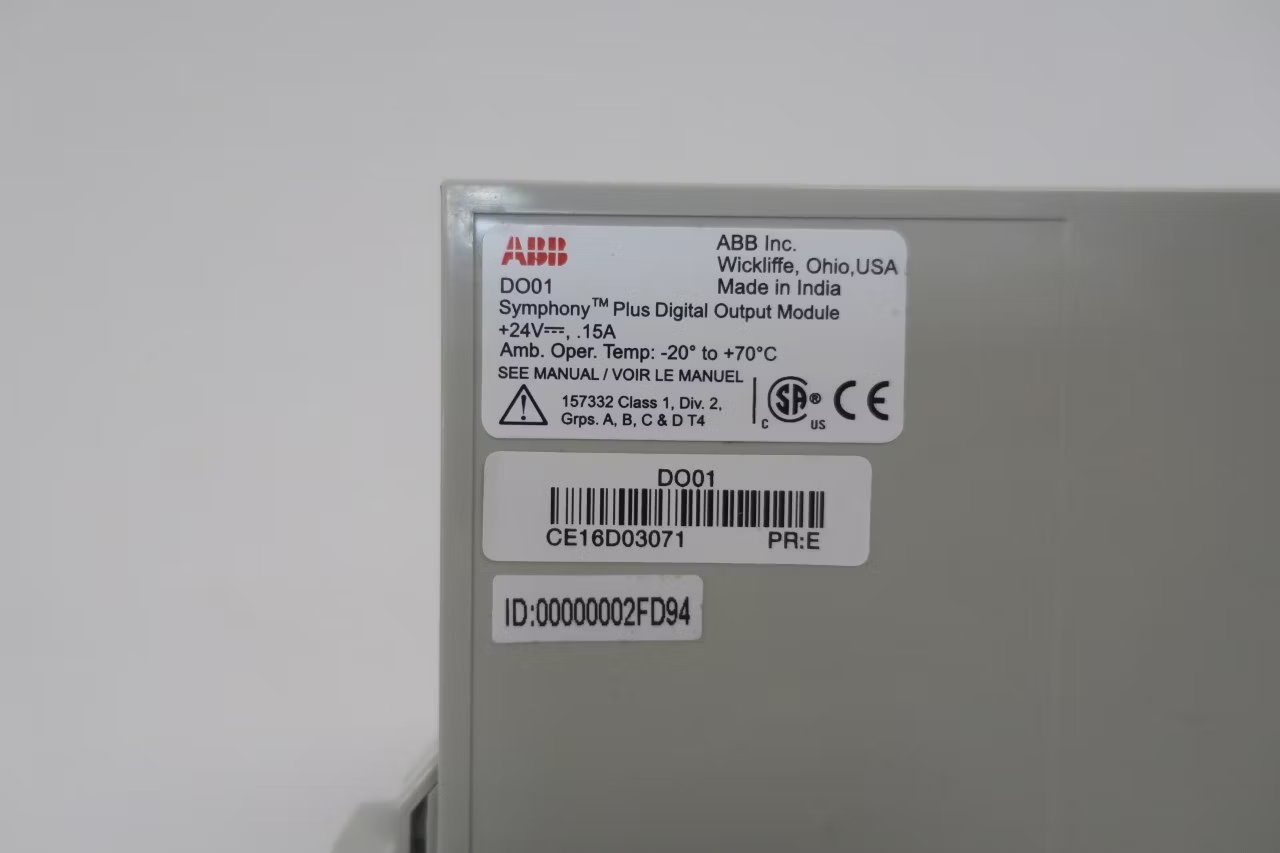

ABB DO01 Digital Output Module
SD Series I/O modules
The DO01 digital output module provides up to 16, CH-2-CH isolated transistor type, 24 to 48 VDC output signals. The open-collector outputs of the module are capable of sinking or sourcing up to 250 mADC.
FC 221 (I/O Device Definition) sets DO module operating parameters and each output channel is configured using FC 225 (Digital Output CH) to set indivdual output channel parameters such as alarm state setting, default state on loss of communication with controller, etc.
Features and benefits
· 16 individually CH-2-CH isolated DI channels supporting
· 24 to 48 VDC Transistor Type DO signals
· Module can sink or source up to 250 mADC I/O current

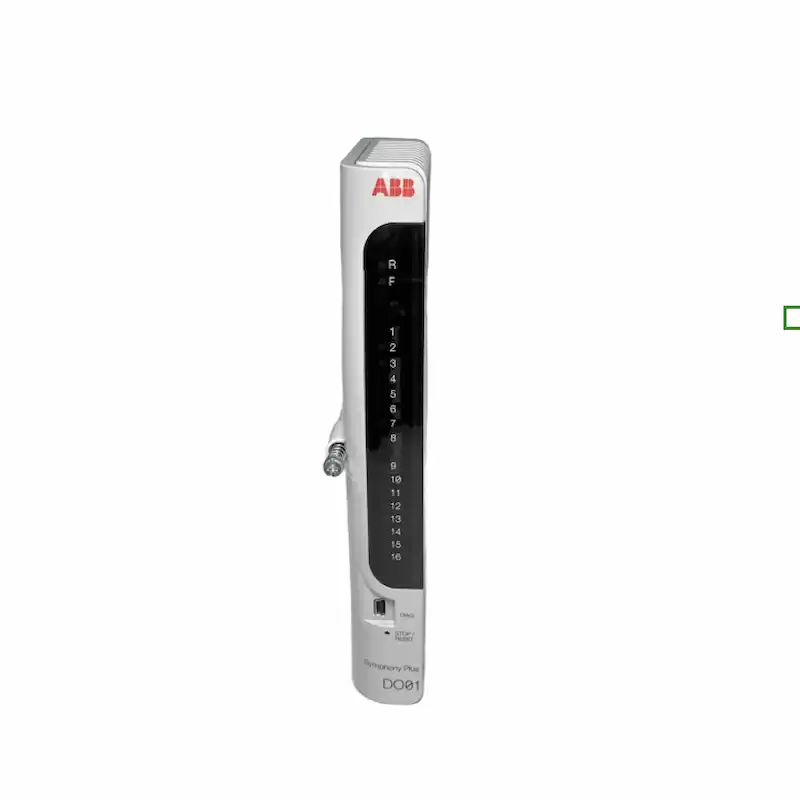

· Input Status LEDs on module front plate
· Galvanic isolation of 1500 V for up to 1 minute
Technical data
| Article number |
DO01 |
| Type |
Digital Output |
|
Power requirements
|
24 VDC +12%, -10% at 65 mA typical, 73 mA max.
|
|
Digital output channels
|
16 independently configured channels
|
|
- Ambient range 1
|
24 VDC, 250 mA per channel
|
|
- Ambient range 2
|
48 VDC, 125 mA per channel
|
|
Ambient temperature
|
-20 °C to 70 °C (-4 °F to 158 °F). Tested according
to IEC/EN 60068-2-1, IEC/EN 60068-2-2
|
|
Service port
|
1 mini-USB port
|
|
Dimensions (with base)
|
51mm width, 190 mm height, 138 mm depth
( 2 in. width, 7.48 in. height, 5.43 in. depth)
|
| Weight |
0.4 kg |
