General info
|
|
MODLE
|
DO801 3BSE020510R1
|

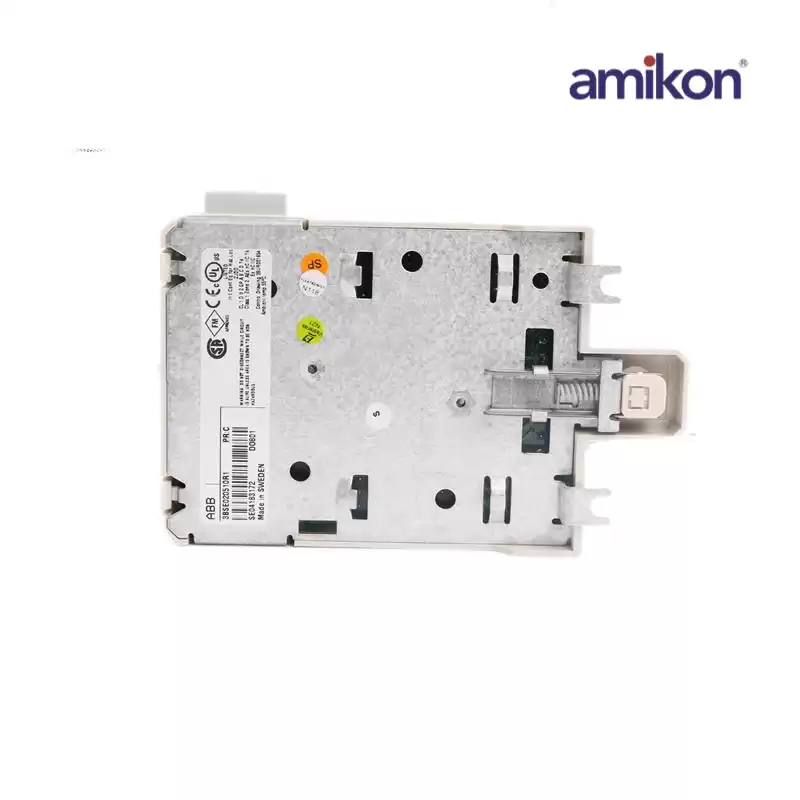

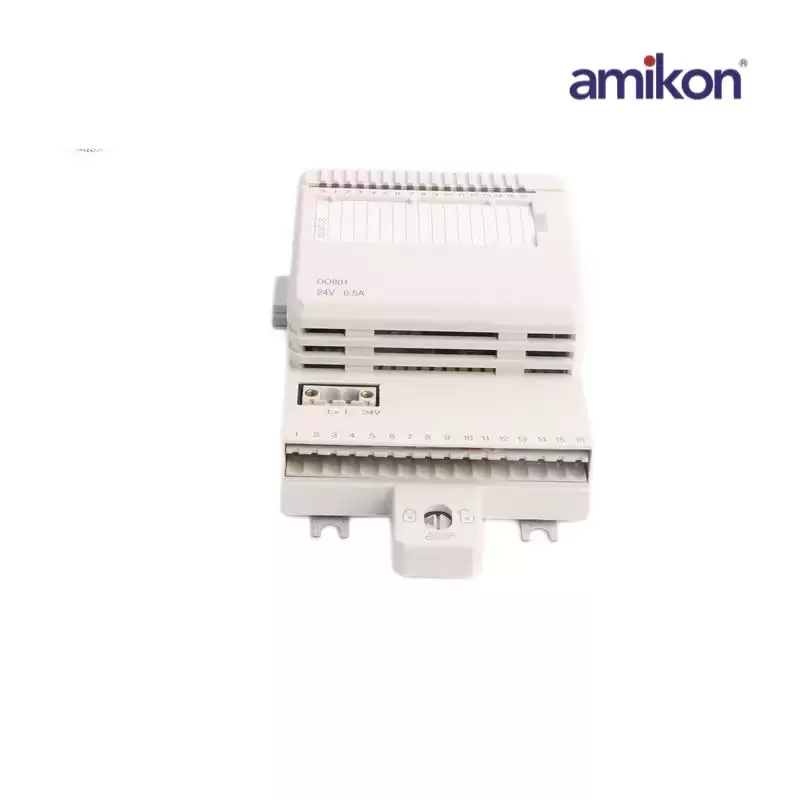

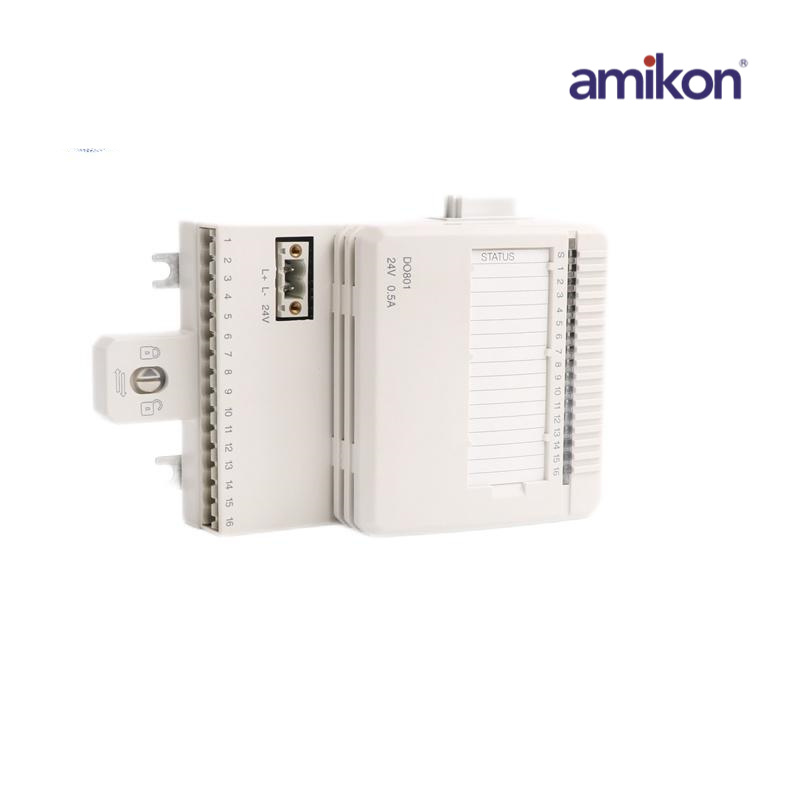

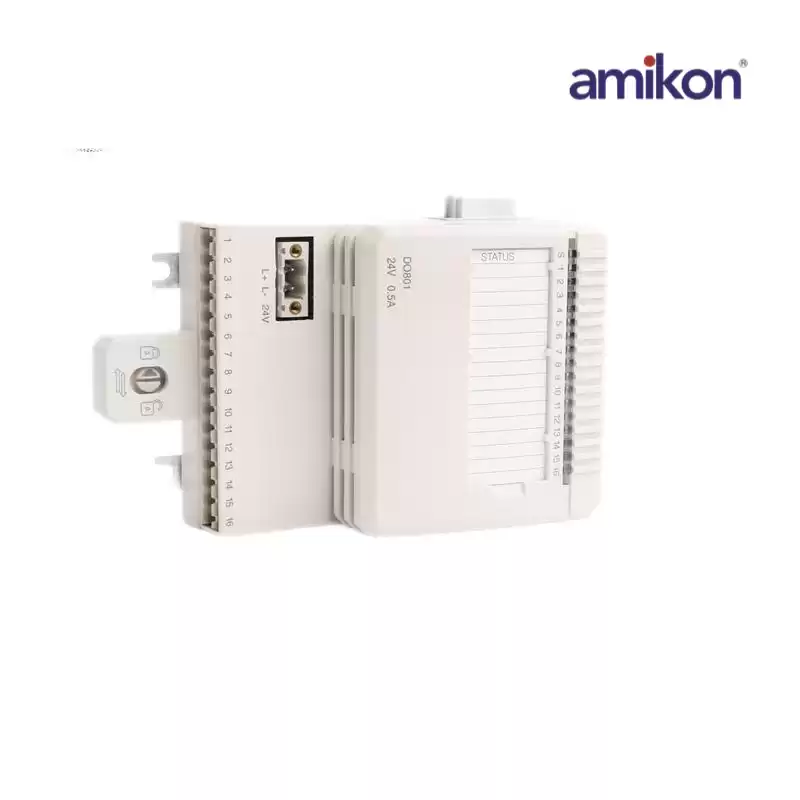

The DO801 is a 16 channel 24 V digital output module for the S800 I/O.
The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A.
The outputs are protected against short circuits, over voltage and over temperature.
The outputs are in one isolated group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.
|
|
Type
|
Digital Output
|
|
Signal specification
|
24 V d.c. (12 - 32 V d.c.), 0.5 A
|
|
Number of channels
|
16
|
|
Signal type
|
Current sourcing, current limiting
|
|
Mechanics
|
S800L
|
