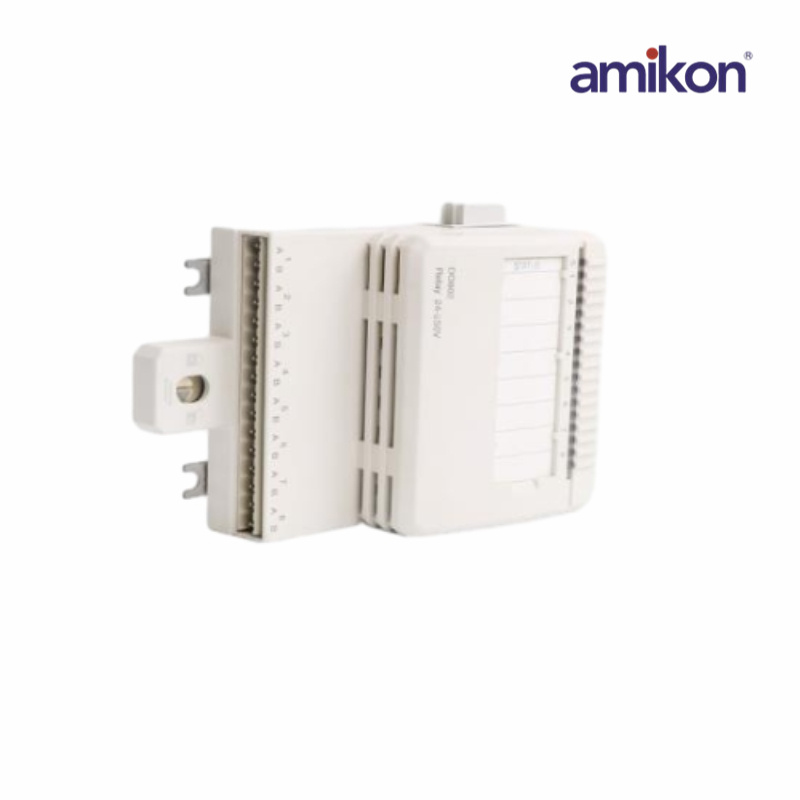

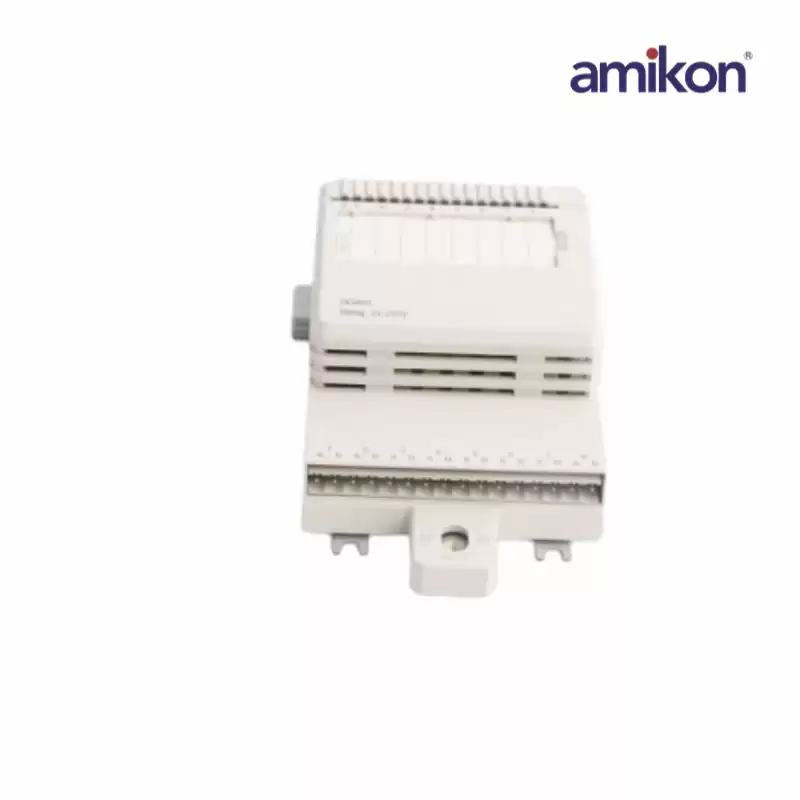

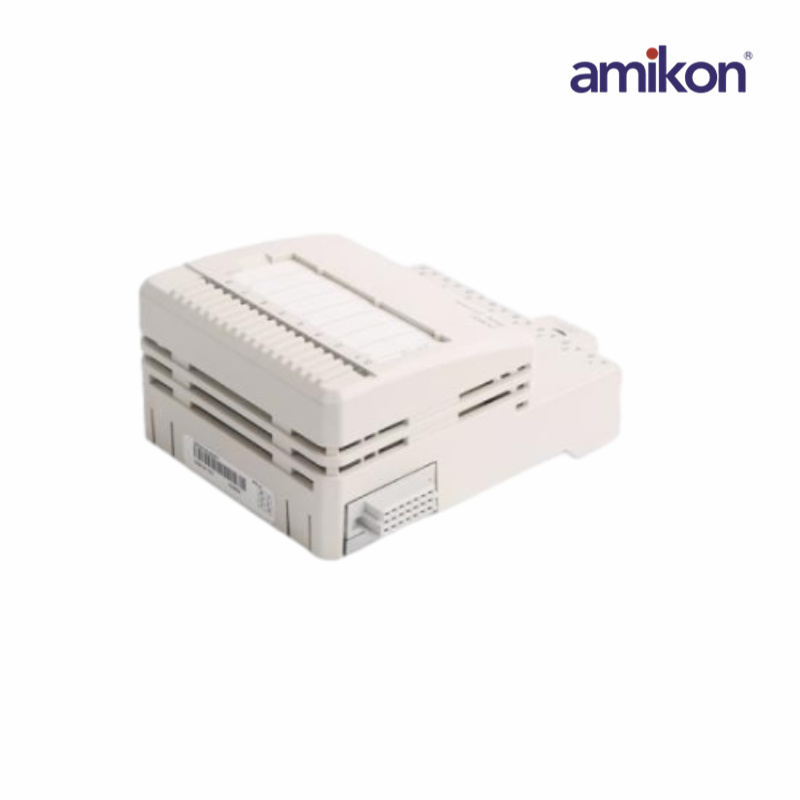

ABB DO802 3BSE022364R1 Digital Output Relay

Features

• Isolation  :Individually isolated, channel-to-channel and to circuit common

• Maximum field cable length :600 meters (600 yards)

• Rated insulation voltage  : 250 V

• Dielectric test voltage      :  2000 V a.c.

• Power dissipation            :Typ. 2.2 W

• Current consumption      :+5 V Modulebus 70 mA

• Current consumption      :+24 V Modulebus 80 mA

• Current consumption      :+24 V external 0

• Supported wire size

• Solid:                              0.05-2.5 mm², 30-12 AWG

• Stranded:                        0.05-1.5 mm², 30-12 AWG

• Recommended torque:   0.5-0.6 Nm

• Stripping length             :6-7.5mm, 0.24-0.30 inc

Applications

• Signal path isolation

• Ground loop elimination

• Data acquisition

• Industrial control and instrumentatio

Description

The DO802 is an 8 channel 110 V d.c./250 V a.c. relay (NO) output  module for the S800 I/O. The maximum voltage range is 250 V and  the maximum continuous output current is 2 A. Al outputs are  individualy isolated. Each output channel consists of optical  isolation barrier, output state indication LED, relay driver, relay and  EMC protection components.
