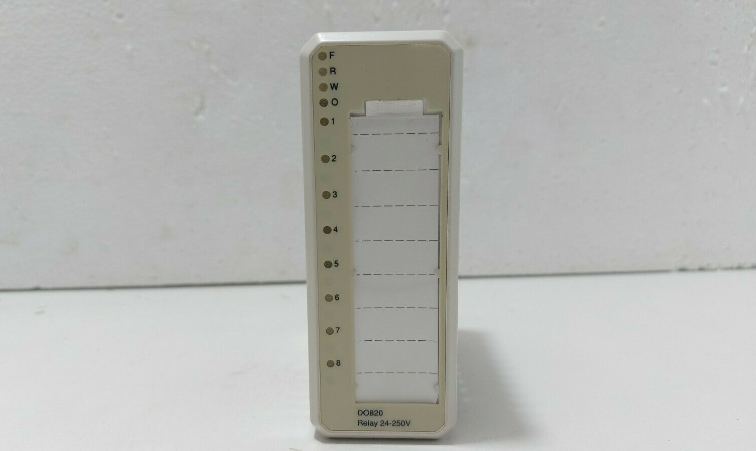

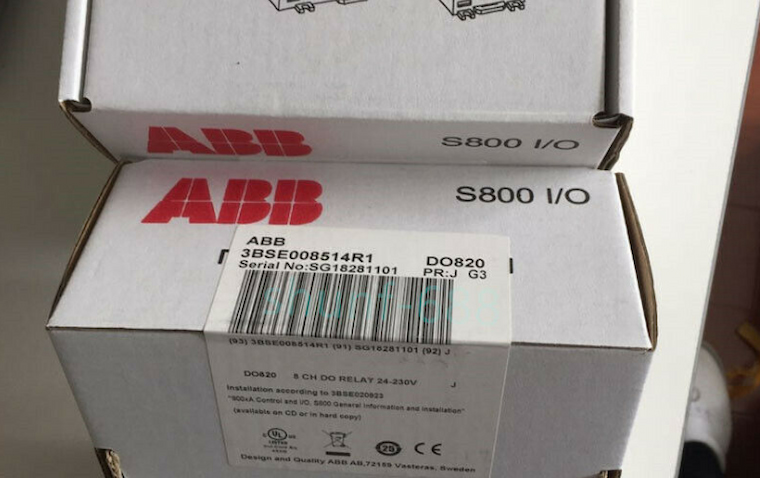

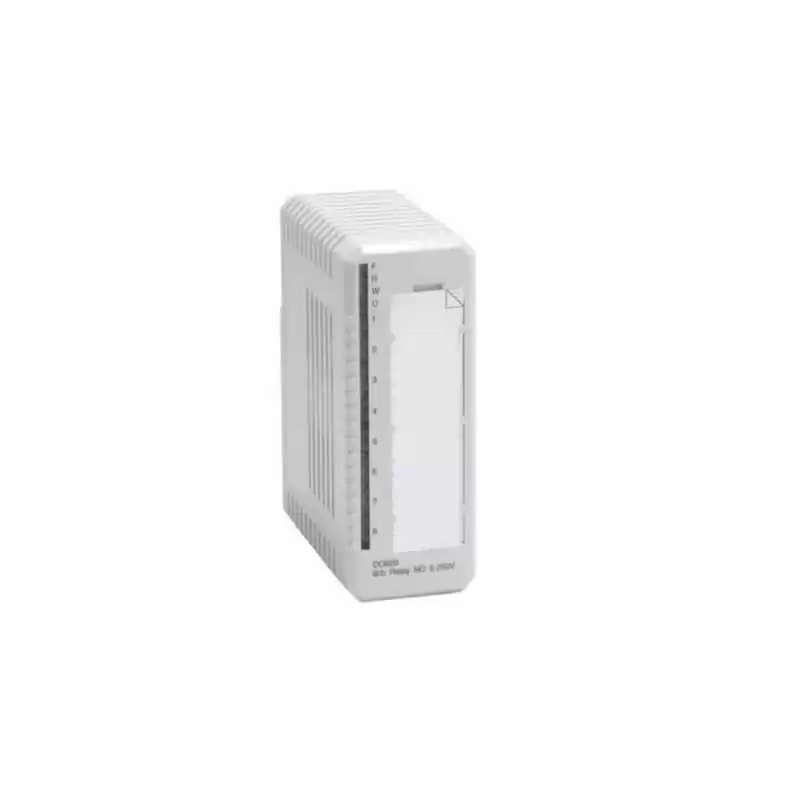

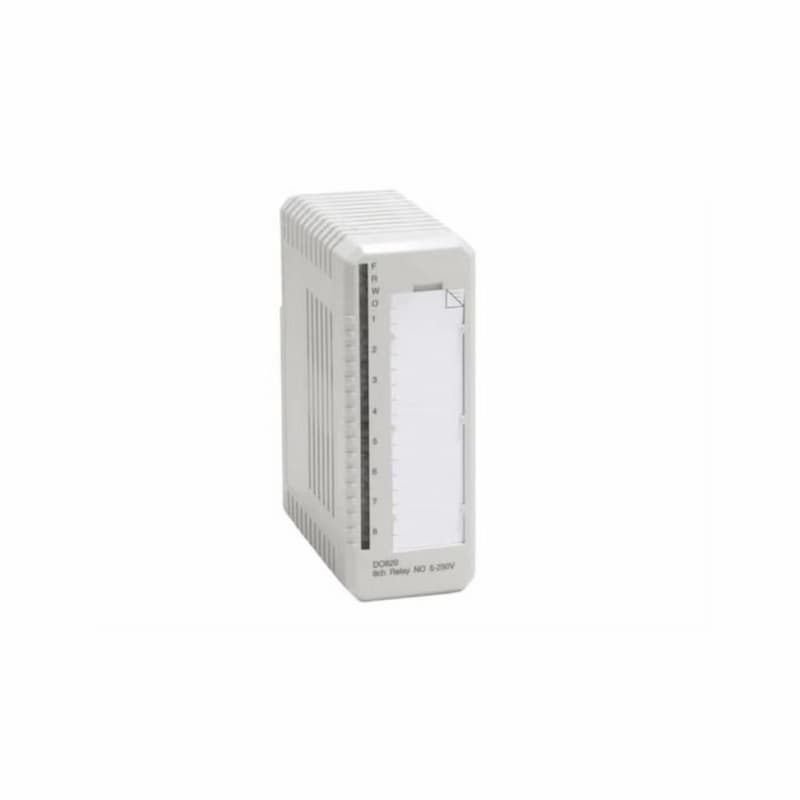

ABB DO820 3BSE008514R1 Digital Output Module

The DO820 is an 8 channel 230 V a.c./d.c.relay(NO) output module for the S800 I/O. Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.



DO820
ABB Ability™ System 800xA® hardware selector

The DO820 is an 8 channel 230 V a.c./d.c.relay(NO) output module for the S800 I/O.

The maximum output voltage is 250 V a.c./d.c. and the maximum continuous output current is 3 A.

All outputs are individually isolated.

Each output channel consists of optical isolation barrier, output state indication LED, relay driver, relay and EMC protection components. The relay supply voltage supervision, derived from the 24 V distributed on the ModuleBus, gives an error signal if the voltage disappears, and the Warning LED turns on. The error signal can be read through the ModuleBus.

This supervision can be enabled/disabled with a parameter.


Features and benefits

  • 8 channels for 230 V a.c./d.c.relay Normal Open (NO) outputs



  • 8 isolated channels



  • Output status indicators



  • OSP sets outputs to predetermined state upon error detection



Technical Specifications

Isolation  Individually isolated, channel -to- channel and to circuit common
Current limiting  Can be current limited by the MTU
Maximum field cable length  600meters (656 yards)
Event recording accuracy  -0ms / +1.3 ms
Rated insulation voltage  250 V
Dielectric test voltage  2000 V a.c.
Power dissipation  Typ. 2.9 W
Current consumption +5 V Module bus  60mA
Current consumption +24V Module bus  140mA
Current consumption +24V external

MTUs that match this product

TU831V1



ABB DO820



DO820
