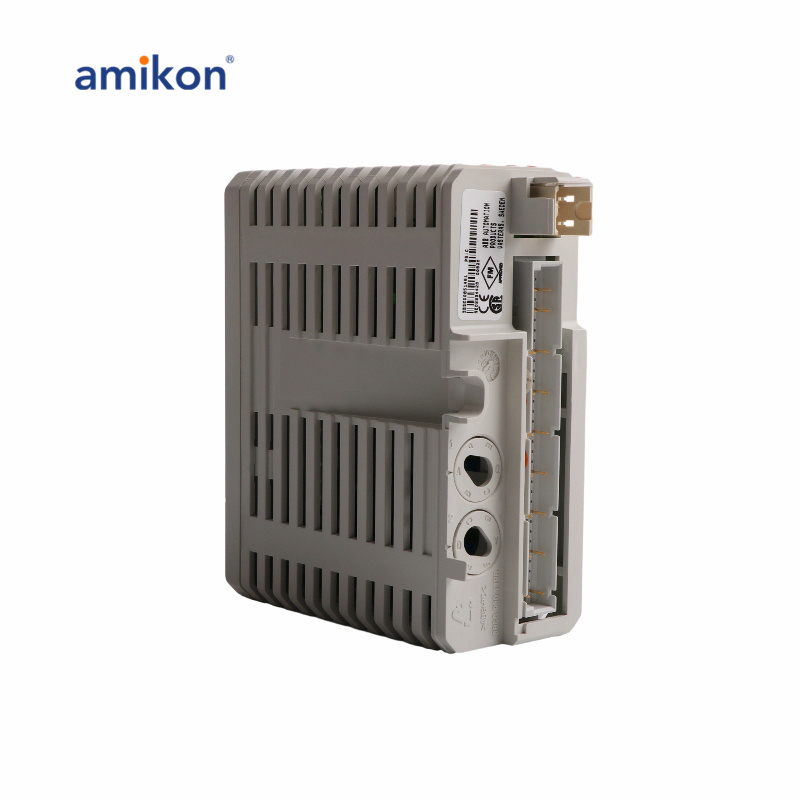

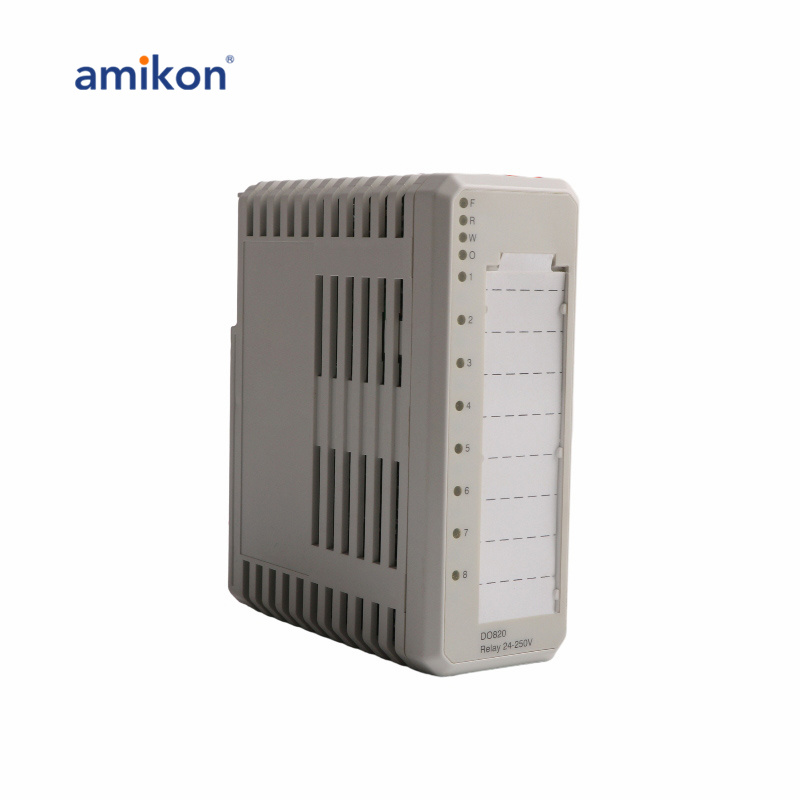

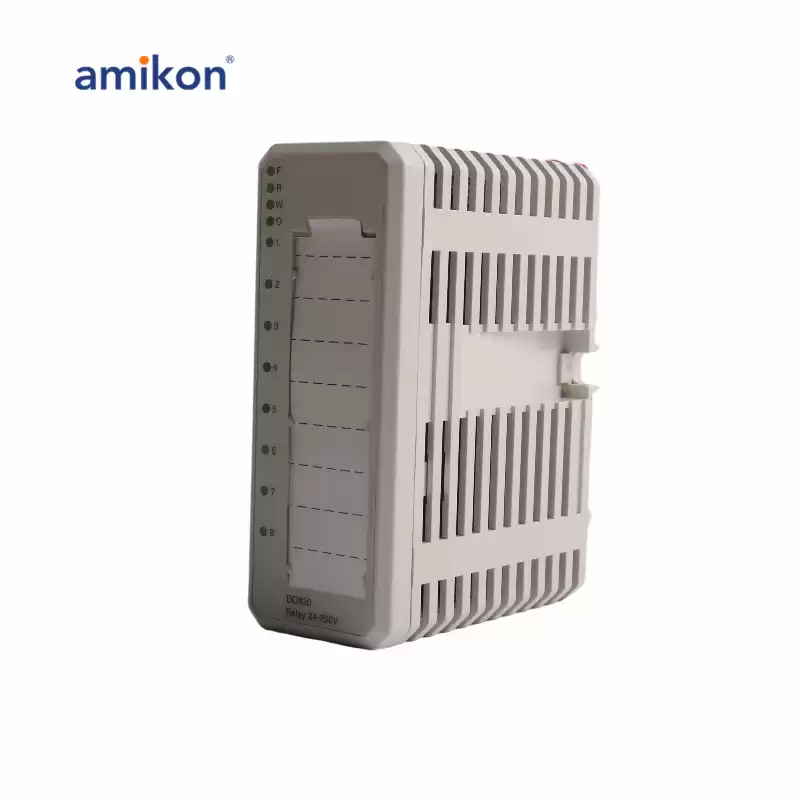

ABB DO820 3BSE008514R1 Digital Output Relay Module

Brand new and original sealed//Same Day Shipment


  • Warranty PeriodOne Year Warranty
  • Dimensions4.5cmx10.5cmx12cm
  • Weight0.22 kg
  • Country of OriginSweden
  • Brand/ManufaturerABB
  • Payment Term100% Advance Payment T/T Bank Wire Transfer

The licensing model for the Control Software Integration has changed in 800xA 5.1. Licensing is now scaled on installed controller capacity instead of licensing on connected signals and devices to the controllers (CLPs). This change has been made to make the calculation of required Control Software licenses easier. Each installed controller or redundant pair in the plant requires a separate Control Software license, which is ordered through the price list.

DO820 3BSE008514R1 Description:

The easiest way to calculate the licenses is by using the 800xA Wizard. Each controller type has its own license, where the price of it depends on the capacity of the controller. If a Control Software license that is too small is chosen initially, it is possible to upgrade to a larger one by ordering one, or several expansion items.

The 800xA Wizards helps to do the calculation in this scenario as well. Each PM type has internally a unique Controller Capacity Points figure that relates to the capacity for the controller. While ordering the different controller licenses, the total Controller Capacity Points are automatically calculated and summed up in the license.

DO820 is an 8 channel 230 V a.c./d.c. relay (NO) output module for the S800 I/O. The maximum output voltage is 250 V a.c./d.c. and the maximum continuous output current is 3 A. All outputs are individually isolated.

Award-winning service

More than 25 in stock

Full 12-month warranty

 We deliver worldwide


Product Tags do820 3bse008514r1          abb do820 3bse008514r1          DO820 3BSE008514R1 data sheet          DO820 3BSE008514R1 catalogue          DO820 3BSE008514R1 Manual          DO820 3BSE008514R1 spot goods
