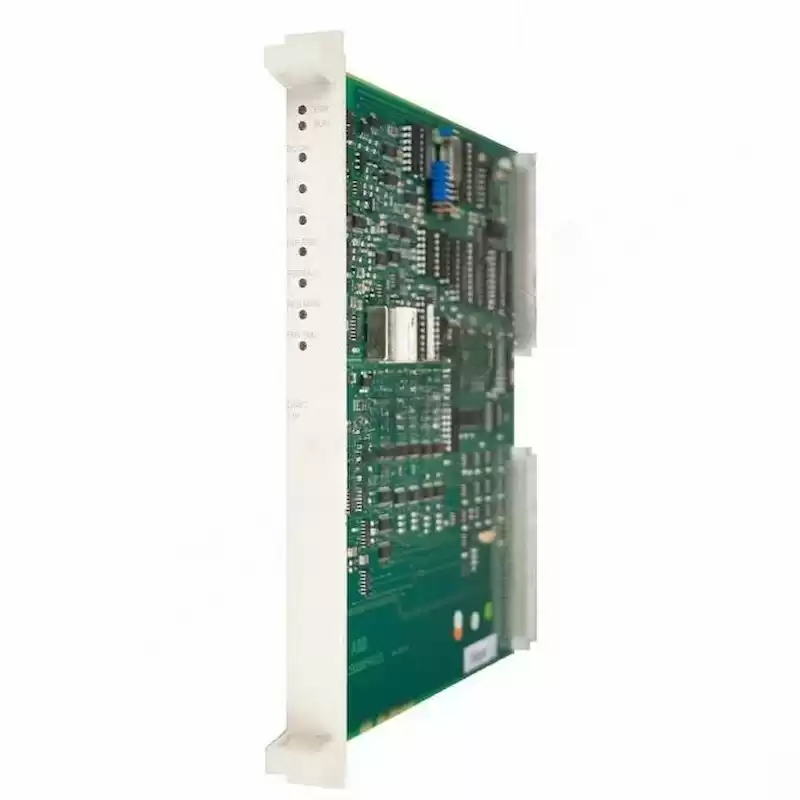

DSBC 176 3BSE019216R1 Bus Extender Board
DSBC 176 bus extender could be used in two different configurations:
• Single CPU configuration
• Redundant CPU configuration with single bus cable and extenders.
DSBC 176 should be placed in the last position of the I/O sub rack. DSBC 176 could also be used as a replacement for DSBC 173A in a CPU PM510 application. The correct operation mode is automatically set and the address jumpers have no meaning.
The following functions are supported by DSBC 176:
• Bus clock signals, generated for the backplane bus on the I/O sub rack.
• Supervision of functions such as fans and redundant regulators.
• LED's on the DSBC 176 front, indicating status of the I/O sub rack.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
DSBC 176 |
| Ordering Information |

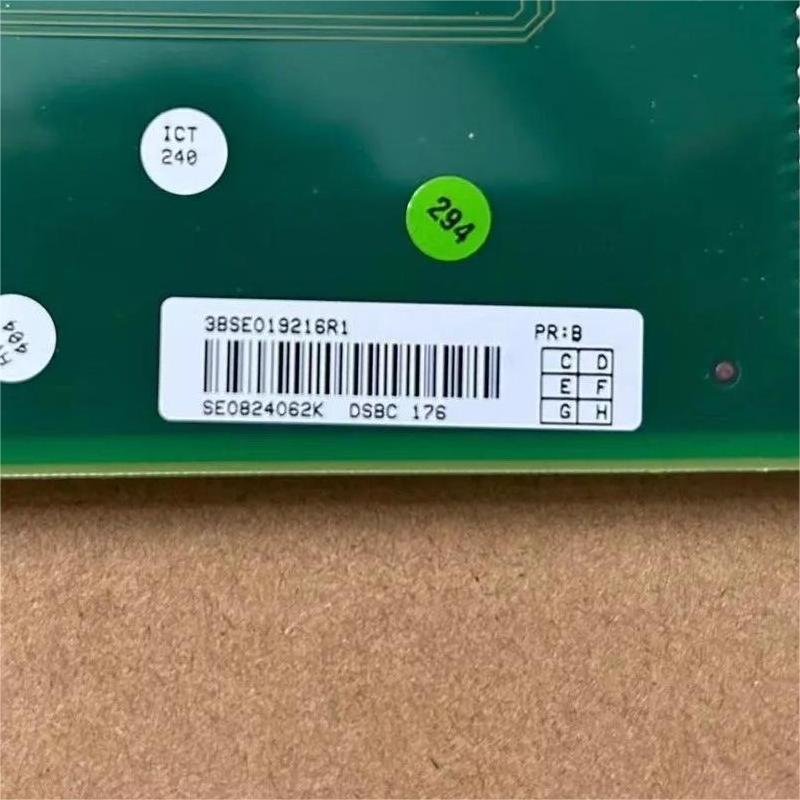

3BSE019216R1 |
| Product Catalog |
S100 I/O |
| Description |
Bus Extender Board |
| Voltage |
24 Vdc |
| HS Code |
85389091 |
| Dimensions |
324 mm x 22.5 mm x 234 mm |
| Weight |
0.4 kg |
