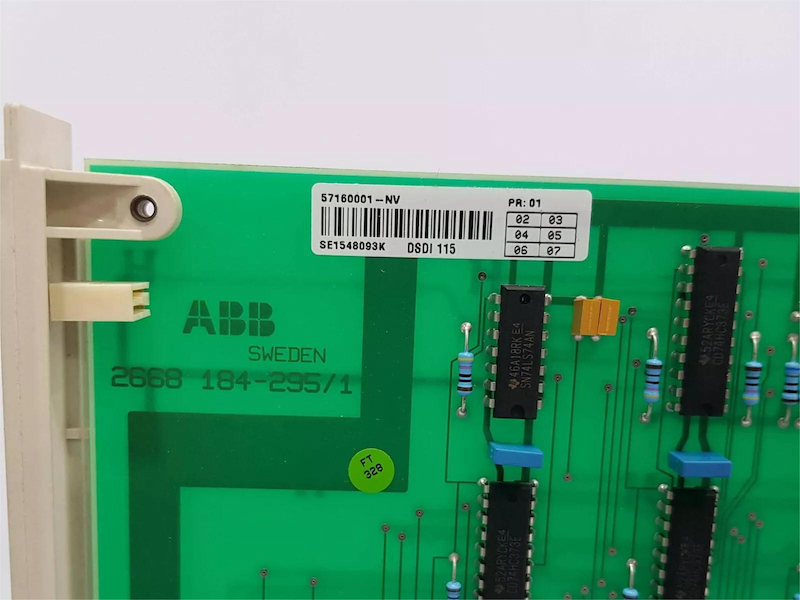

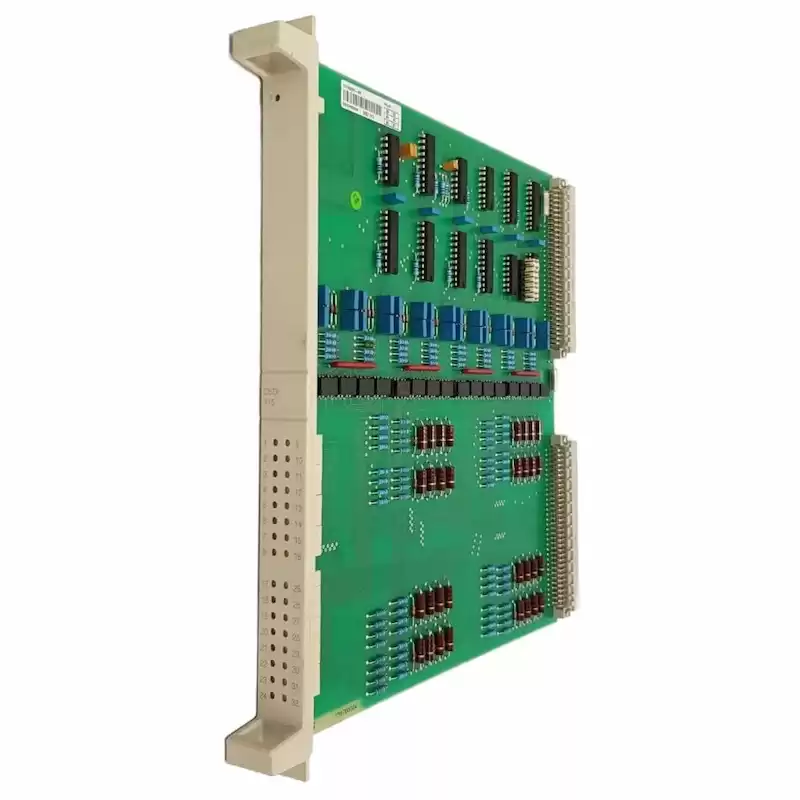

DSDI 115 57160001-NV Digital Input Board
The DSDI 115 is a Digital Input Board, manufactured and designed by ABB as part of the S100 I/O Series used in the ABB Advant Master Process Control System.
The DSDI 115 has 32 channels and the inputs are opto-isolated from the system potential, it was intended for 24 V d.c. signals.
The input signals are filtered on the input board to suppress the effects of electrical interference and bouncing contacts. The DSDI 115 does not have optional filter time, the filter time is 5 ms symmetrically.
The DSDI 115 Digital Input Board does not have interrupt-activating event-handling.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
DSDI 115 |
| Ordering Information |
57160001-NV |
| Product Catalog |
S100 I/O |
| Description |
Digital Input Board |
| Voltage |
24 Vdc |
| Power dissipation |
4 W |
| Dimensions |
328.5 mm x 27 mm x 238.5 mm |
| Weight |
0.34 kg |
