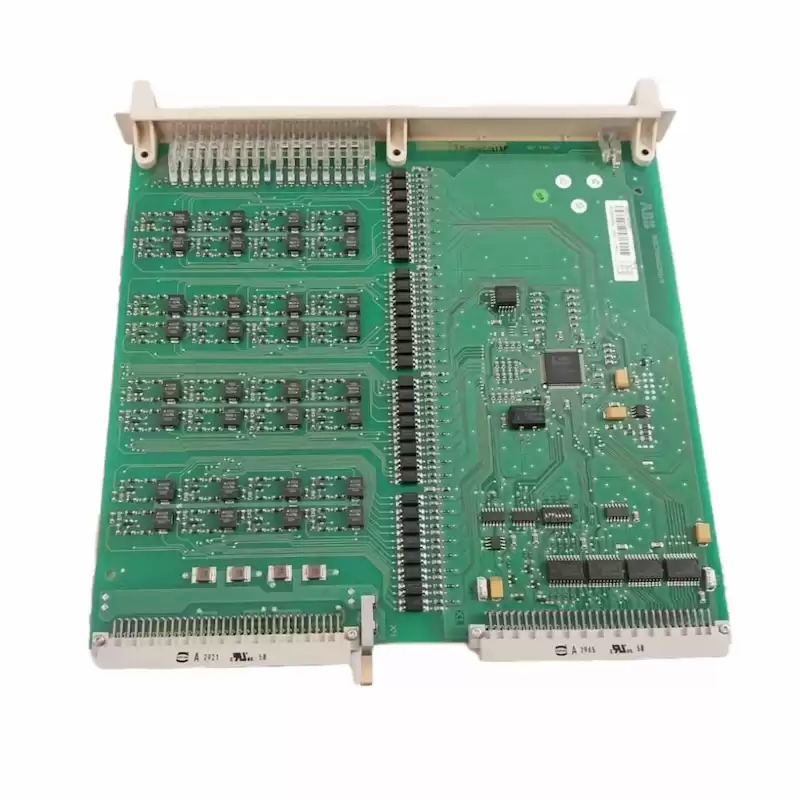

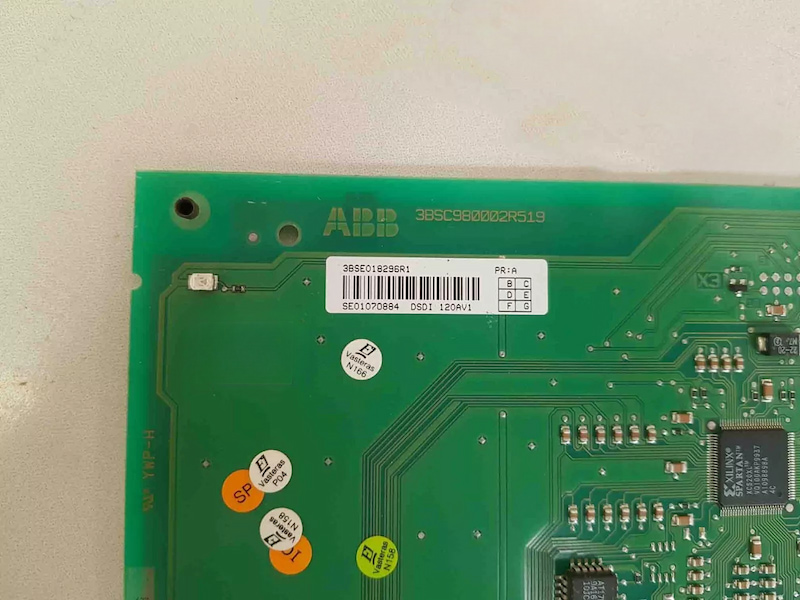

DSDI 120AV1 3BSE018296R1 Digital Input Board
The DSDI 120AV1 is a Digital Input Board, manufactured and designed by ABB as part of the S100 I/O Series used in the ABB Advant Master Process Control System.
The DSDI 120AV1 has 32 channels and the inputs are opto-isolated from the system potential.
The DSDI 120AV1 Digital Input Board with optional filter time, it can work with a symmetric filter (with d.c. signals) or asymmetric filter (with a.c. signals) with respect to delayed switch-on and switch-off. the DSDI 120AV1 also support time stamping of the input signals.
The circuit board DSDI 120AV1 was intended for 48 V d.c. signals, you can also use DSDI 110A/DSDI 110AV1 and DSDI 115 for 24 V a.c./d.c, 120 V a.c./d.c. and 230 V a.c. in combination with the connection units DSTD 145, DSTD 147, DSTD 148, or DSTD 195, DSTD 196, DSTD 196P, DSTD 197 and DSTD 198. The input circuits on the board are insulated individually or in groups.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
DSDI 120AV1 |
| Ordering Information |
3BSE018296R1 |
| Product Catalog |
S100 I/O |
| Description |
Digital Input Board |
| Voltage |
48 Vdc |
| Power dissipation |
8.8 W |
| Dimensions |
350 mm x 10 mm x 265 mm |
| Weight |
0.34 kg |
