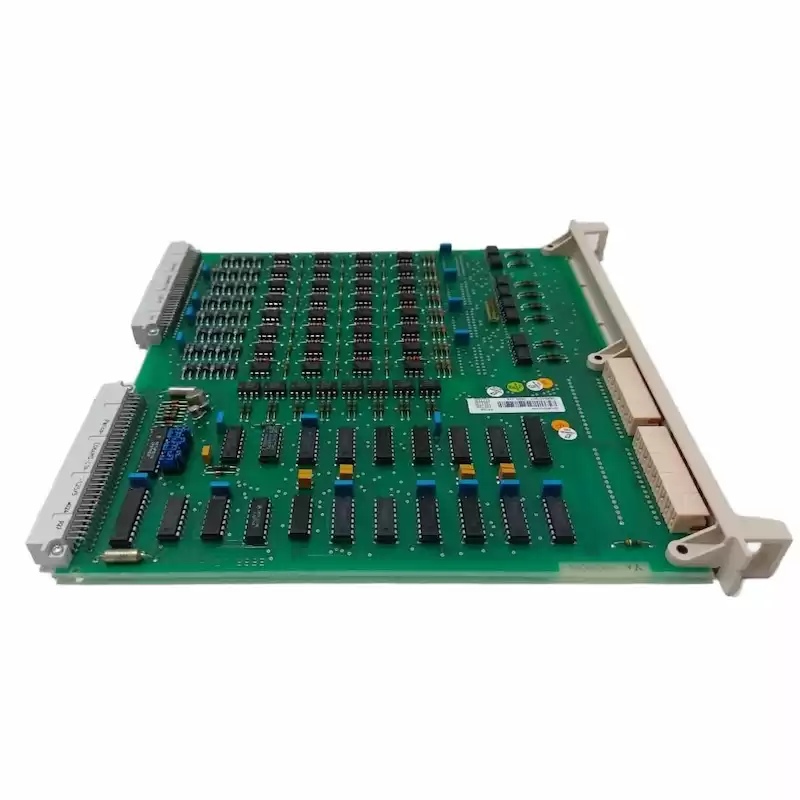

DSDO 115 57160001-NF Digital Output Board
The DSDO 115 was intended for signal voltages/currents and have 32 channels. The outputs are galvanically isolated by means of relays or opto-couplers.
DSDO 115 output channels are group wise isolated into four groups with eight channels in each group.
The output circuits consist of a number of outputs with registers for output data. Logical “1”corresponds to an activated output.
The circuit boards also have circuits which reset all outputs to logical “0” when the voltage is switched on or if a voltage failure occurs during operation.

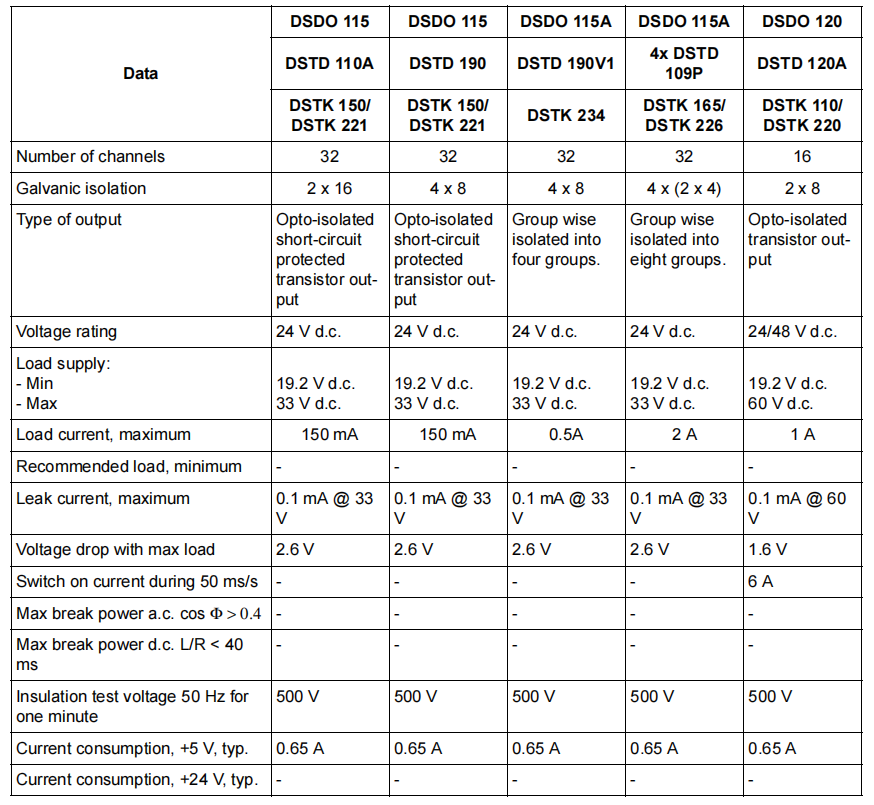

Depending on the current and voltage of the signals, you can combine the circuit boards and connection units in accordance with the following tables.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
DSDO 115 |
| Ordering Information |
57160001-NF |
| Product Catalog |
S100 I/O |
| Description |
Digital Output Board |
| Voltage |
24 Vdc |
| Current |
150 mA |
| Dimensions |
324 mm x 22.5 mm x 234 mm |
| Weight |
0.4 kg |
