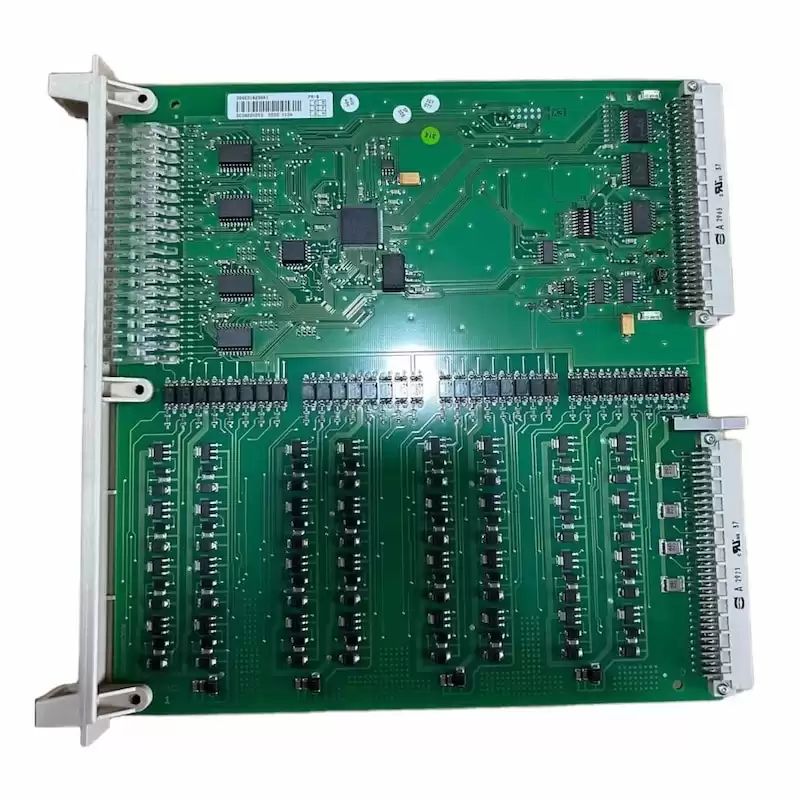

ABB DSDO 115A 3BSE018298R1 Digital Output Board

The DSDO 115A  is a Digital Output Board, manufactured and designed ABB as part of the S100 Series used in the Advant OCS with Master Control System.

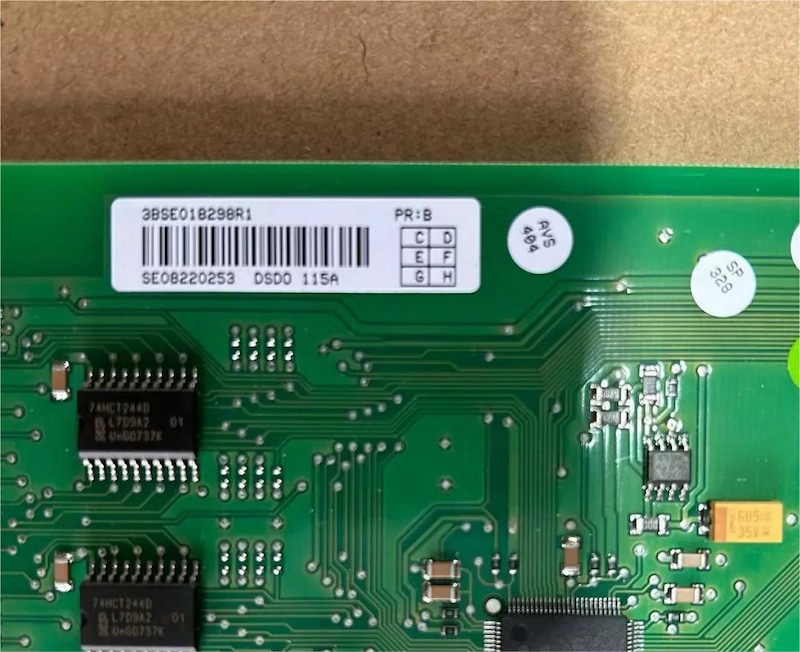

DSDO 115A 3BSE018298R1 Digital Output Board





The circuit board DSDO 115A output channels are group wise isolated into four groups with eight channels in each group.



The output circuits consist of a number of outputs with registers for output data. Logical “1”corresponds to an activated output.



The circuit boards also have circuits which reset all outputs to logical “0” when the voltage is switched on or if a voltage failure occurs during operation.

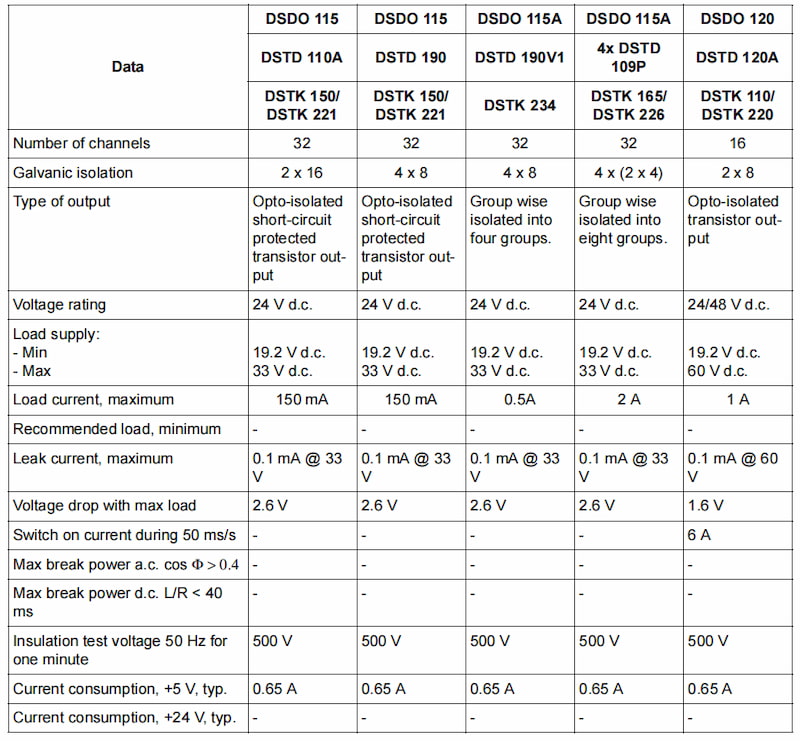

Depending on the current and voltage of the signals, you can combine the circuit boards and connection units in accordance with the following tables.





Technical Specifications

Manufacturer ABB
Part Number DSDO 115A
Ordering Information 3BSE018298R1
Product Catalog S100 I/O
Description Digital Output Board
Voltage 24 Vdc
Current 150 mA
Dimensions 324 mm x 22.5 mm x 224 mm
Weight 0.32 kg



DSDO 115A
