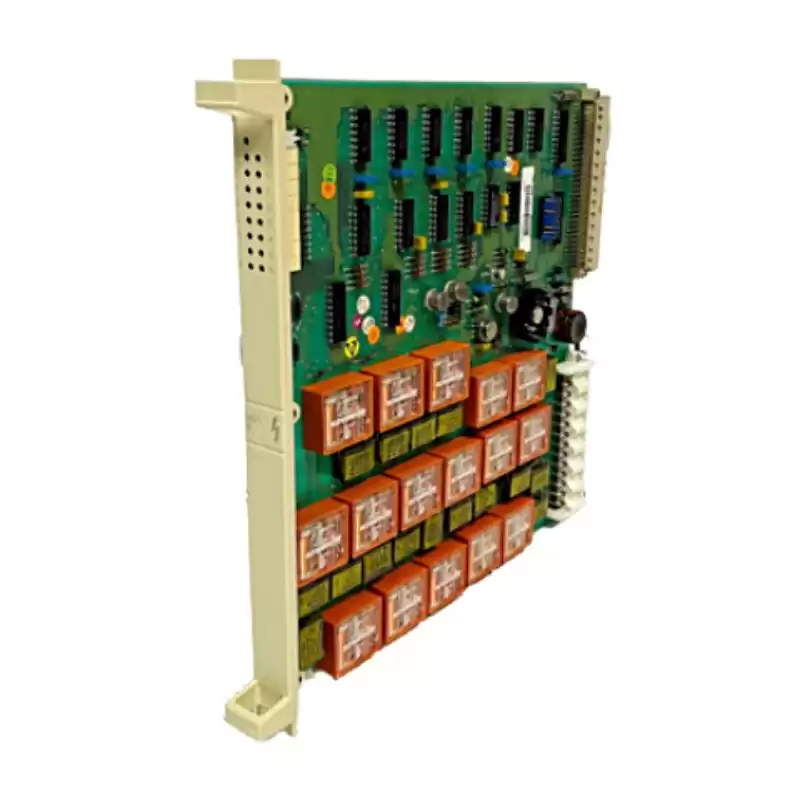

DSDO 131 57160001-KX Digital Output Board
The DSDO 131 is a Digital Output Board, manufactured and designed ABB as part of the S100 Series used in the Advant OCS with Master Control System.
The circuit board DSDO 131 has relay outputs, on DSDO 131, the output channels are galvanically isolated with relays and, on the other boards, with opto-couplers.

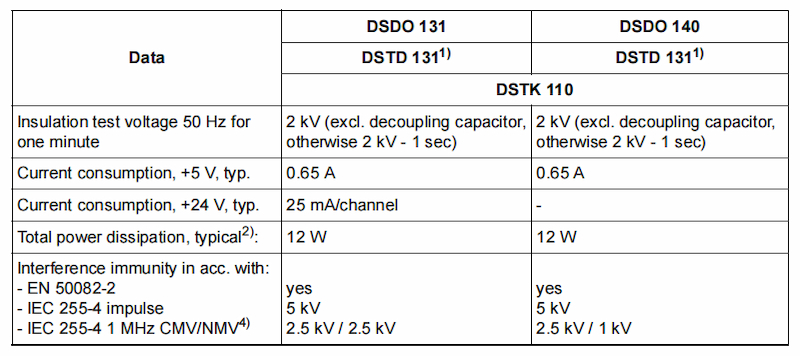

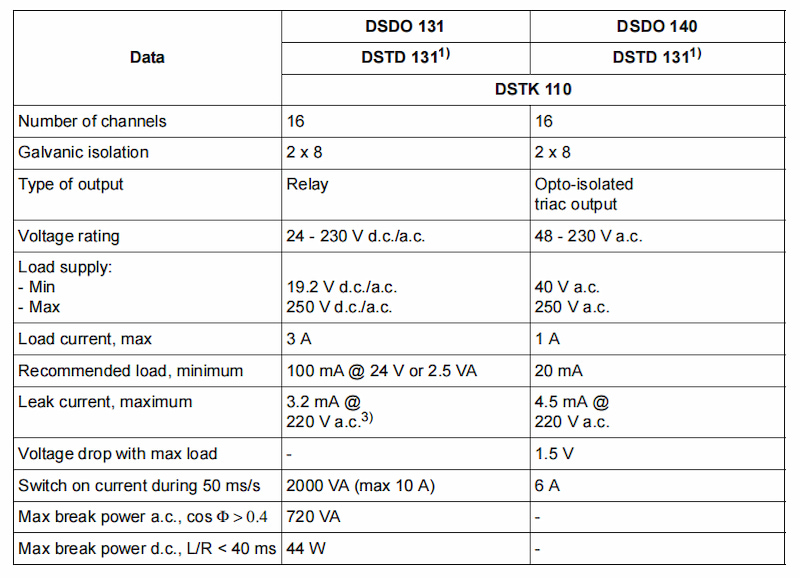

Technical Specifications
| Manufacturer |
ABB |
| Part Number |
DSDO 131 |
| Ordering Information |
57160001-KX |
| Product Catalog |
S100 I/O |
| Description |
Digital Output Board |
| Voltage |
24 Vdc |
| Current |
100 mA |
| Dimensions |
324 mm x 18 mm x 225 mm |
| Weight |
0.7 kg |
