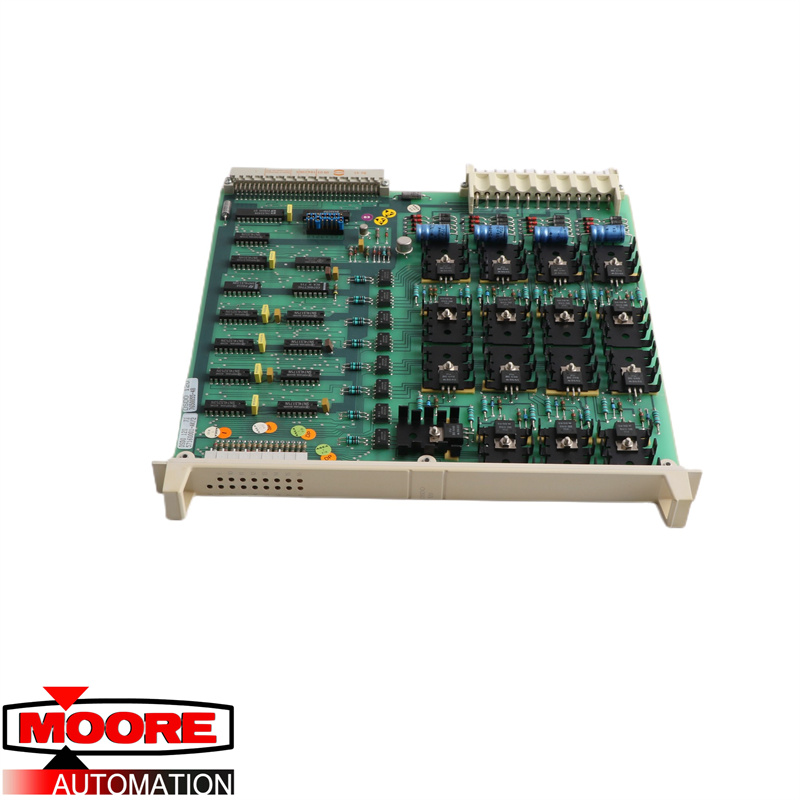

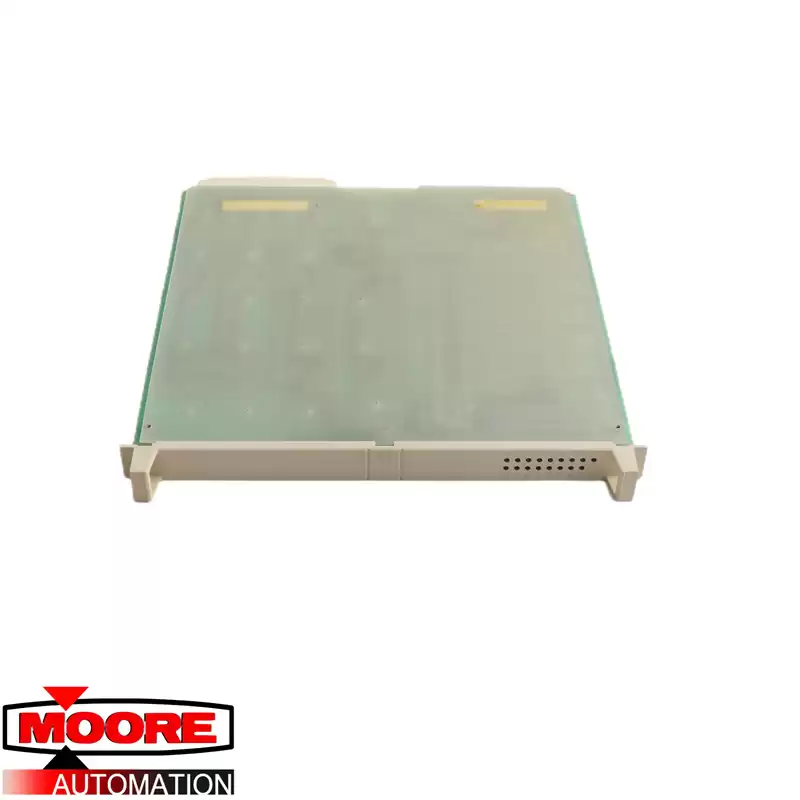

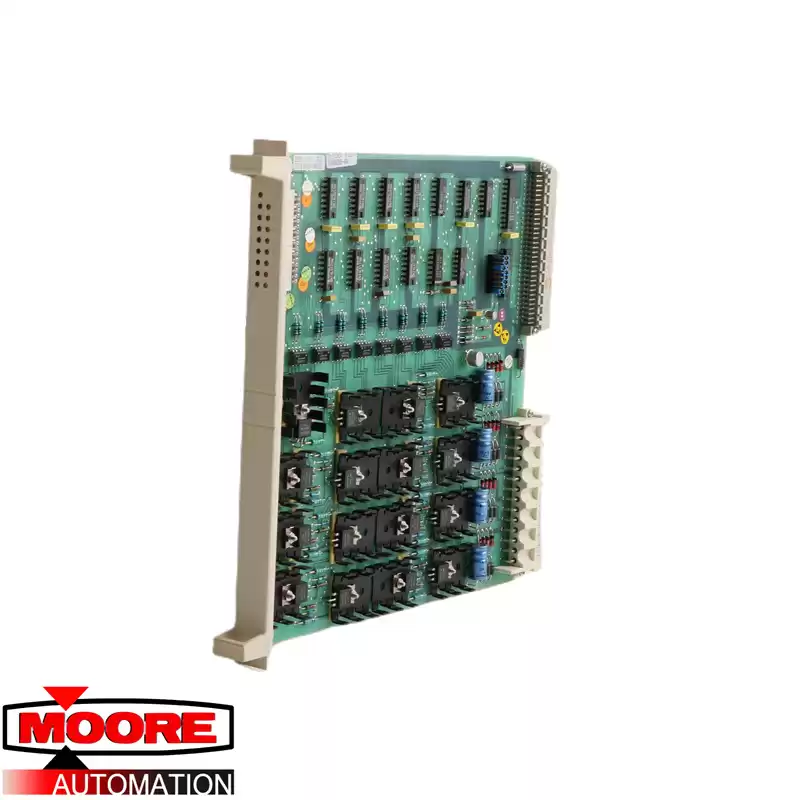

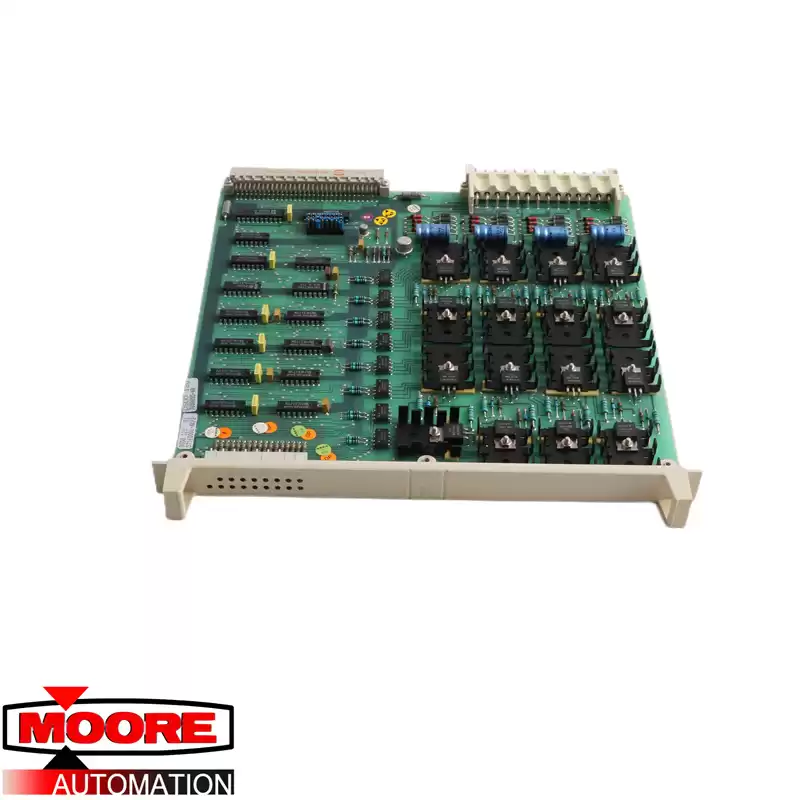

DSDO120 57160001-AK
ABB Bailey Digital Output Module
-------------------------------------------------------------
|
Origin
|
Sweden
|
|
Status
|
Brand New In Stock
|
|
Shipment
|
2020-2022 available
|
|
Year of Production
|
From Xiamen, China to Worldwide
|
-------------------------------------------------------------
Description: The DSDO120 57160001-AK Digital Output Module is 16 channels, 24/48 V d.c, transistor output,
max. 1 A. Static outputs for 24 V - 48 V d.c. (transistor outputs). The board is designed to withstand a load
up to 1 A per channel. The supply is divided in the connection unit into two groups of eight
channels each. Each has a common supply and 0V. The outputs are galvanically isolated from
the internal electronics.
• Input units are available for standard voltage or current signals, single-ended or
differential, with or without live zero.
• An isolation amplifier is available in the form of a connection unit. The isolation
voltage is 3 kV.
• Some board has reference channels for automatic calibration and testing.
• The data base is updated by scanning, with cycle times normally selected from the
range 100 ms to 600 s.
• Optional software filtering, square-root linearization and deadband limits for updating
can be selected.
• Optional redundancy. Two types of boards can be duplicated to achieve increased
availability.
• A board is offered which combines analog inputs and analog outputs (loop dedicated I/O).
