Product Description:

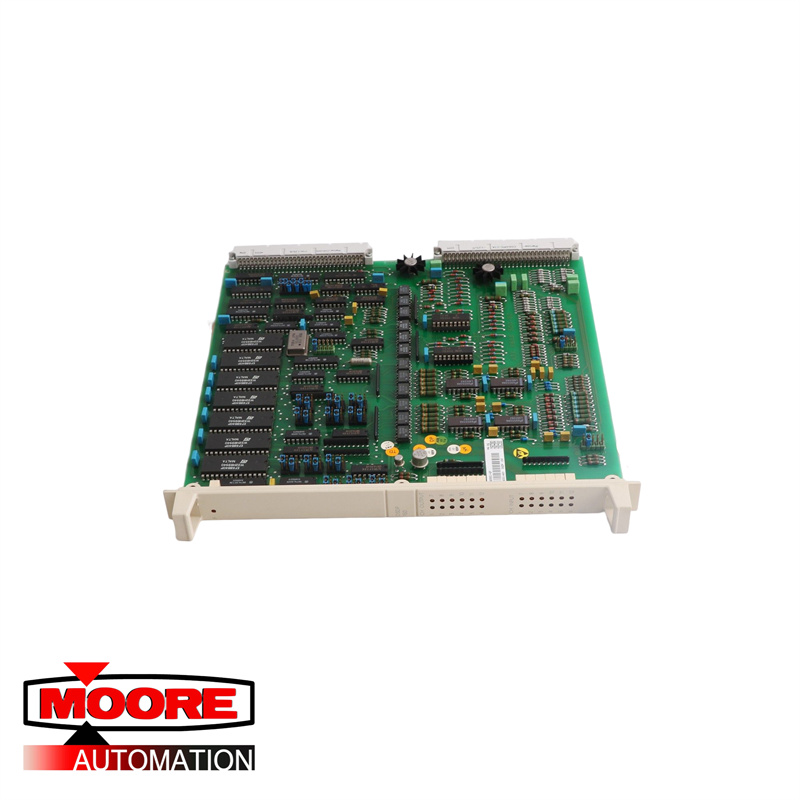

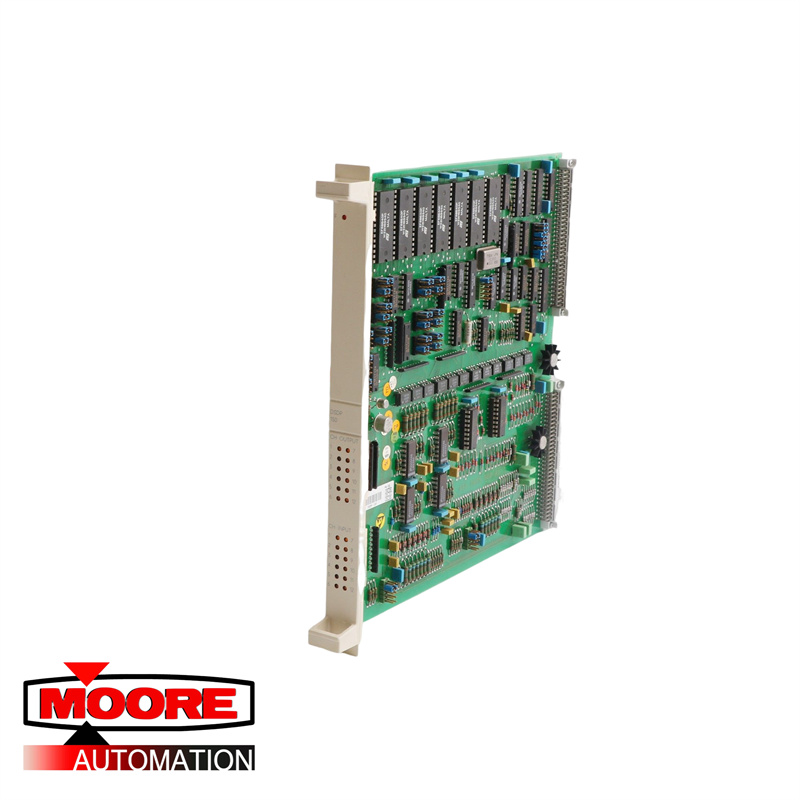

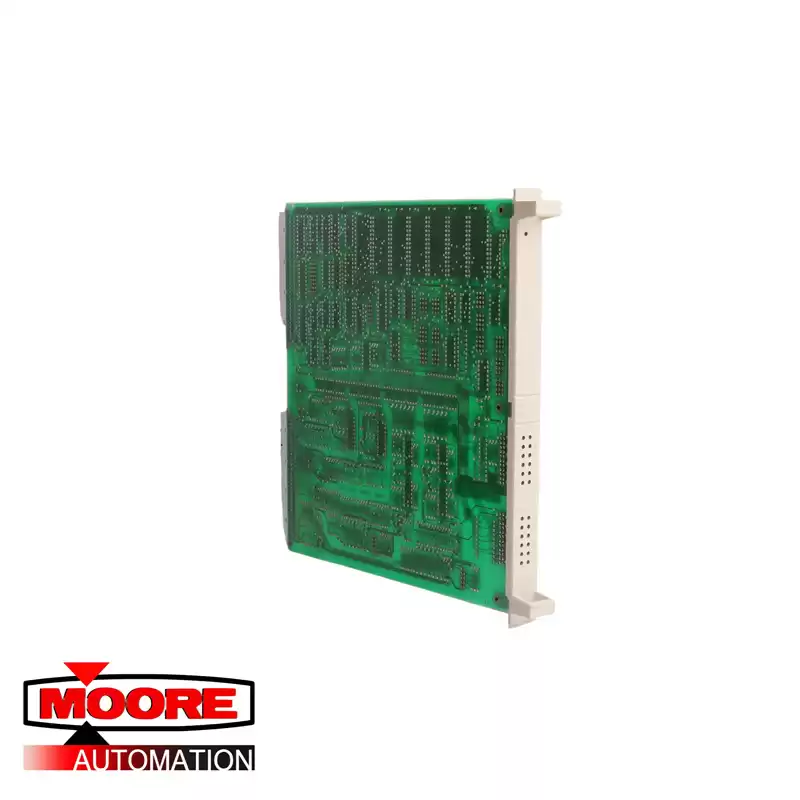

DSDP 150 Pulse Encoder Input Unit for 12 V DC used for both pulse counting and frequency measurement and has inputs which can be connected to pulse generators with a frequency of up to 10 kHz. Twelve channels 5/12/24 V d.c. for pulse and frequency measurement up to a maximum of
10 kHz. Pulse or frequency measurement is selected optionally for each channel pair. To obtain
acceptable accuracy, the frequencies which the two channels in a channel pair are to measure
should be fairly similar. The address jumpering of the positioning board and the
I/O address given on the PC element POS-A are
different. The positioning board is inactive.
The I/O address given on the PC element POS-A is
odd.
The address jumpering of the positioning board and the
I/O address given on the PC element POS-O are
different. The positioning board is inactive.
The I/O address given on the PC element POS-O is
odd.
