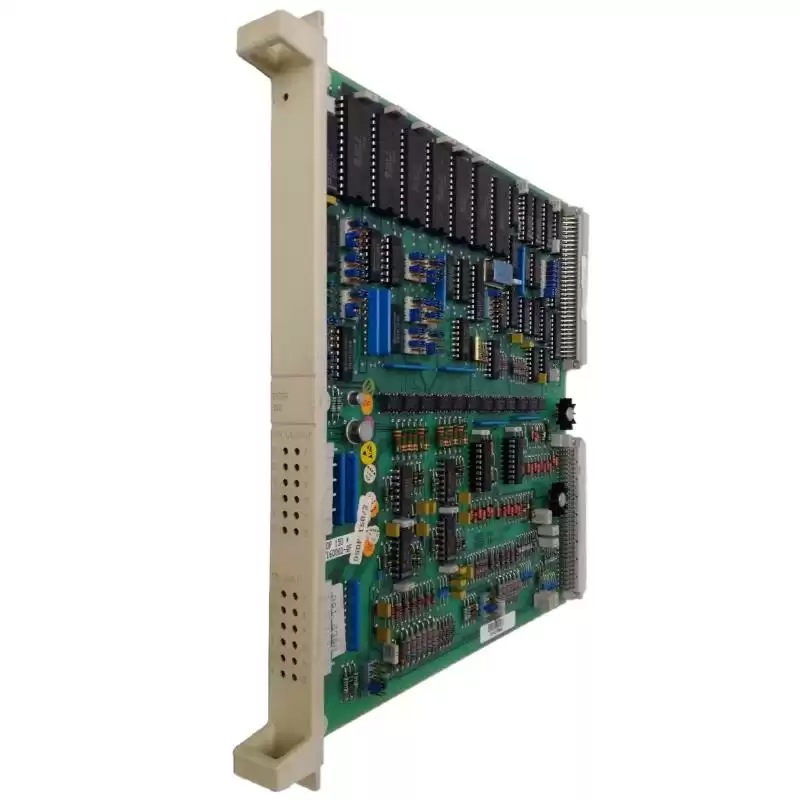

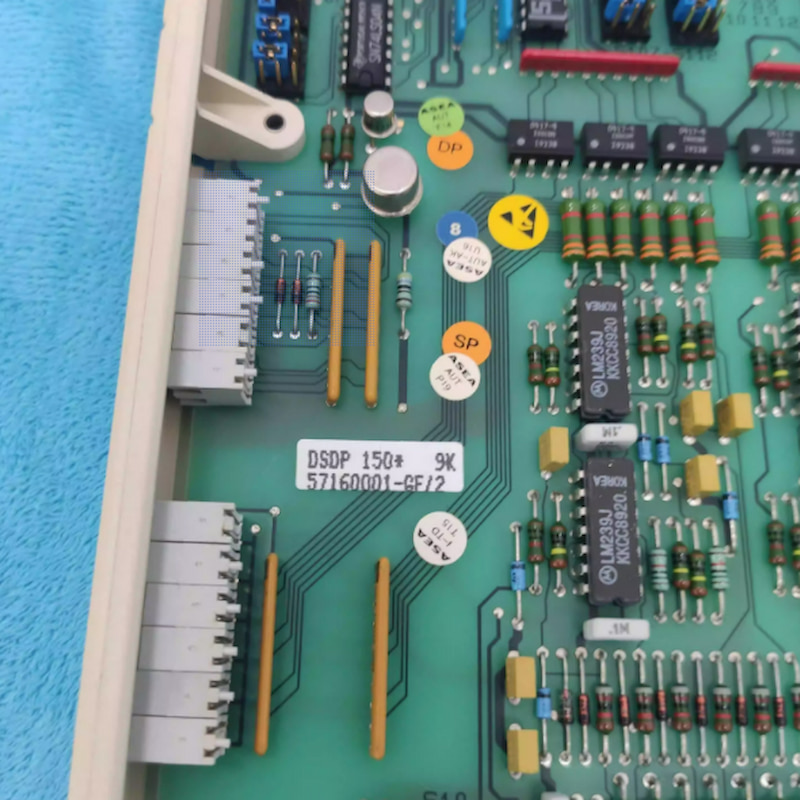

DSDP150 57160001-GF Pulse Counter Board
DSDP 150 is a pulse counter board for fast pulse counting and frequency measurement based on pulse trains up to 10 kHz. Use the board DSDP 150 to connect pulse signals with a nominal amplitude of 5/12 or 24 V. The board contains 12 inputs in two groups, galvanically isolated with opto-couplers.
You can select four function modes with the jumpers on DSDP 150 and the controller software:
· Pulse counting
· Frequency measurement 1. Period time measuring: One period is measured and the resolution is ≤ 0,2% at F ≤ 1000 Hz.
· Frequency measurement 2. This type of measuring requires two channels per measurement object. F ≤ 10 kHz.
· Pulse relation measurement.

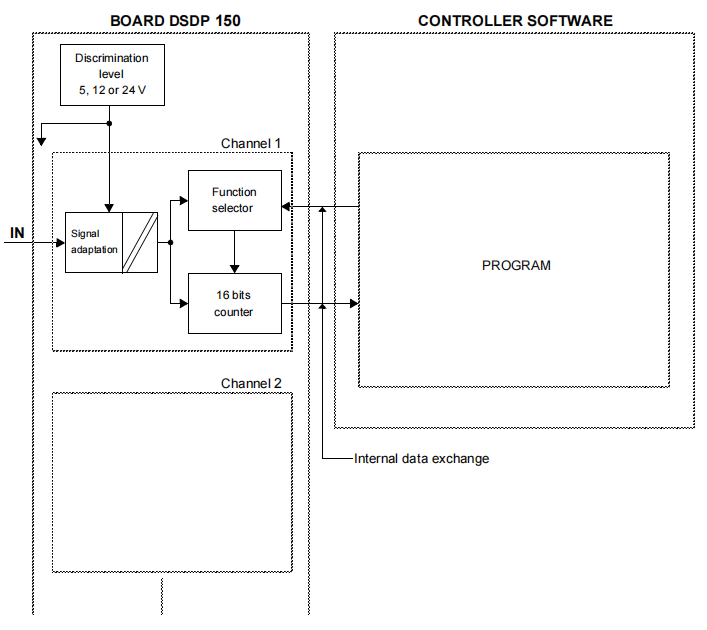

Below shows the signal processing on DSDP 150.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
DSDP 150 |
| Ordering Information |
57160001-GF |
| Product Catalog |
S100 I/O |
| Description |
Pulse Counter Board |
| Voltage |
24 V |
| Current |
1 A |
| Dimensions |
360 mm x 15 mm x 250 mm |
| Weight |
0.5 kg |
