Product Description:
In the Dual cabinet optional 24 V 4 A units DSQC609 have to be ordered, 1, 2 or
4 units. The DSQC609 is also possible to order with the Single Cabinet (max. 2
units).
Input 230 V AC
Power supply
Option 727-x, 886-1

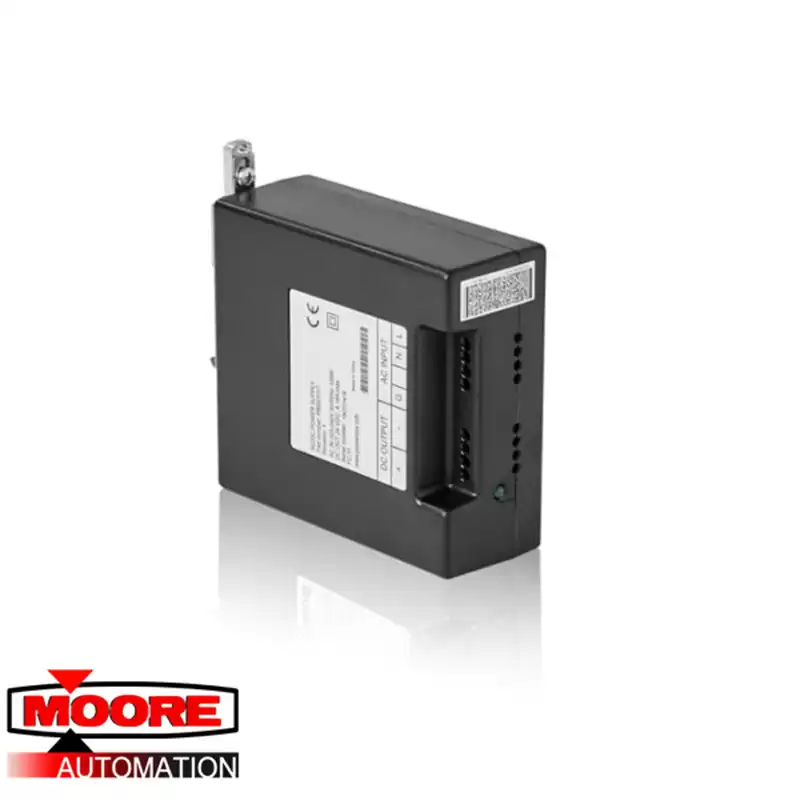

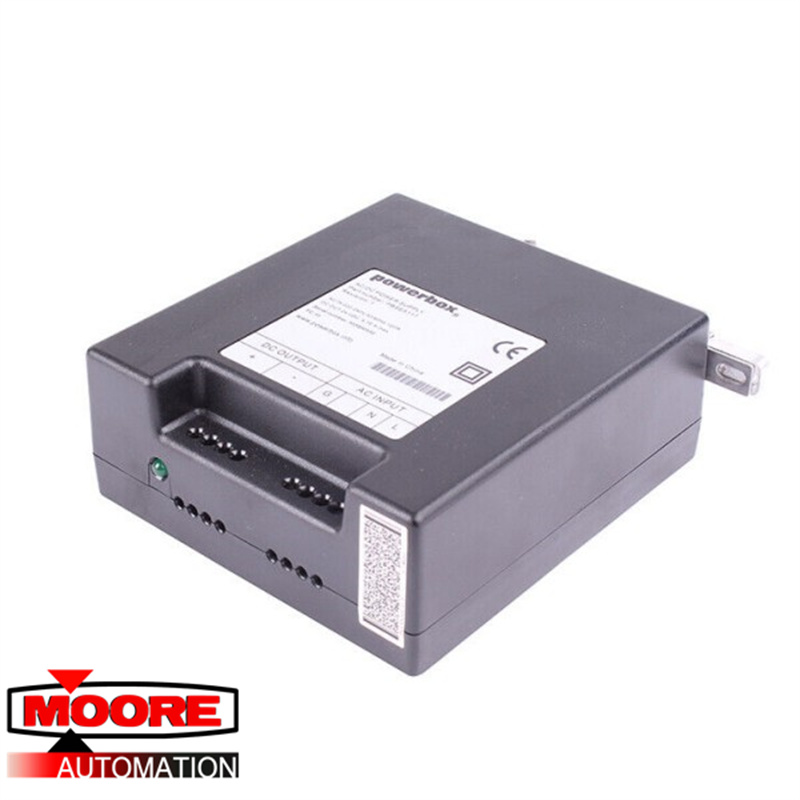

DSQC609
Output voltage 24 V DC - 1% + 10%. 0 V directly
grounded to chassis. Rated continuous load 4 A
Output over current protection < 4.16 A, short circuit protected
Output over voltage protection < 31.2 V Output hold-up > 20 ms
Output noise/ripple < 200 mV p-p
