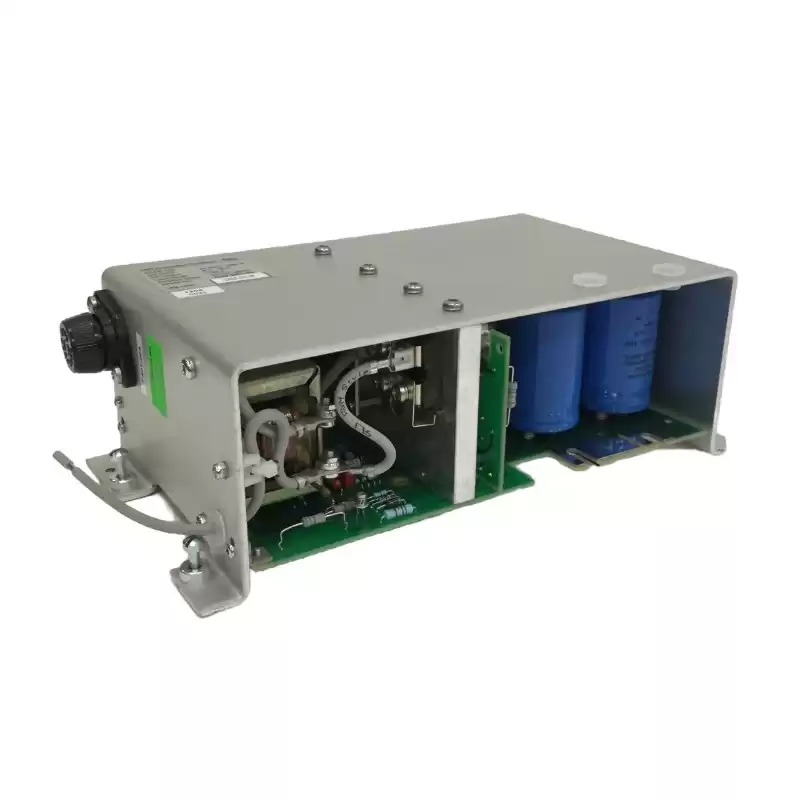

DSSR 122 48990001-NK Power Supply Module
You can install the voltage regulator unit DSSR 122 on the rear of the I/O subrack for the supply of 5 V. It converts 24 V d.c. to 5 V d.c. Fix the unit to the I/O sub rack with screws.
The input to the regulator is protected with a tube fuse, F1. The output, which is galvanically connected to the input, is current limited. The unit is provided with over voltage protection. The voltage regulator unit draws constant power down to approximately 14 V input voltage.

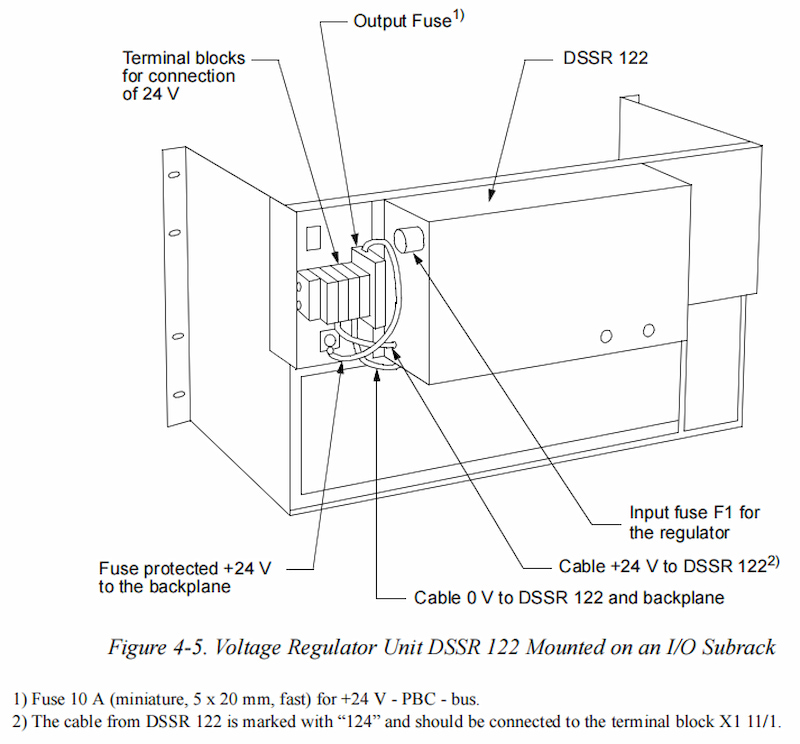

Figure 4-5 shows a DSSR 122 mounted on an I/O sub rack.

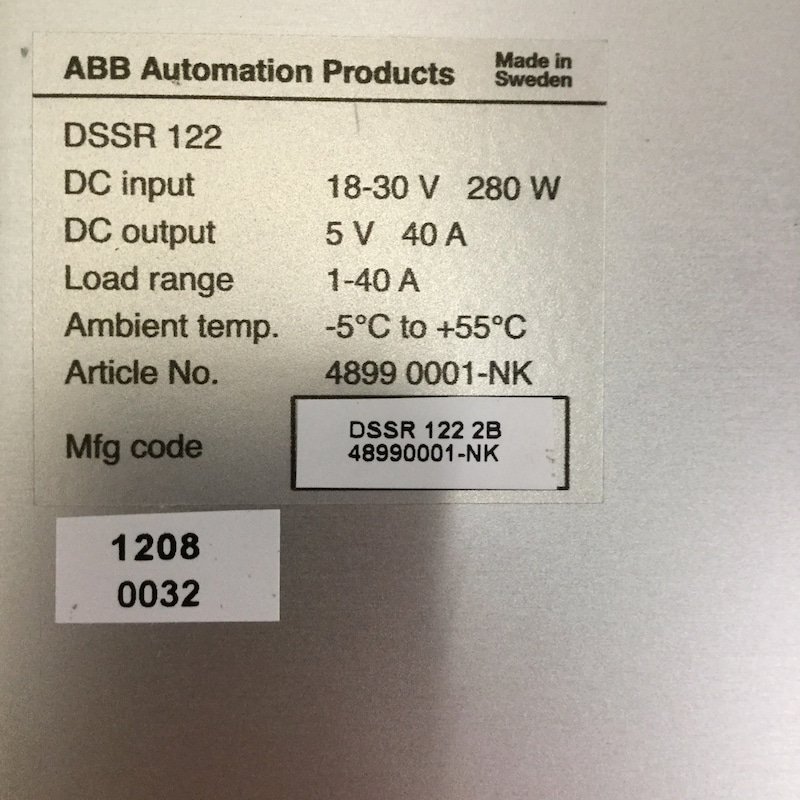

Technical Specifications
| Manufacturer |
ABB |
| Part Number |
DSSR 122 |
| Ordering Information |
48990001-NK |
| Product Catalog |
S100 I/O |
| Description |
Power Supply Module |
| Voltage |
24 Vdc |
| Current |
40 A |
| Dimensions |
238.5 mm x 72 mm x 162 mm |
| Weight |
2.43 kg |
