Product Description:

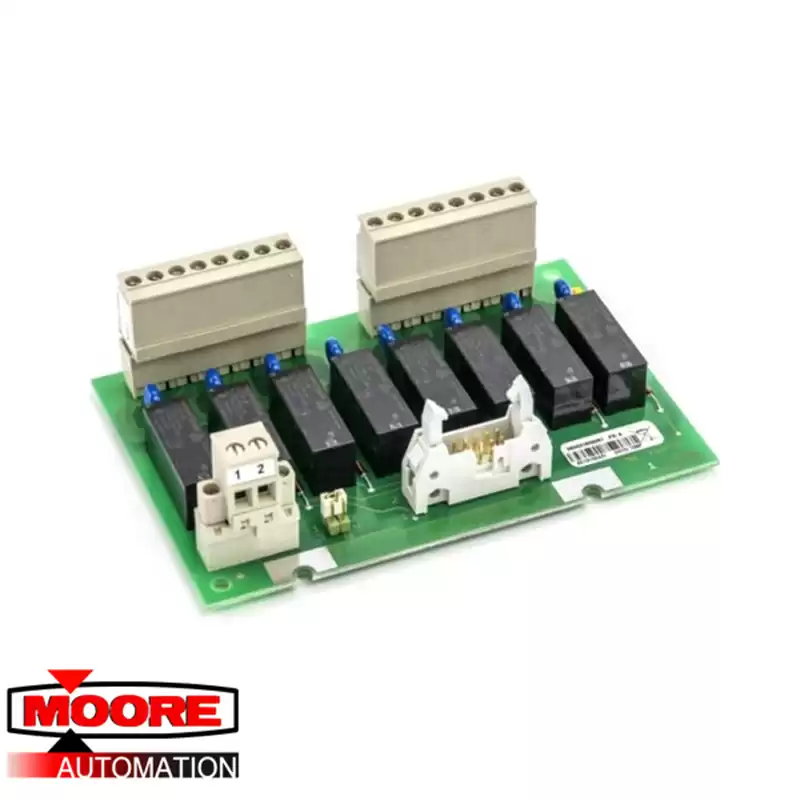

Connection unit with eight closing relay outputs, 24 - 250 V a.c./d.c. max 3 A. The relay
contacts have a safety circuit for spark suppression. For supply and grounding purposes,
32 completely individual channels are obtained. Each connection unit (DSTD 108) is 120 mm
long. The minimum load on the relays is 2.5 VA but the lowest is 100 mA with 24 V. With
pluggable screw terminals.
In the control of two-phase motors (with a phase-displacing capacitor between the forward and
reverse windings), a reverse voltage considerably higher than the system voltage can be induced over the capacitor. This voltage is induced over the open control function and can result in the
maximum permitted voltage being exceeded. This can be a problem with a.c. 230 V and with
the use of DSTD 108P.
