DSTS103 57150001-AD
|
|
Dimensions ：
|
15cmx2.5cmx20.3cm
|
Weight：
|
0.3KG
|
|

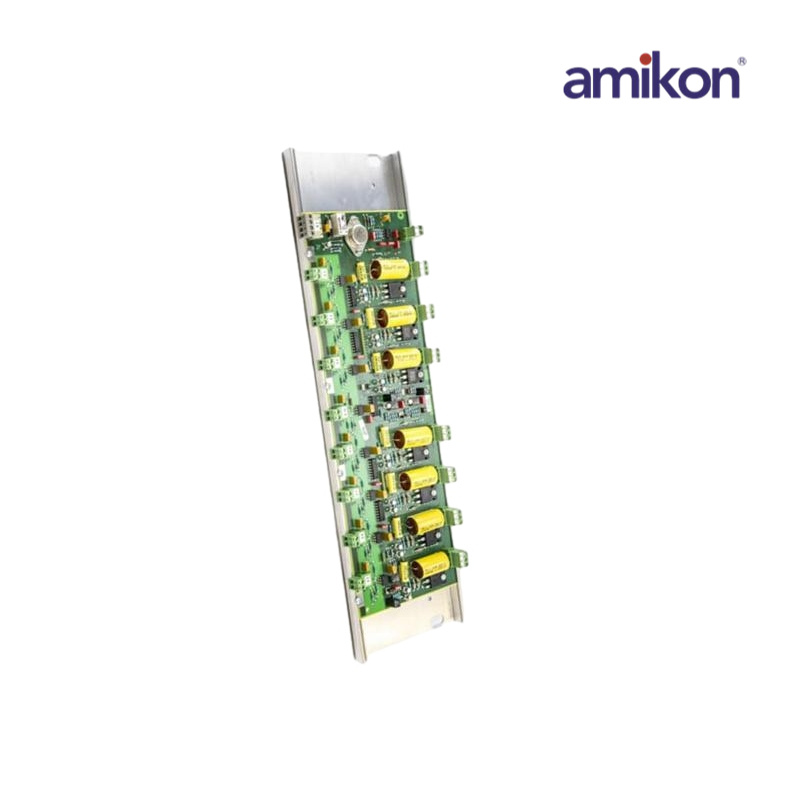

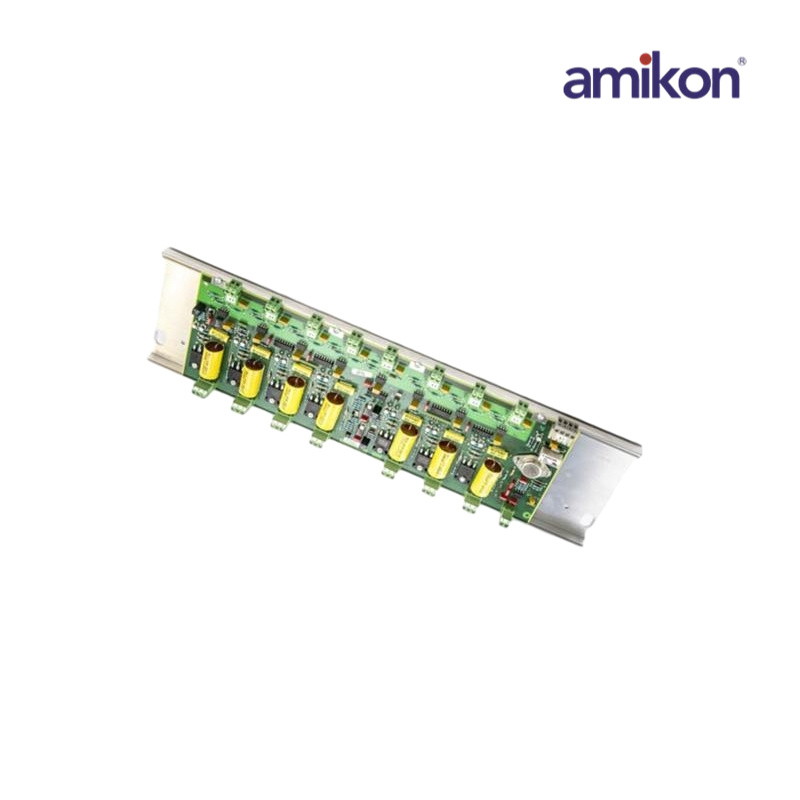

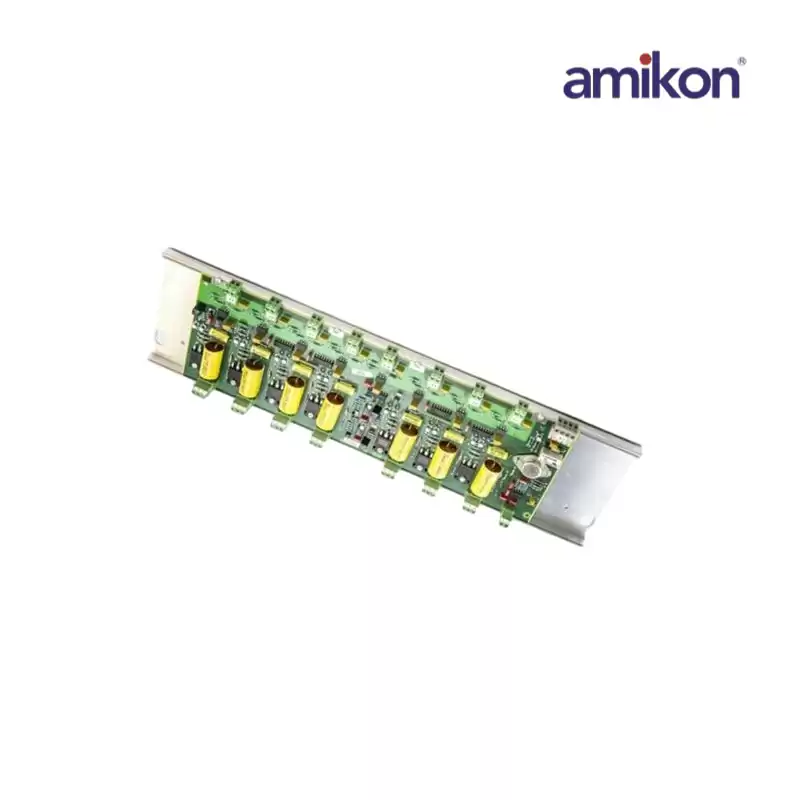

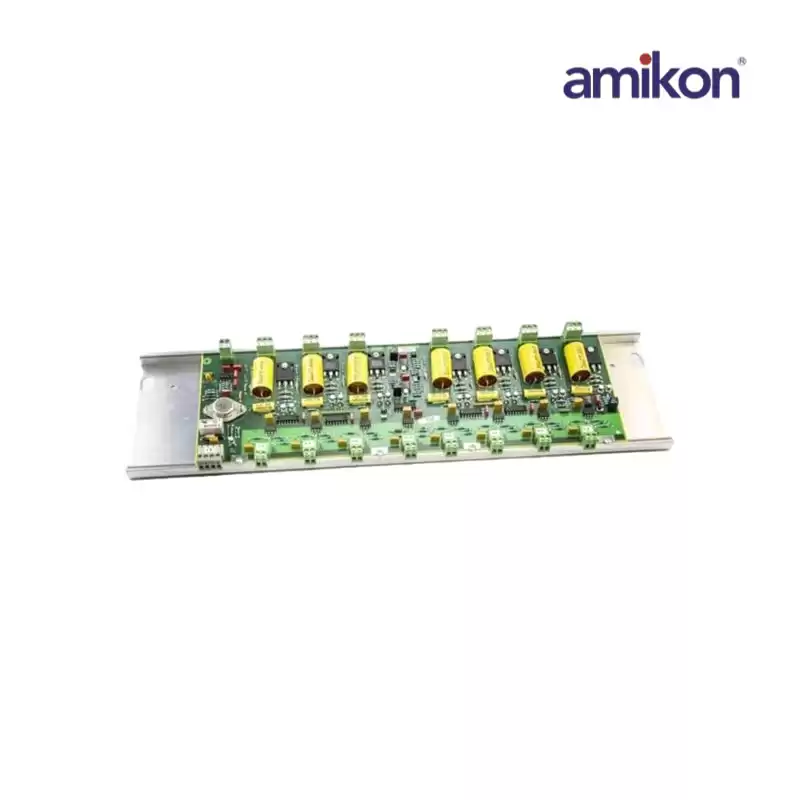

The DSTS103 57150001-AD is a Trigger Pulse Amplifier. The Trigger Pulse Amplifier is done with jumpers S1 (AI1) and S2 (AI2): I = 0(4) - 20 mA, V = 0(2) - 10 V.The X50 screw terminal on the Control Interface Card SNAT 7600/7640 in the Control Unit.
(This terminal may have been routed to the optional Terminal Block X2 in the cabinet outside the Control Unit).The RS 485 serial communication bus; terminal X51 on Control Interface Card (This terminal may have been routed to the optional Terminal Block X2 in the cabinet outside the Control Unit).
|
|
