Overview

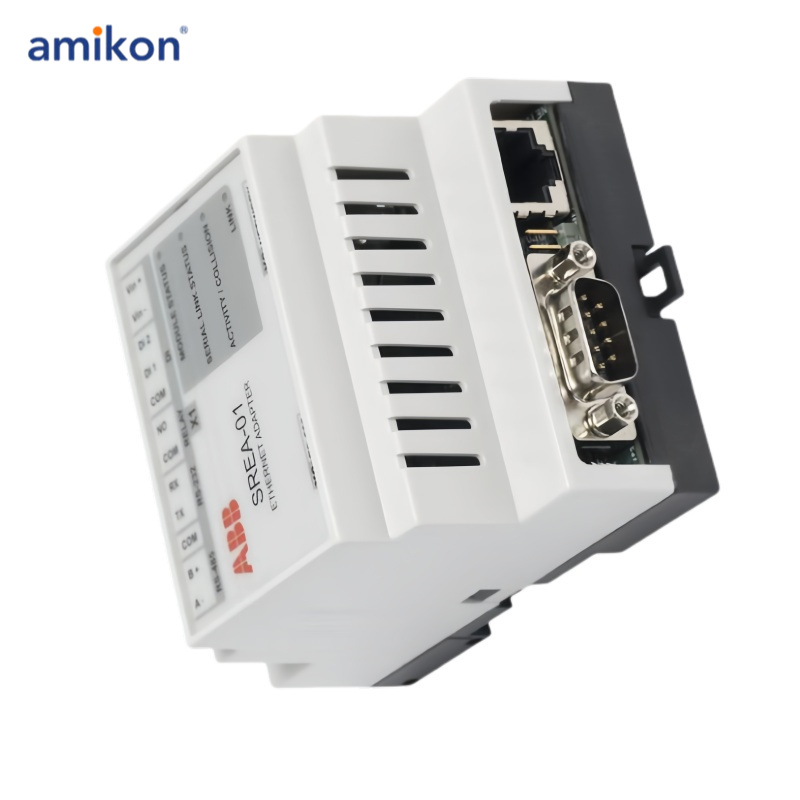

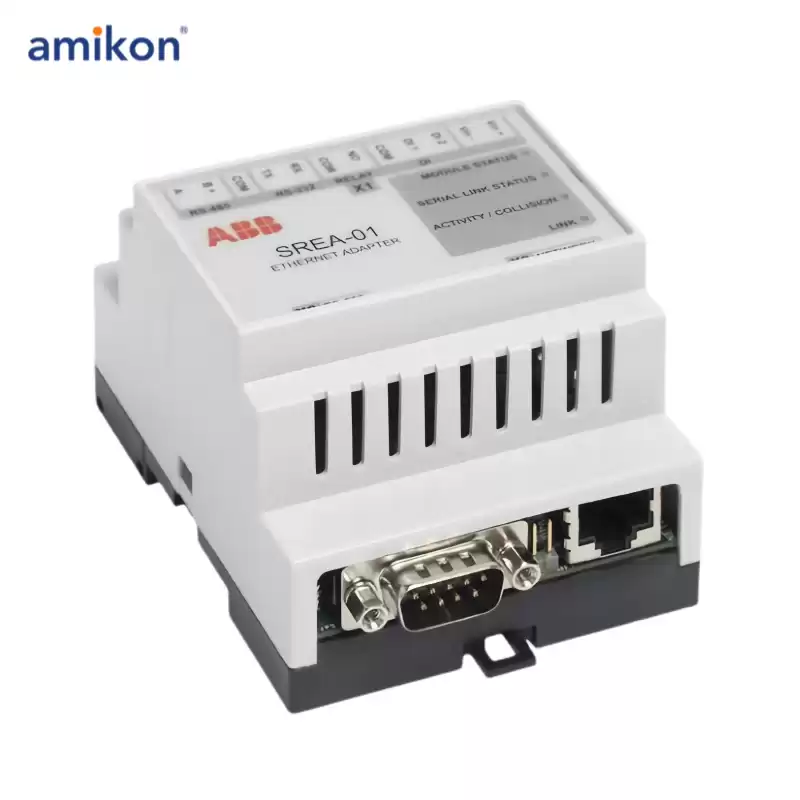

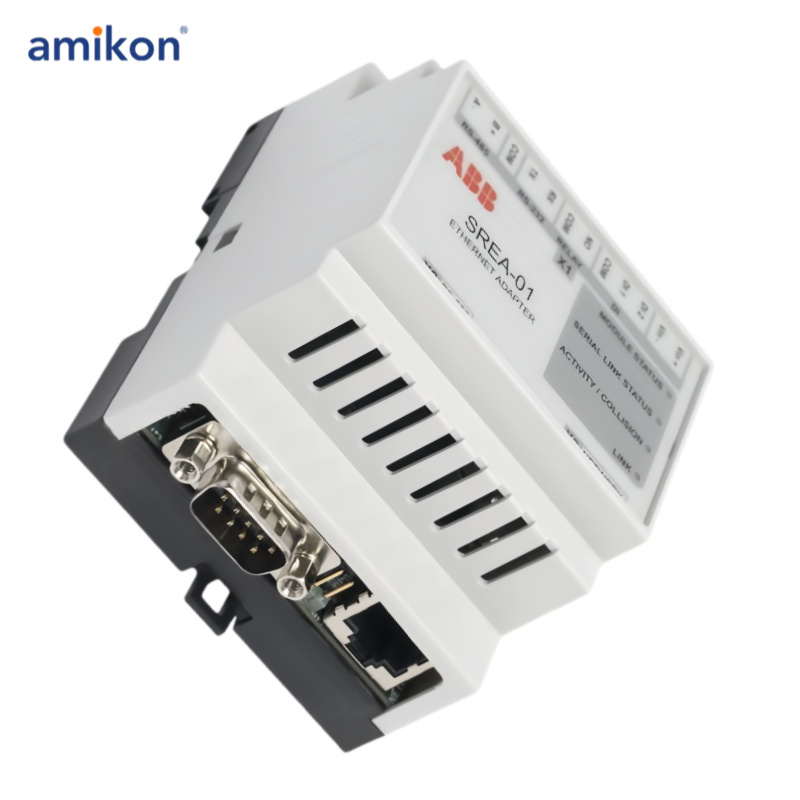

The SREA-01 Ethernet Adapter module
-
SREA-01 is a remote interface device that can connect to 1…10 ABB drives and provide a browser-based service and monitoring interface. The interface provides access to drive parameters, actual values, drive status, faults and data. In addition it has the ability to collect logging data, send alarms and act as a Modbus TCP gateway.
-
SREA-01 connects to the drive by using serial Modbus connection. The connection can be either point-to-point RS-232, multi-drop RS-485 or Ethernet. SREA-01 can be accessed over Ethernet network or GSM/GPRS/analog modem.
Key features of SREA-01
Data logging
• Sample intervals from 10 seconds to 60 min
• Graphical browser-based log viewer
• Sends logs by E-mail or FTP
• Data is saved in Microsoft Excel compatible CSV files.
Alarms
• Customizable alarm conditions, messages and recipients
• Alarms can be sent by SMS, E-mail or SNMP.
Web browser based remote monitoring
• Shows actual values, parameters, status of the drives and fault logs
• Drive summary that shows the status of all drives
• User can create custom views that show the most important data values
• Fault logs and parameter configurations can be saved to the PC
Modbus TCP gateway
• All drive parameters and actual values can be accessed by Modbus TCP clients.
Compatibility
For SREA-01 Ethernet Adapter compatibility, see the drive template guide.
Delivery check
The option package for the SREA-01 Ethernet Adapter module contains:
• Ethernet Adapter module, type SREA-01
• Ethernet cable for connecting the PC to the SREA-01 for configuration. Straight
Ethernet cable can be used permanently for connecting SREA-01 to Ethernet
switch or hub.
• A cable with RJ45 connector to connect to the drive panel port
• A 120 ohm terminating resistor for RS-485 networks
• Quick Installation Sheet
• CD-ROM with this manual, ABB IP Configuration Tool and supplemental data.
