ABB | FDPI-02 | FIELDBUS KIT

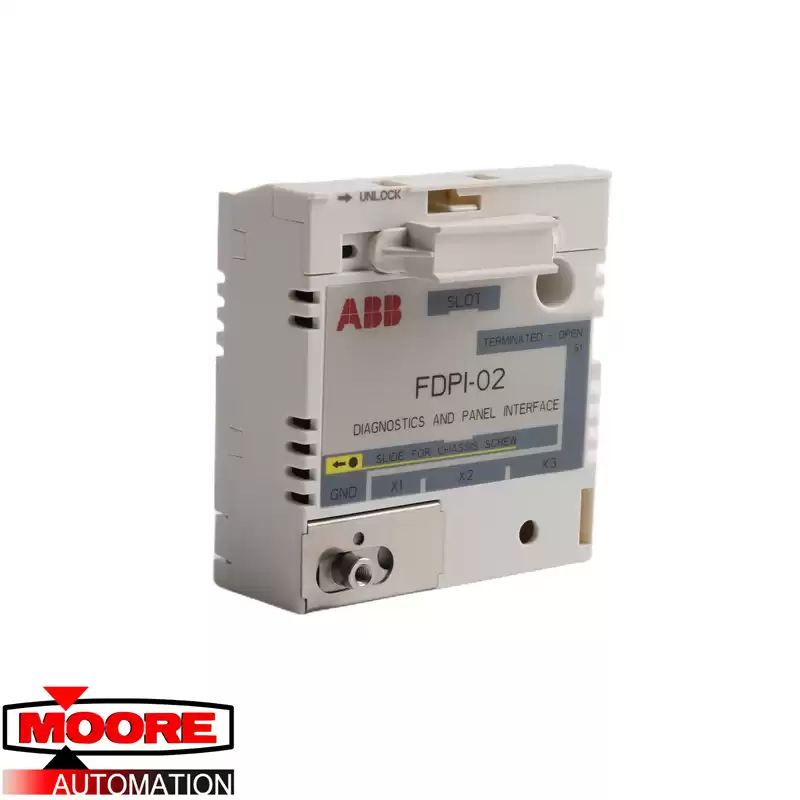

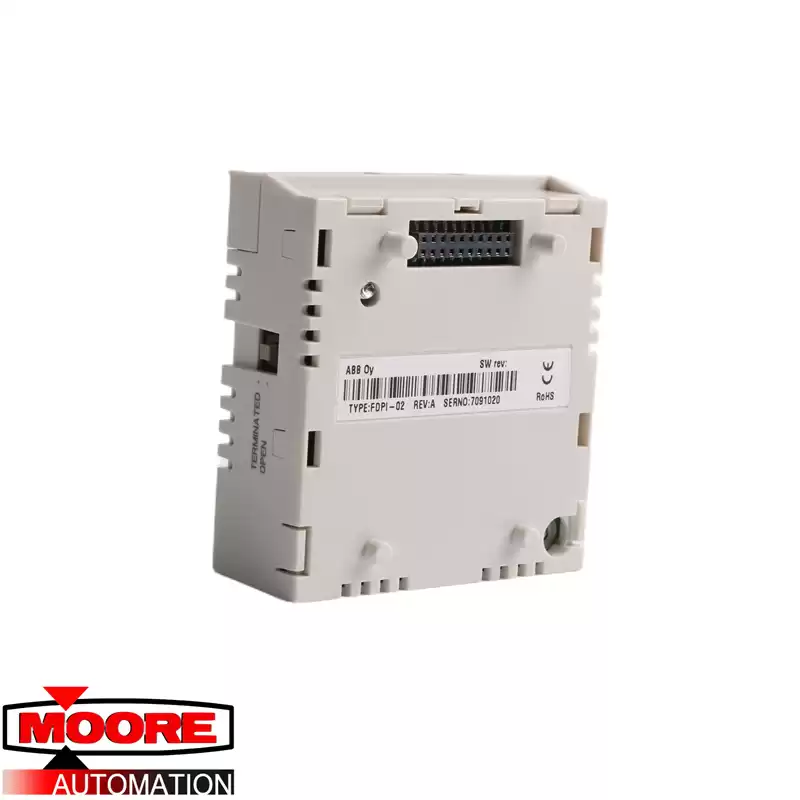

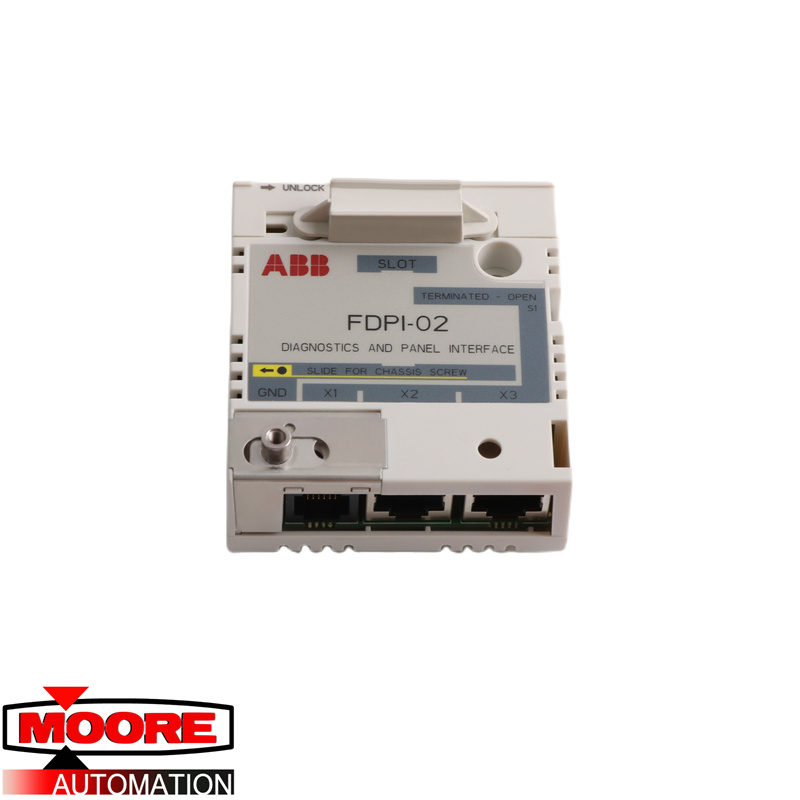

FDPI-02 diagnostics and panel interface is used for branching the RS-485 panel bus and chaining a control panel or PC tool to several drives. The interface unit provides a feed-through connection between a control unit and an F-type option module. It is compatible with the ZCU-xx and BCU-xx control units. The interface unit is installed in an option slot of the control unit. A small F-type option module can then be installed on top of the interface unit. The interface unit has one RJ-11 and two RJ-45 connectors. The RJ-11 connector is used for connecting the control unit. The RJ-45 connectors support a daisy chain bus for connecting a PC or a control panel (simultaneous control panel and PC communication is not allowed).
