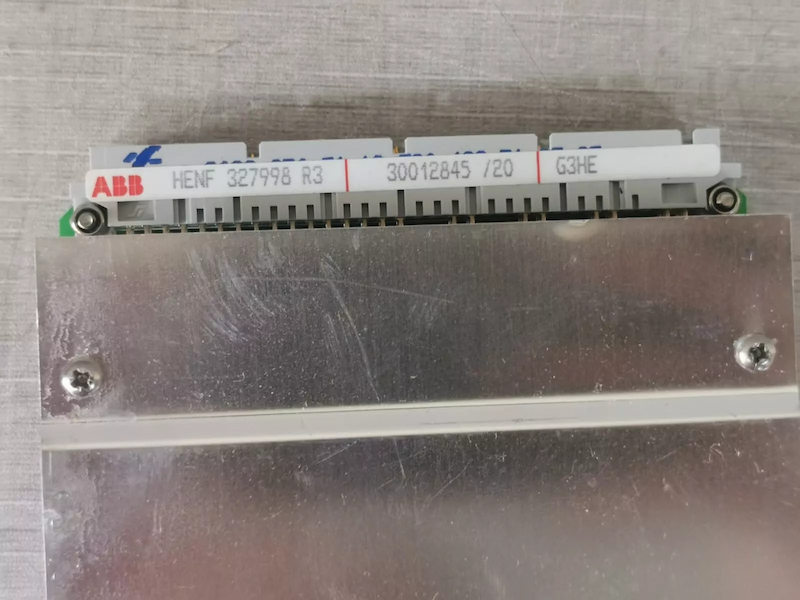

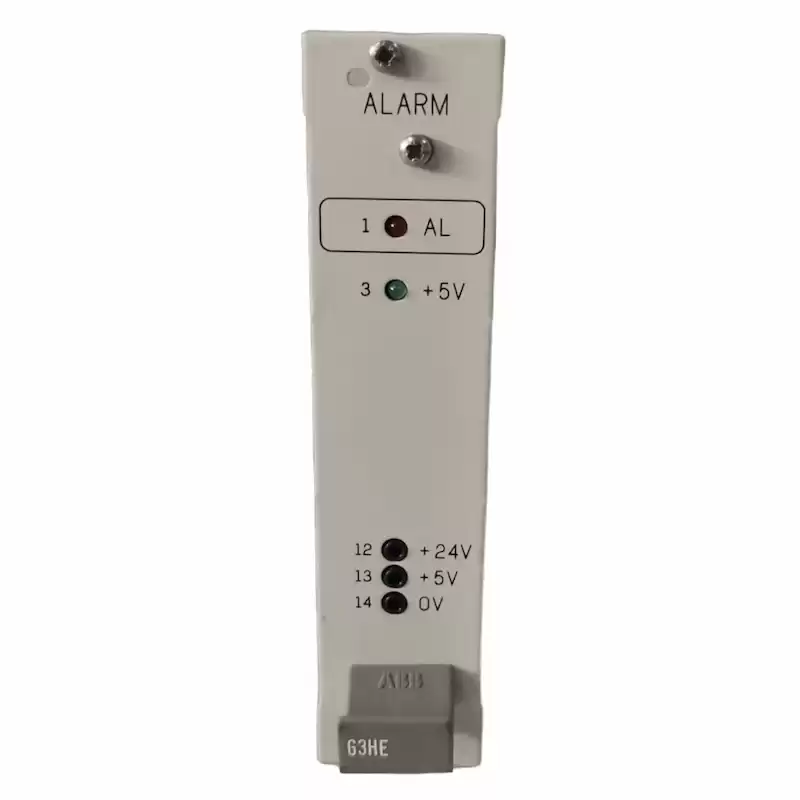

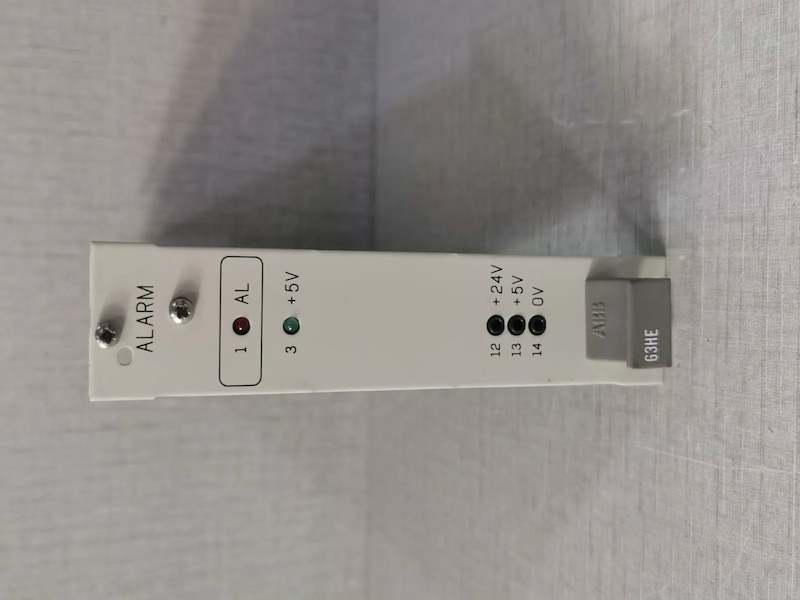

G3HE HENF327998R0003 Alarm Interface Module
The G3HE HENF327998R0003 is a alarm interface module, it includes a 24 V / 5 V switching regulator, various voltage monitoring circuits, two alarm contacts and two unblocking outputs.
The alarm relays are normally energized and reset in the event of an alarm due to a reduction in the +24 V or 5 V supplies or the generation of a COMMON ALARM. A pick-up delay of either 80 ms to 10 s can be selected on a DlL switch. The reset delay is 2.5 seconds.
The unblocking outputs have an adjustable pick-up delay and adjustable latching time. The times are set by appropriate choice of resistors mounted on soldering posts. The pre-set values do not normally have to be changed. The duration of the unblocking impulse set in the works is approx. 200 ms.
To protect the unblocking contacts from damage due to excessively high making currents or capacitive cable discharge currents, there is a resistor mounted on soldering posts in series with each contact.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
G3HE |
| Ordering Information |
HENF327998R0003 |
| Product Catalog |
NSD70D |
| Description |
Alarm Interface Module |
| Voltage |
24 Vdc |
| Current |
200 mA |
| Dimensions |
100 mm x 30.5 mm x 160 mm |
| Weight |
0.4 kg |
