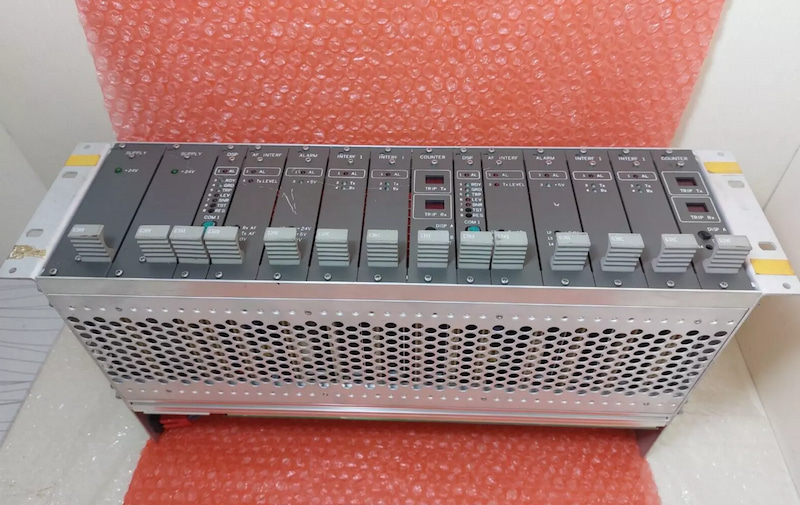

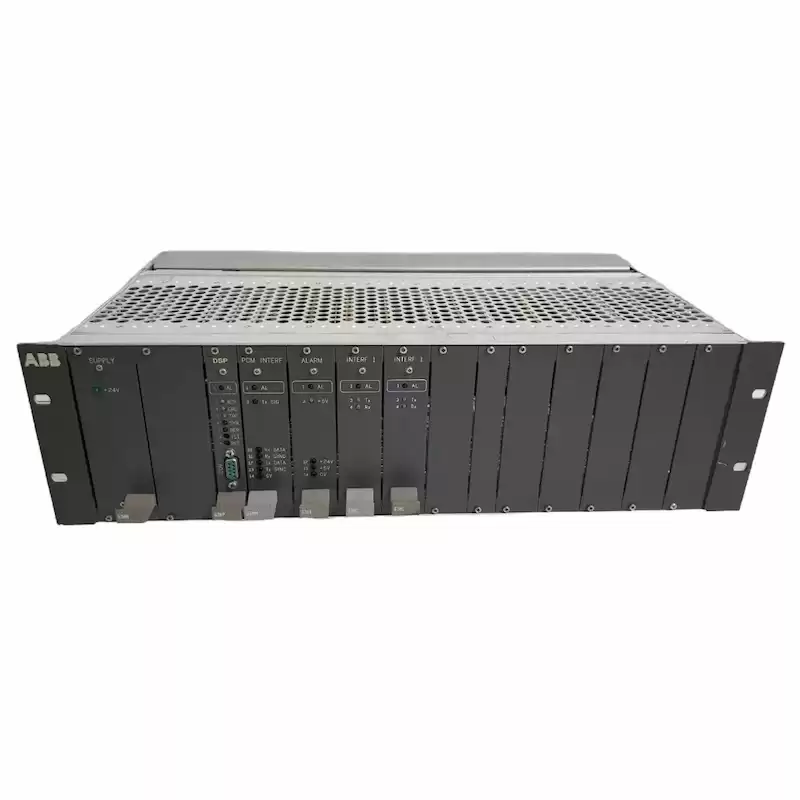

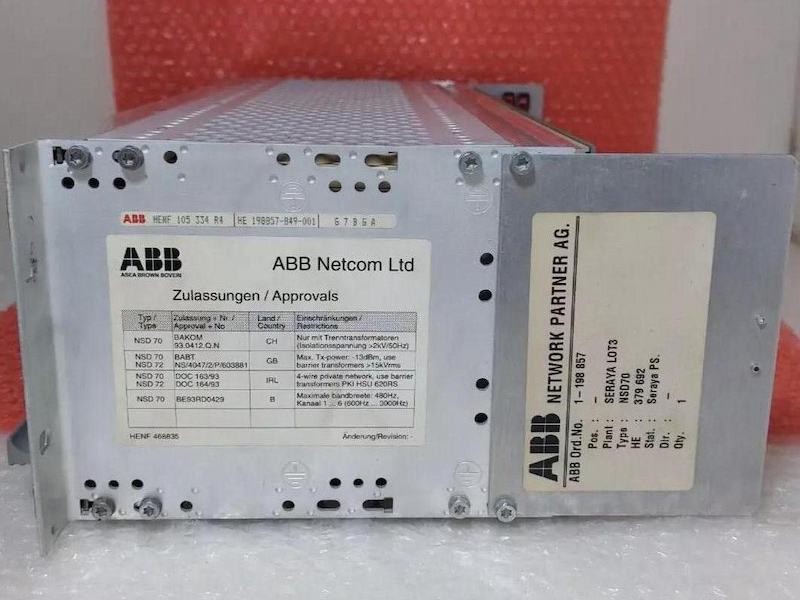

G7BGA HENF105334R0010 Equipment Rack
The G7BGA is a equipment rack, the rack assemblies are 19" wide and 3U high, corresponding to 133.4 mm, and have a depth of 245 mm including the depth of the side plates. Provision is made for fiting an optionally available plate with a strip along the lower edge of the rack for labeling the units, which increases the overall height of the rack by one ASA division(1 ASA division=1U= 44.5 mm). Also available are a cable duct and a screening cover for the backplate.
The rack G7BGa is fitted with a wiring PCB type G1CY and is able to accommodate two independent NSD 70D units or a single NSD 70D unit with up to 6 commands. When two NSD 70D's are used in a T-station, the corresponding signals are linked by jumper plugs on the backplate PCB.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
G7BGA |
| Ordering Information |
HENF105334R0010 |
| Product Catalog |
NSD70D |
| Description |
Equipment Rack |
| Voltage |
24 Vdc |
| Current |
0.35 A |
| Dimensions |
133 mm x 245 mm x 45 mm |
| Weight |
6 kg |
