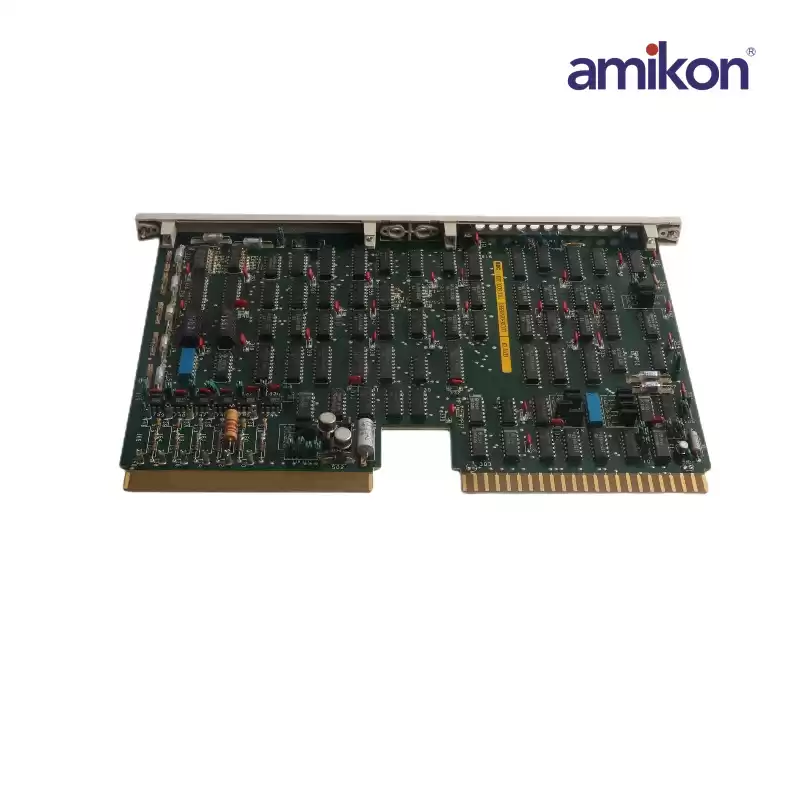

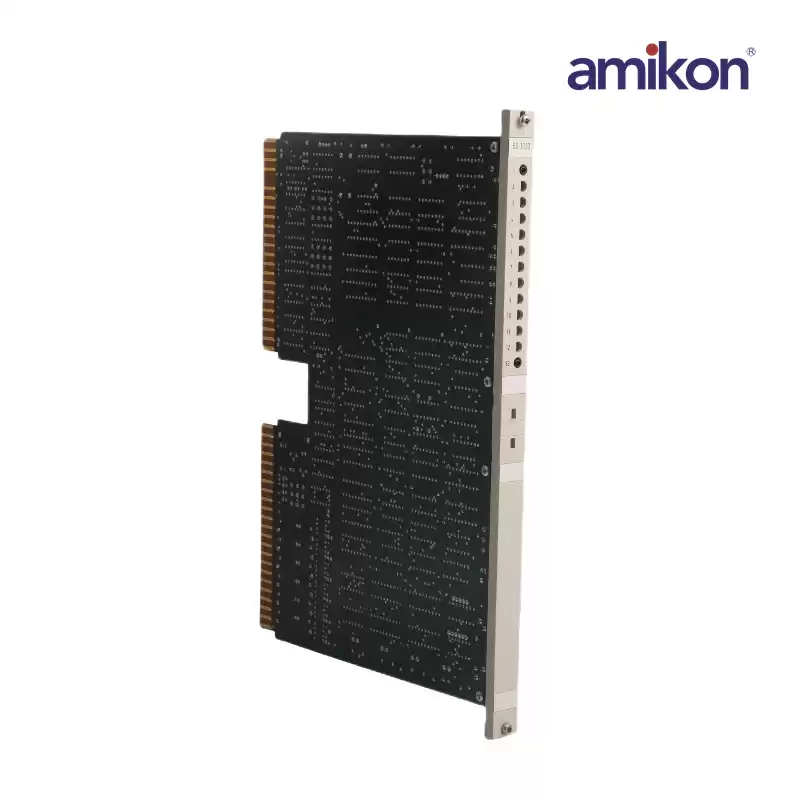

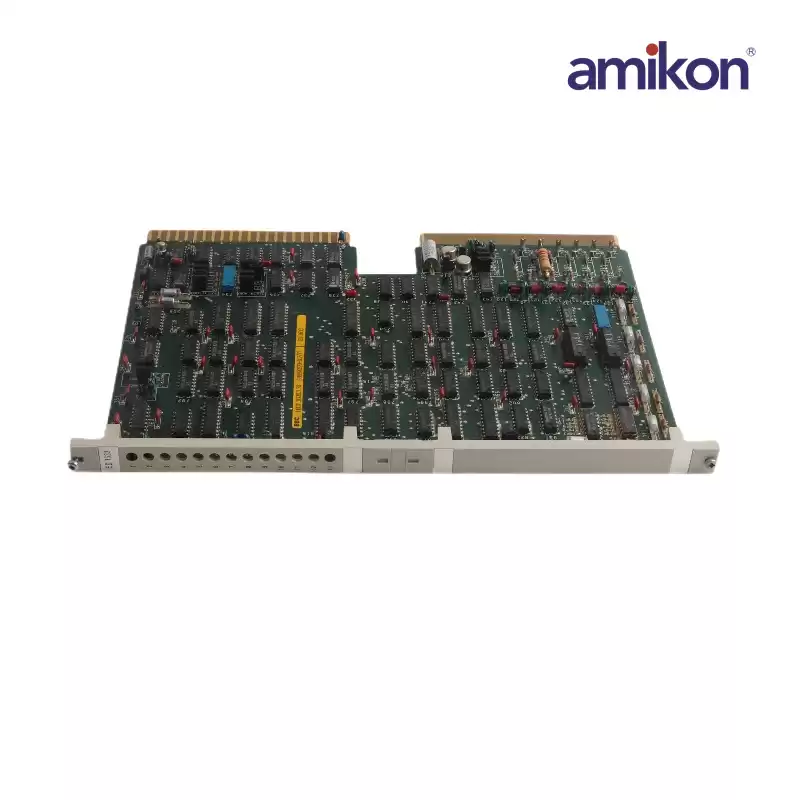

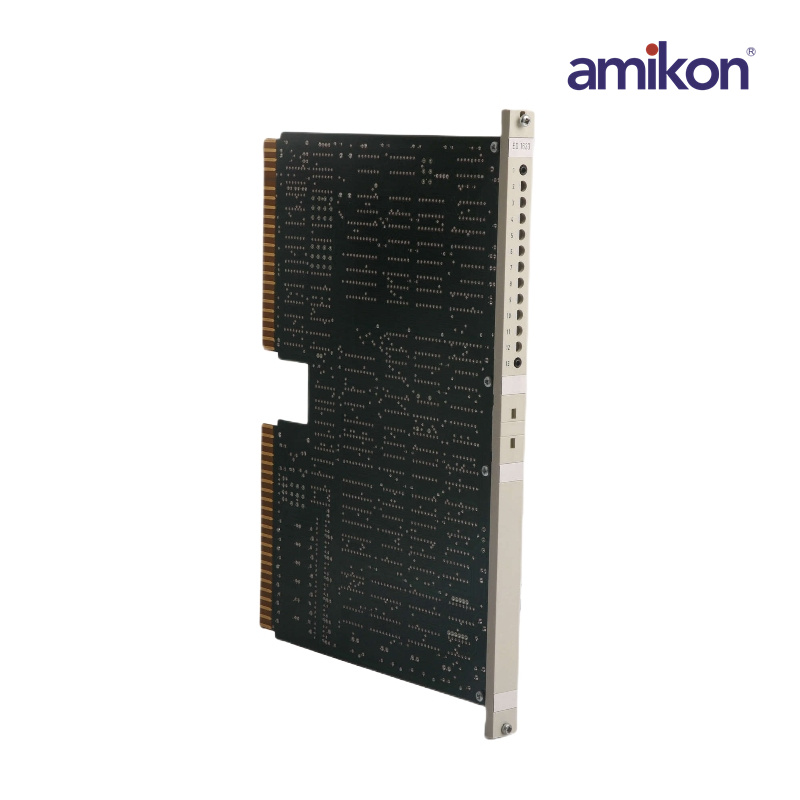

ABB HEDT300813R1 ED1633 Processor Module

Describe

The HEDT300813R1 ED1633 is Processor Module. In the field of automation and process engineering, required field signals have to be often collected from far-strewn subplants. With the conventional point-to-point wiring technique, which as a rule involves the transmission of signals via 2 lines, long lengths of cable and a lot of distribution boxes and marshalling unit are required.

The gateway is here the link between the input and output modules and the PLC or DCS. It takes over the transfer of the internal bus protocol of the input and output modules into the external bus protocol. This ensures the direct coupling to the bus system used for PLC and DCS. Later matching of the field bus protocol to future standards becomes easy by just changing the gateway.
