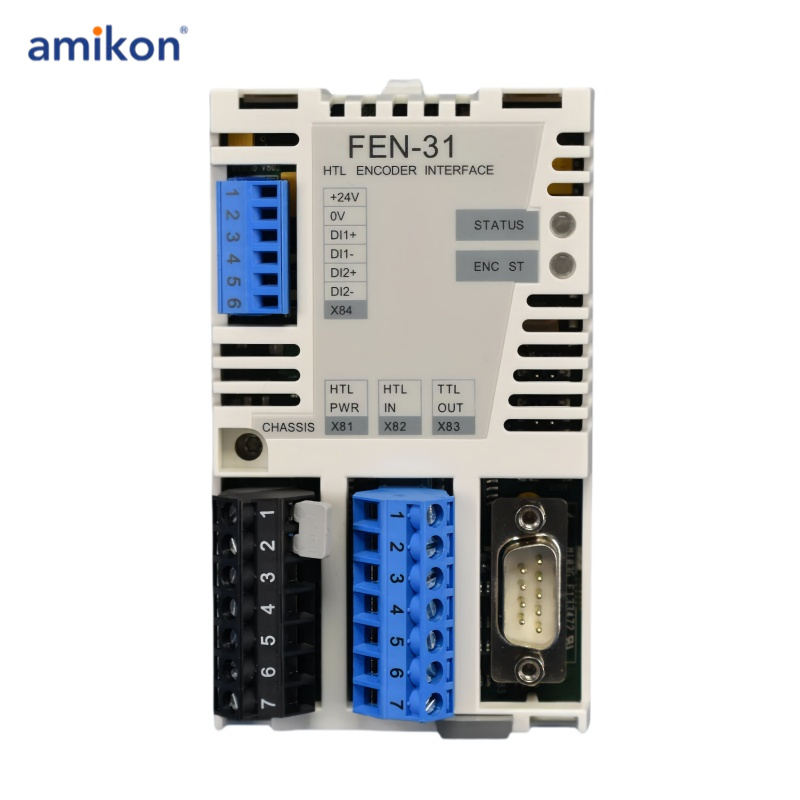

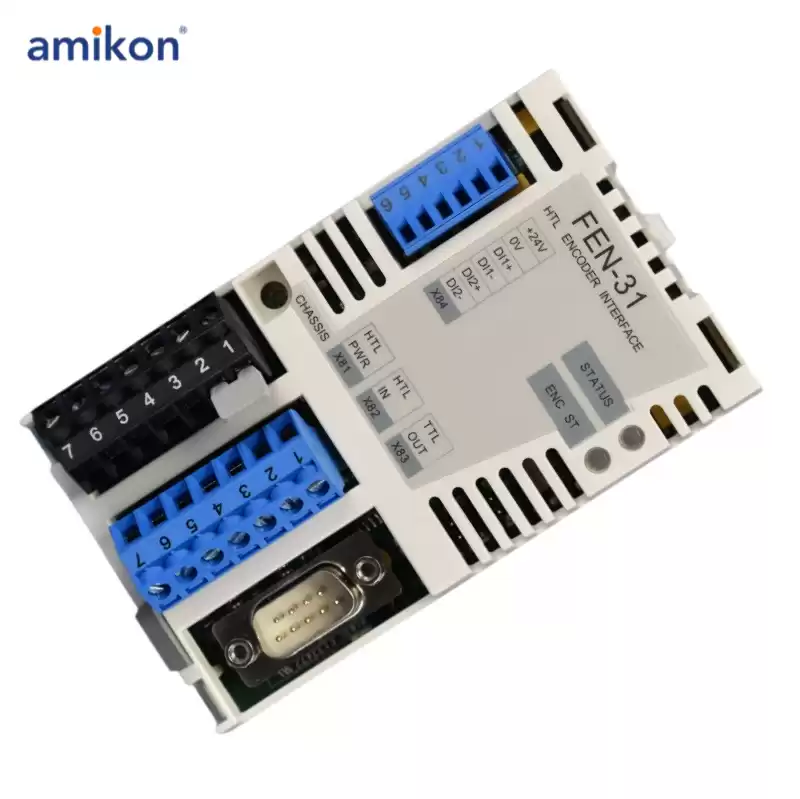

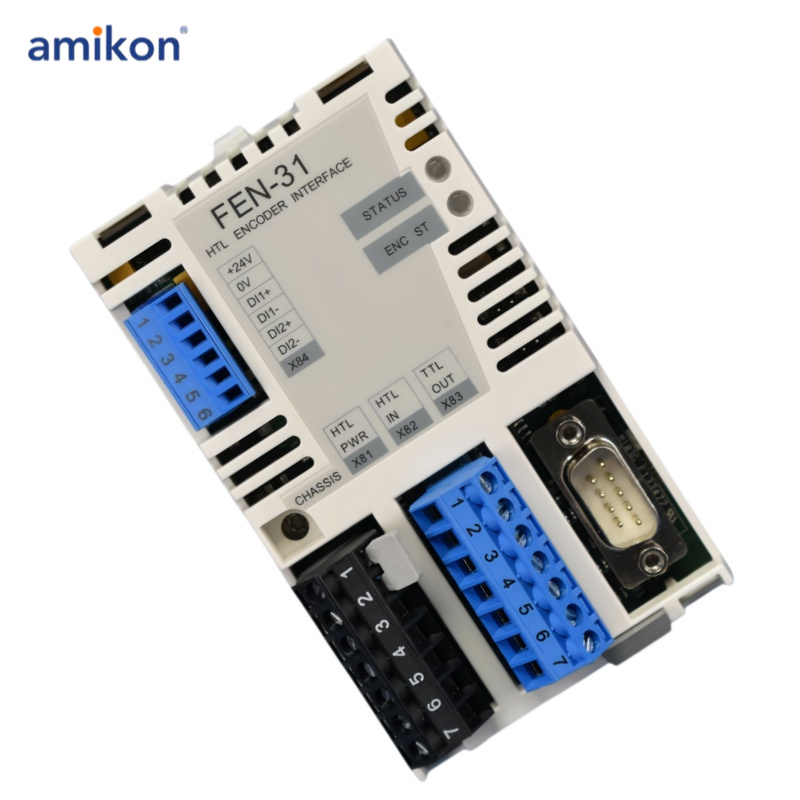

FEN-31 is an interface between the control board and an HTL encoder. It supports various types of HTL encoders. A PTC, Pt1000 or KTY temperature sensor can be attached to one of the connections of the FEN-31 interface.
FEN-31 offers an RS-422-standard-compliant TTL encoder emulation output and two digital inputs. It also includes cable fault diagnostics for some HTL encoder types.See the drive Firmware manual for details.
Compatibility
FEN-31 is compatible with the following encoders:
• Differential push-pull HTL encoders
• Single-ended push-pull HTL encoders
• Open collector HTL encoders
• Open emitter HTL encoders
• Compatible drive types
Note: Before mounting the option module, set the supply voltage jumpers as described above.
The option module is to be inserted into the option slot of the drive. See the drive hardware manual for more information.
The module is held in place with plastic retaining clips, a locking tab and one screw.
The screw also provides the earthing of the cable shields connected to the module and interconnects the GND signals of the module and the drive.
