Weight: 0.28KG
|
Dimensions ：12.2x9.2x6.3cm
|
Overload current：5-25 mA
|
Condition:100% New Original
|
Manufacturer/Brand：ABB
|
|
Full Description:Output unit, eight transistor outputs 24 VDC / 2A max. 8A for eight outputs isolated short-circuit proof, 24 VDC power supply
|
|

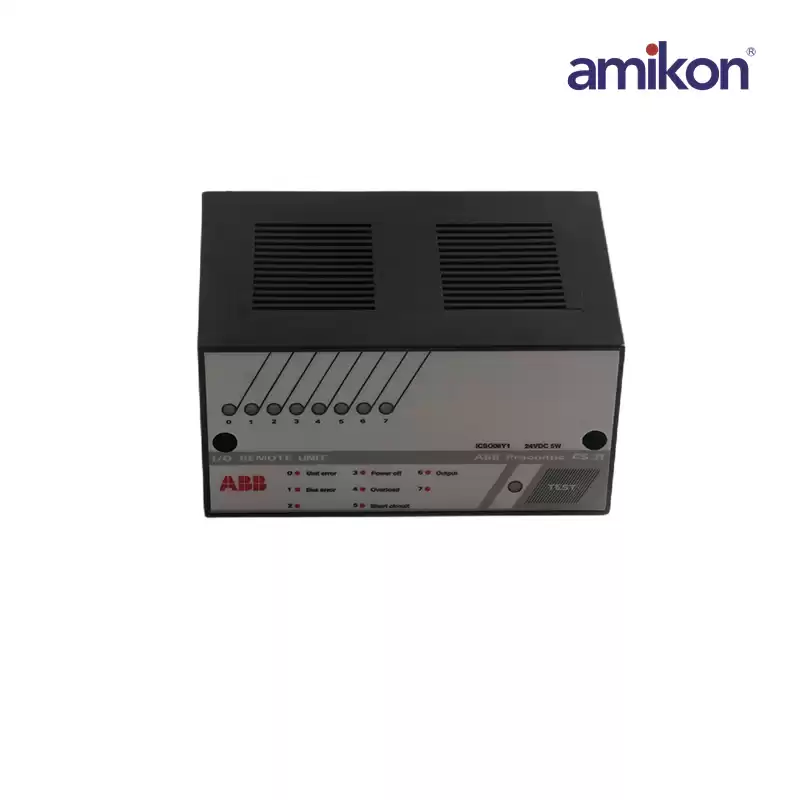

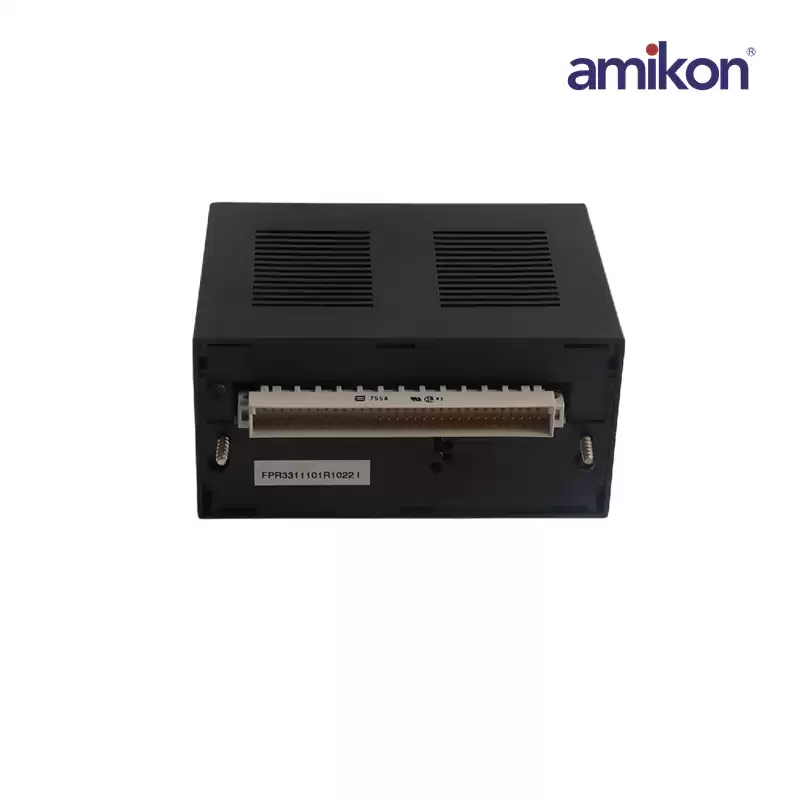

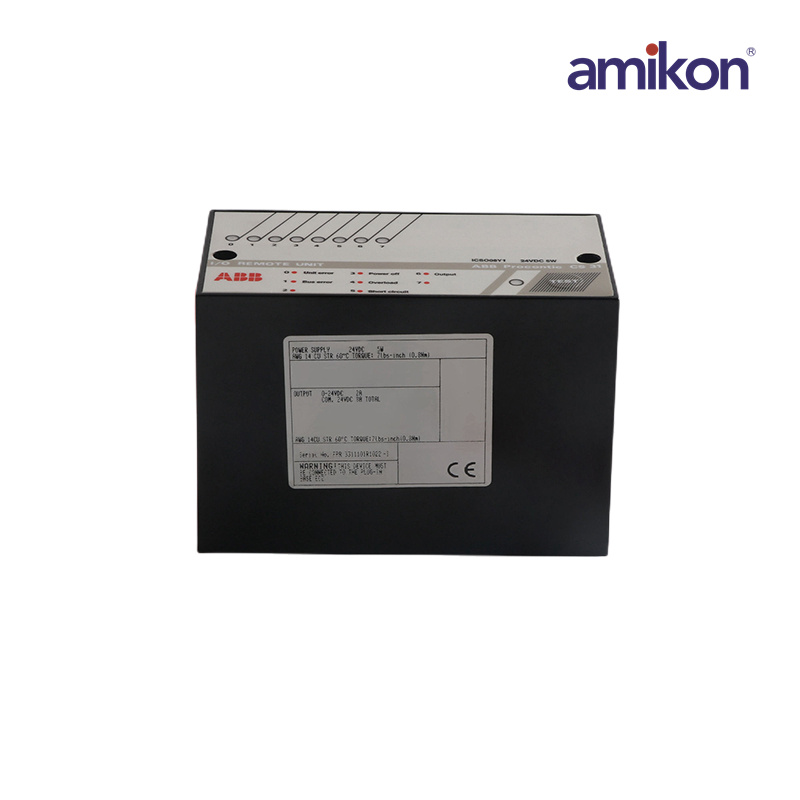

ABB ICSO08Y1 Binary output units
|
he ICSO08Y1 is Output Module.The digital output module ICSO 08 Y1 is used as a remote module on the CS31 system bus.The module is available for supply voltages of 24 V DC and 230 V AC.The CS31 system bus interface is electrically isolated from the rest of the module.
The module has to be mounted on the plug-in base ECZ and then fastened with two screws. The plug-in base has a mechanical coding which prevents that a module can be plugged-in with another supply voltage than set on the ECZ.
|
