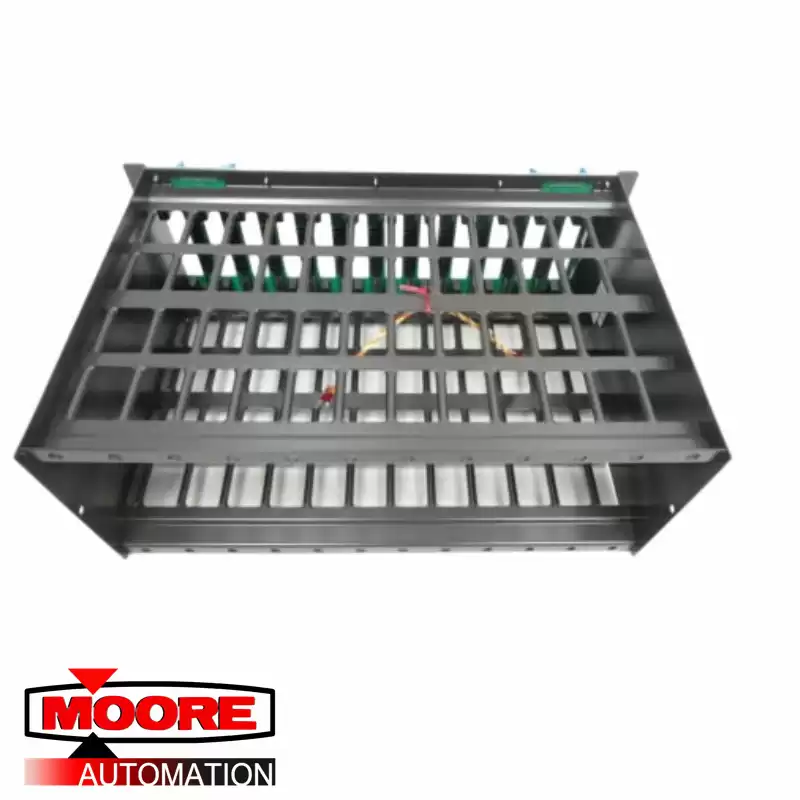

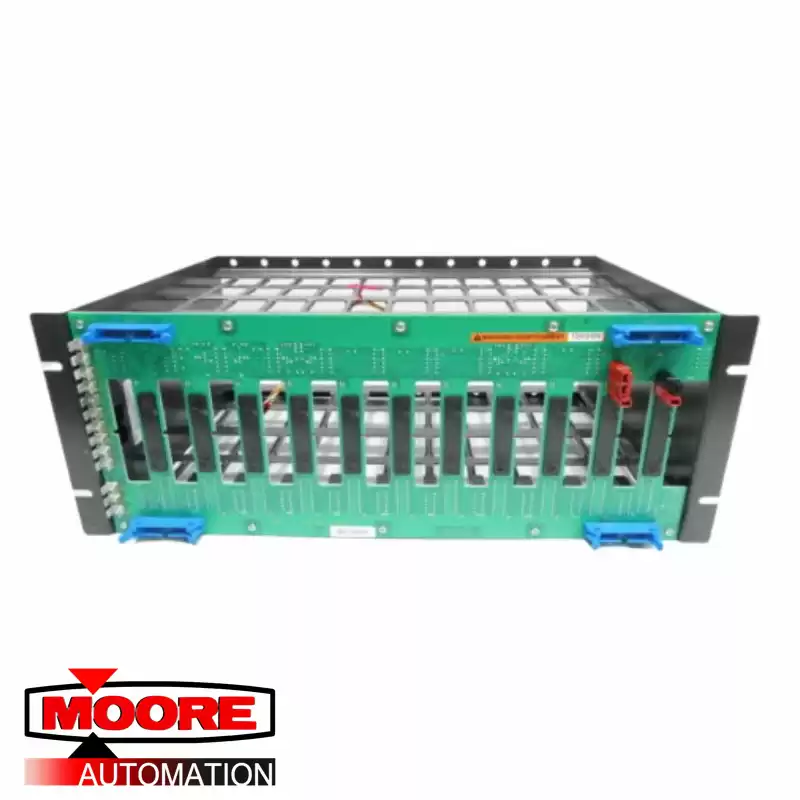

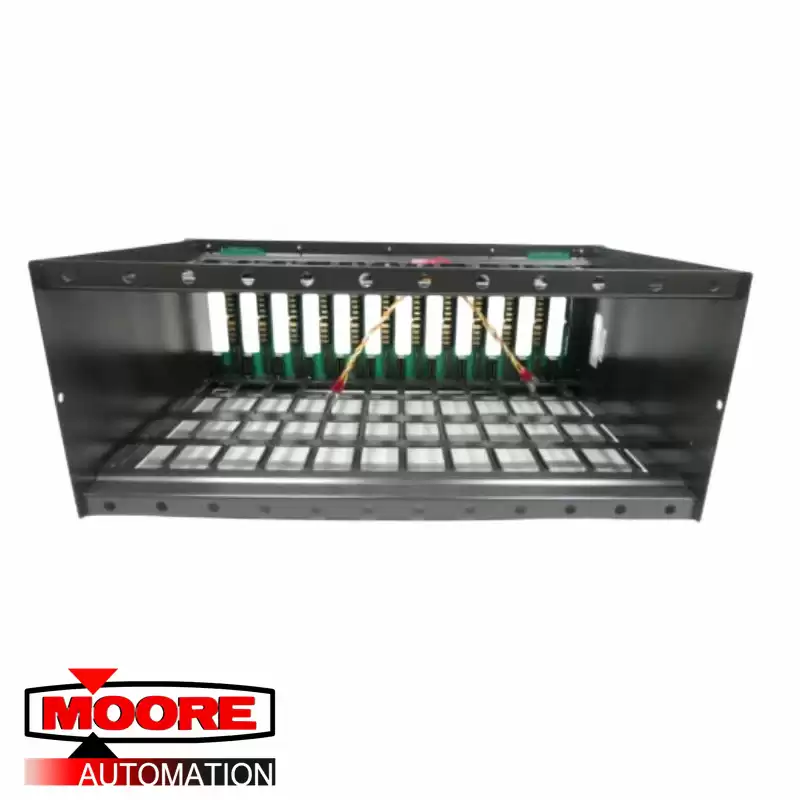

ABB IEMMU11 Module Mounting Unit - Rear Mounting

The IEMMU11, IEMMU12, IEMMU21, and IEMMU22 are module mounting units used to house standard INFI 90 ® OPEN system modules and the BRC-100 Harmony Bridge Controller module of the Symphony™ Enterprise Management and Control System in system cabinets. The mounting units are available with a front or rear mount card chassis and are available with or without primary power distribution.

The IEMMU11, IEMMU12, IEMMU21, and IEMMU22 are module mounting units used to house standard INFI 90 OPEN system modules and the BRC-100 Harmony Bridge Controller module of the Symphony system in system cabinets.

The IEMMU11 and IEMMU12 module mounting units provide physical mounting for up to 12 system modules or ten system modules and a maximum of two IEPAS02, IEPDS01/02, IEPAF02, and IEPDF01/02 power modules. They also provide electrical distribution of I/O expander bus, module bus, and Controlway signals; distribution of regulated power supply voltages (+5 volts, +15 volts, –15 volts and 24 volts); and distribution of primary power.
