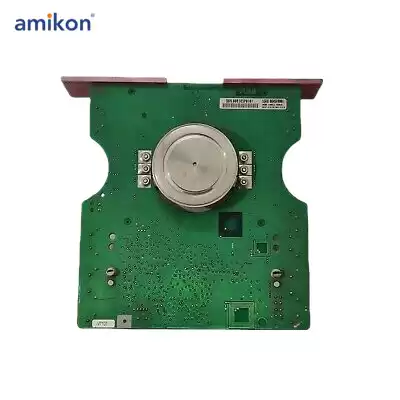

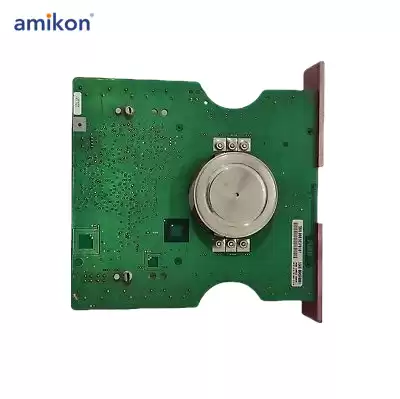

The ABB 5SHX0845F0001 IGBT Module is a high-performance power semiconductor device designed for use in high-power industrial applications. It combines Insulated Gate Bipolar Transistor (IGBT) technology with fast switching capabilities, providing efficient energy conversion and control in demanding environments. This module is known for its high voltage and current handling, reliability, and thermal management, making it ideal for use in motor drives, power inverters, and other heavy-duty industrial equipment. Its robust design ensures durability and long-term performance in harsh operating conditions.
Module Type:IGCT
Product ID:5SHX0845F0001
Order Number:3BHL000385P0101
Weight:0.6 kg
Dimensions (WxHxD):175.26 mm x 35.56 mm x 297.18 mm
Operating Temperature Range:-20°C to +60°C
Input Voltage Range:DC 24V to 60V
Output Current Capacity:Up to 100A
Insulation Class:Class B
Protection Level:IP20
Common questions:
1. What is the primary application of the 5SHX0845F0001 IGBT module?
The 5SHX0845F0001 is typically used in high-power industrial applications such as motor drives, power inverters, and energy conversion systems. Its fast switching capabilities and high efficiency make it ideal for controlling large electric loads in these environments.
2. What are the key advantages of using the 5SHX0845F0001?
The main advantages include its high current and voltage handling capacity, efficient thermal management, fast switching speeds, and overall reliability. These features make it well-suited for applications requiring precise control and energy efficiency.
3. How does the 5SHX0845F0001 handle thermal management?
The 5SHX0845F0001 is designed with efficient thermal management capabilities to ensure stable operation even under high-power conditions. It typically uses advanced cooling techniques like heat sinks or liquid cooling to dissipate heat effectively, enhancing its durability and performance.
