ABB IMCIS02 Control I/O Slave Module
The Control I/O Slave module (IMCIS02) brings four analog and three digital process field signals into the Infi 90 system for processing and monitoring. It outputs four digital and two analog signals for process control. The Control I/O Slave (CIS) module is an interface between the process and the Infi 90 Process Management System. Master modules perform the control functions; slave modules provide the I/O to the master modules.

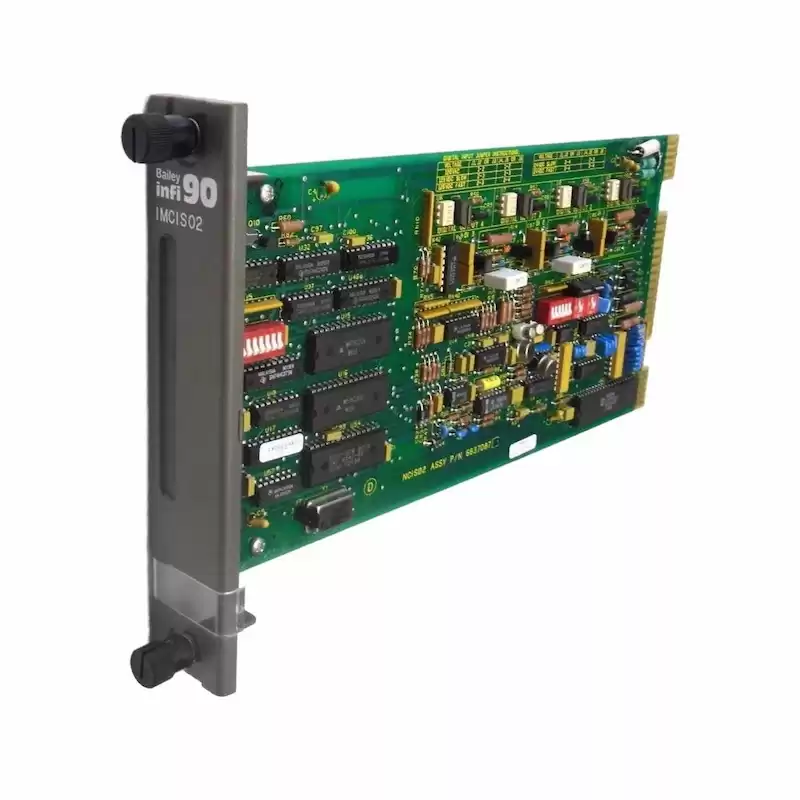

The CIS consists of a single printed circuit board (PCB) that occupies one slot in a Module Mounting Unit (MMU). A dipswitch on the PCB configures each of the analog outputs; jumpers configure each of the digital inputs. Each analog input is configured on its respective Termination Unit (TU) or Termination Module (TM).
Two captive screws on the faceplate secure the module to the MMU. A front panel LED indicates the module status.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
IMCIS02 |
| Ordering Information |
IMCIS02 |
| Product Catalog |
Infi 90 system |
| Description |
Control I/O Slave Module |
| Voltage |
±15 Vdc |
| Current |
2.4 VA |
| Dimensions |
73.6 mm x 358.1 mm x 269.2mm |
| Weight |
0.4 kg |
