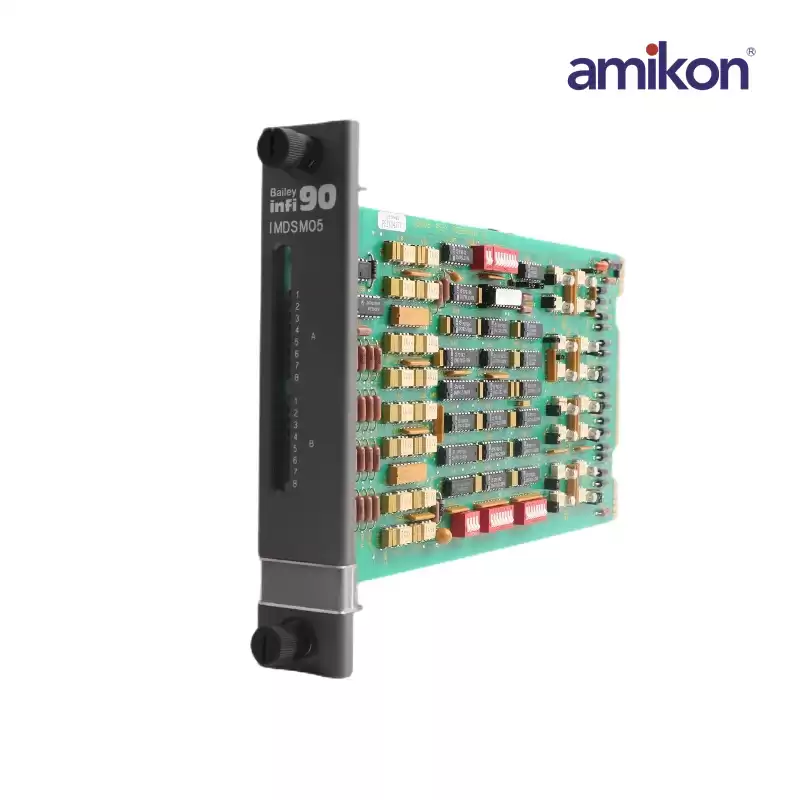

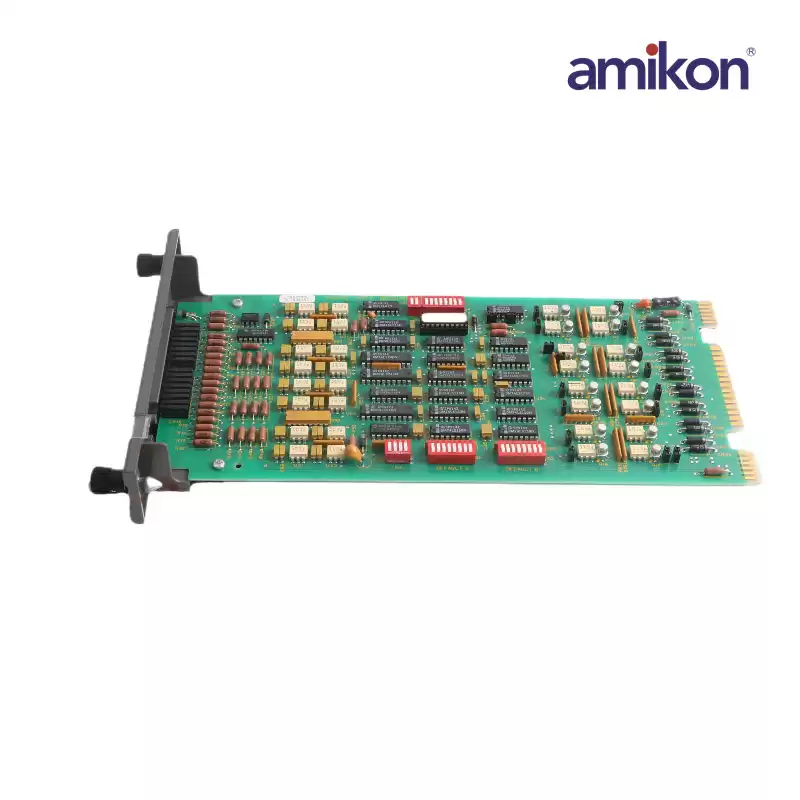

ABB IMDSM05 Bailey Infi 90 Digital Input Output Module

Manufacturer/Brand：ABB	Shipping Term：TNT DHL FEDEX EMS UPS
voltage: +5Vdc, 0.5A: +24Vdc, 125mA	Ambient Temperature: 0^o to 70^oC (32^o to 158^oF)
Dimensions ：3.5x31x17.5cm	Weight:0.28kg

The Digital Slave Module (IMDSM05) is an interface for up to sixteen digital I/O field signals to the Infi 90 Process Management System. These digital inputs and outputs are used by master modules to monitor and control a process.The DSM slave module is used with the Multi-Function Processor (MFP) and Logic Master Module (LMM). The input/output circuitry on the DSM allows it to handle signals between Infi 90 MFPs/LMMs and digital devices in the process system. The DSM also handles signals between MFPs/LMMs and Digital Logic Stations (NDLS02).
