ABB IMDSO01 Digital Output Module
The IMDSO01 Digital Output (DSO) Modules output eight isolated digital signals from the INFI 90 system to control a process. The signals provide digital switching (on or off) for process field devices. Control modules perform the control functions and I/O modules provide the input and output signals.

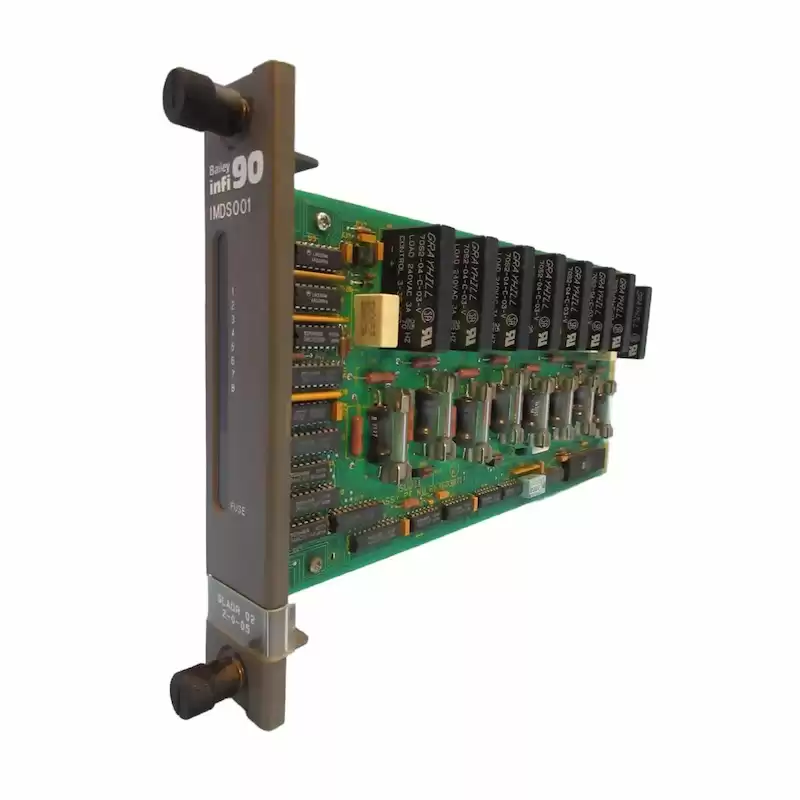

The DSO module is an I/O module that outputs eight separate digital signals through solid state relays mounted on the circuit board. These outputs can be used to control devices that in turn control the process.

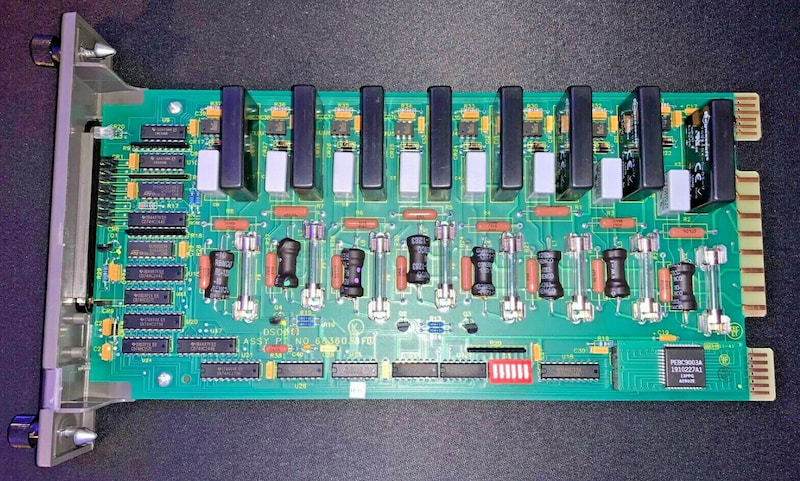

The DSO module is a single printed circuit board that occupies one slot in the module mounting unit. The circuit board contains circuitry, fuses and solid state relays that enable it to control field devices that control the process.

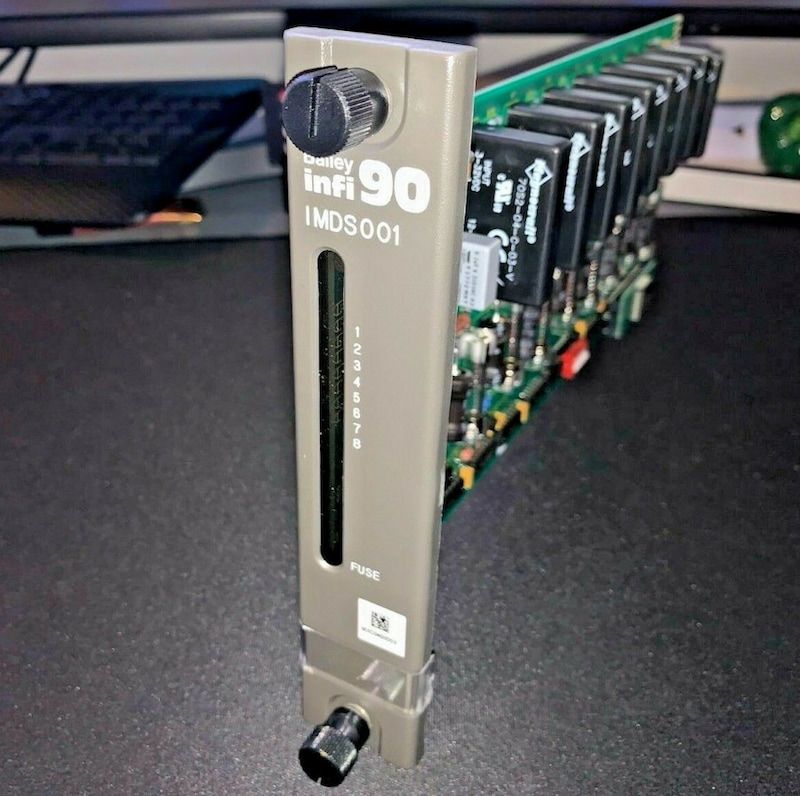

Two captive latching screws on the faceplate secure the DSO module to the module mounting unit. There are ten LEDs on the faceplate that display module status, fuse status and the status of each output.
The DSO module has three card edge connectors for external signals and power (P1, P2 and P3). Connector P1 connects to the common and +5 VDC power. Connector P2 connects the DSO module to the I/O expander bus. Connector P3 passes the digital output signals through a cable that is connected to a termination device. The output
signals are wired from the termination device to the controlled field device.
Features
• The DSO module provides eight separate digital output signals.
• The three DSO modules allow for the switching of three voltage ranges of signals.
The IMDSO01 module switches voltages of 24 to 240 VAC.
The IMDSO02 module switches voltages of four to 60 VDC.
The IMDSO03 module switches voltages of five to 160 VDC.
• Front panel LEDs provide a visual indication of the module status to aid in system testing and troubleshooting.
• User-defined default states.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
IMDSO01 |
| Ordering Information |
IMDSO01 |
| Product Catalog |
INFI 90 system |
| Description |
Digital Output Module |
| Voltage |
5 Vdc |
| Current |
1 W |
| Dimensions |
73.6 mm x 358.1 mm x 269.2mm |
| Weight |
0.4 kg |
