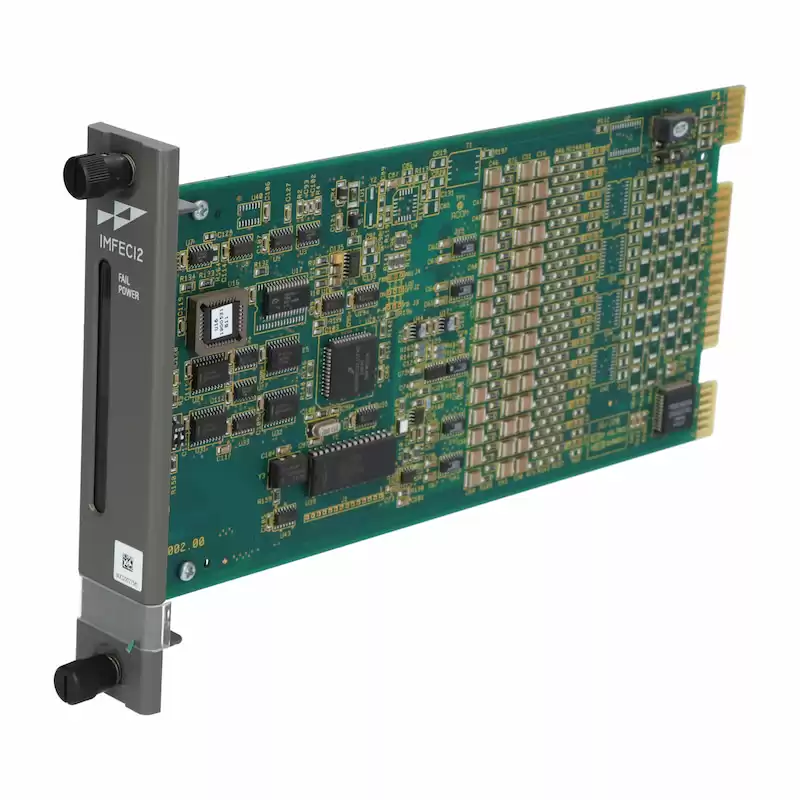

ABB IMFEC12 Analog Input Module
The IMFEC12 Analog Input Module supplies 15 field inputs to the INFI 90 ® OPEN strategic process management system.
The IMFEC12 module interfaces to conventional transmitters and standard analog inputs. It links process data and communication from field devices to all multifunction processors (MFP), or the IMMFC03, IMMFC04 and IMMFC05 multifunction controller (MFC) modules. The IMFEC12 module can be used as a direct replacement for the IMASI02 module; however, baseband communications are not supported.
The IMFEC12 module accepts inputs from conventional transmitters (BC, EQ and PT) and standard analog inputs of 4 to 20 milliamps, 1 to 5 VDC, 0 to 1 VDC, 0 to 5 VDC, 0 to 10 VDC and -10 to +10 VDC. The IMFEC11 has all the functionality of the IMFEC12 module but also provides FSK communications for interface to Bailey-Fischer & Porter smart transmitters and other smart devices.
FUNCTIONAL
• Module inputs/outputs
• Communication circuitry
• Microprocessor and control logic
• Analog-to-digital converter
• I/O expander bus interface
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
IMFEC12 |
| Ordering Information |
IMFEC12 |
| Product Catalog |
INFI 90 ® OPEN |
| Description |
Analog Input Module |
| Voltage |
±15 Vdc |
| Current |
1 W |
| Dimensions |
22.9 cm x 5.1 cm x 33.0 cm |
| Weight |
0.3 kg |
