The IMMPI01 Multifunction Processor Interface module handles the I/O interface between the host computer and the INICT03 module.The IMMPI01 module supports either SCSI or RS-232-C computer interface. When communicating through the RS-232-C port, the module can act as data communication equipment (DCE) or data terminal equipment (DTE).

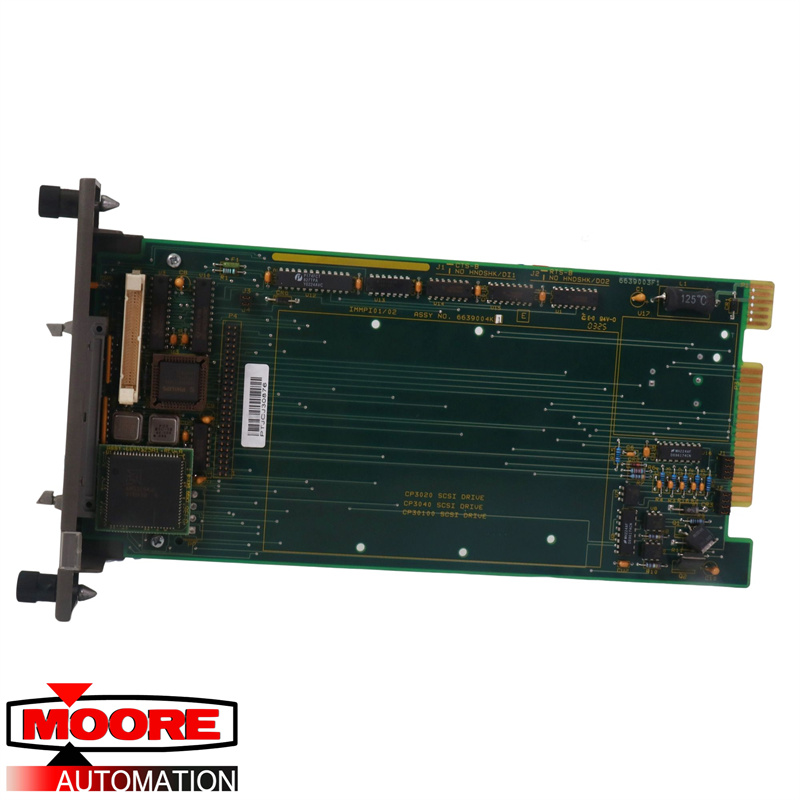

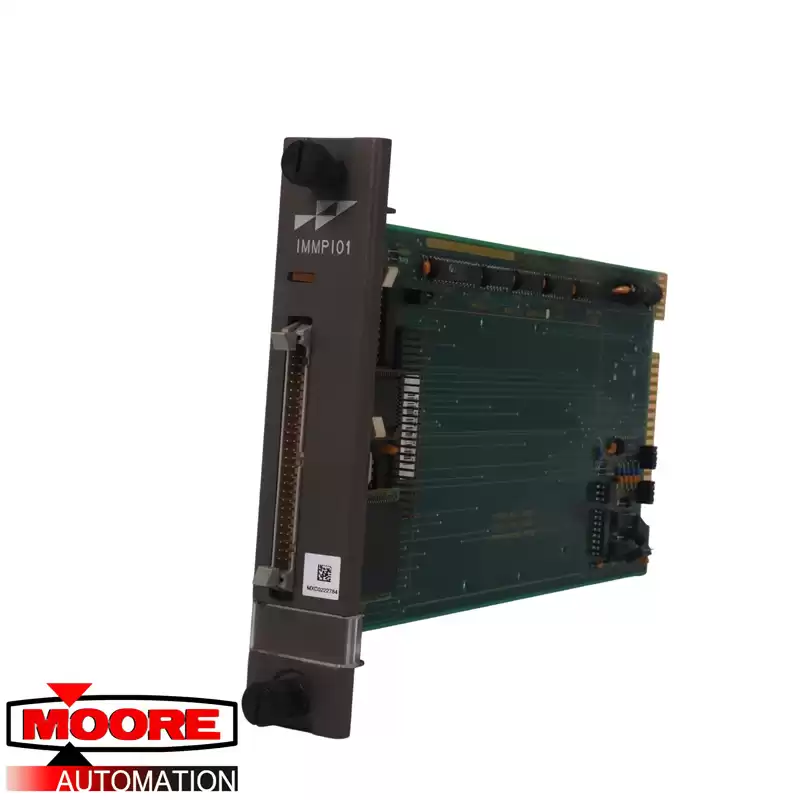

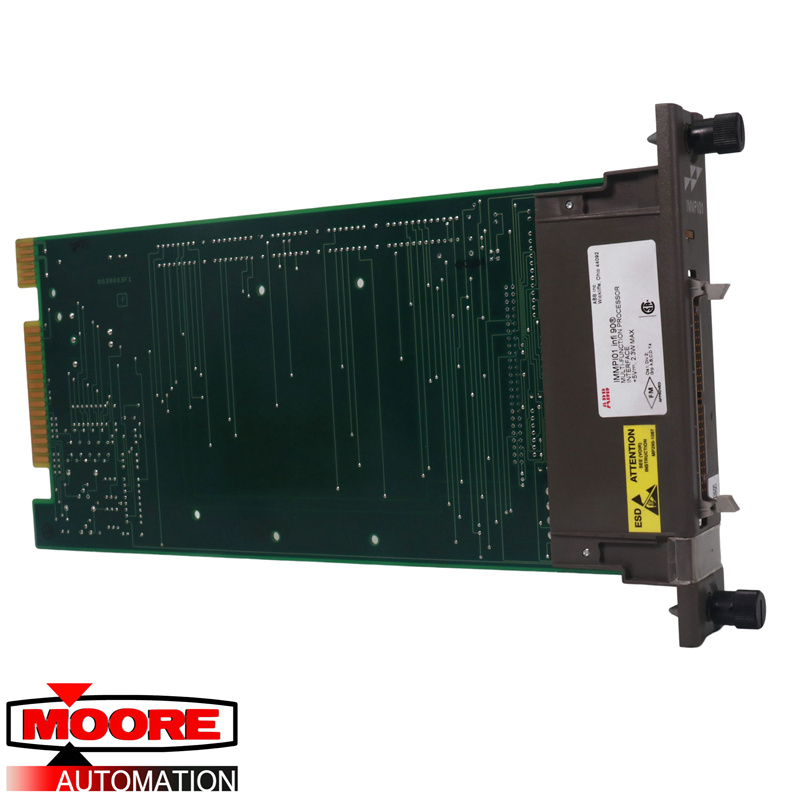

The IMMPI01 module is a single printed circuit board that occupies one slot in the module mounting unit. The circuit board contains microprocessor based communication circuitry that enables it to communicate with its INICT03 module through the ribbon cable connection.The IMMPI01 module has three card edge connectors for external signals and power (P1, P2, and P3). Connector P1 connects to common and +5 VDC power. Connector P2 is not used. Connector P3 is used to cable connect the module to an NTMP01 termination unit. The P6 connector is used to cable connect the IMMPI01 module to the INICT03 module
