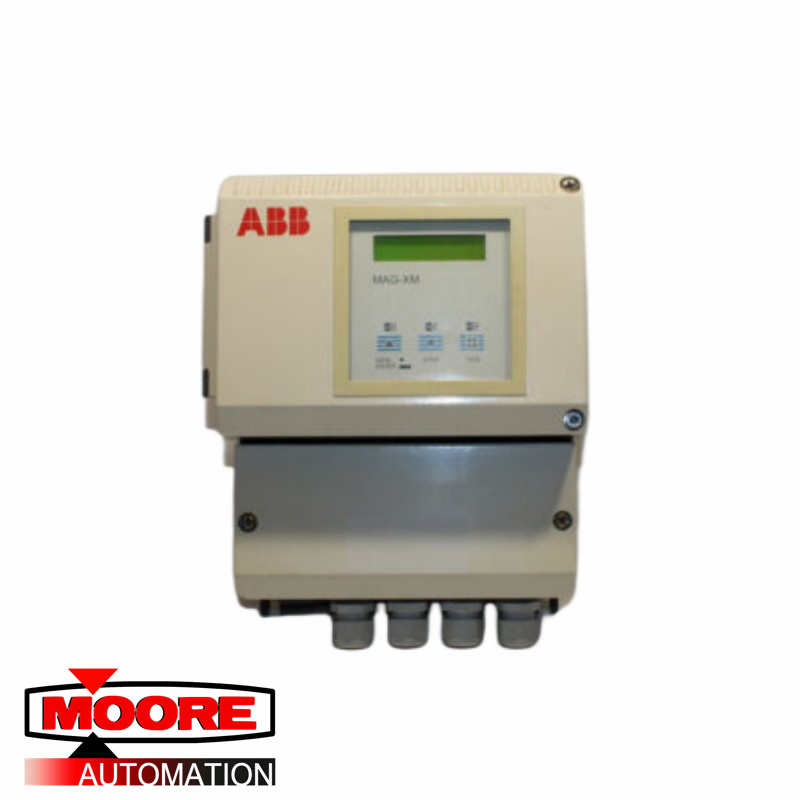

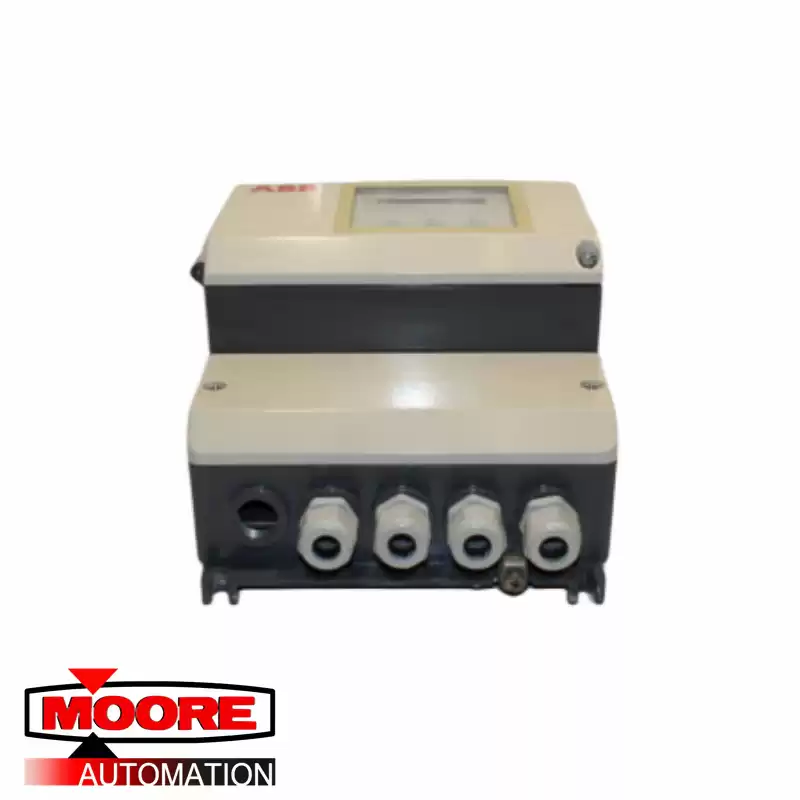

Product Description:
The converter processes the flowrate proportional signals
from the electromagnetic flowmeter primary into frequency
proportional pulse signals (scaled or unscaled output) and
into a current output.In every installation it is important to assure that only a
flowmeter primary designed for pulsed DC magnetic field
excitation is connected to the converter 50XM2000. The
flowmeter primaries with the following Model Numbers are
included in the pulsed DC family: 10DX2111, 10DX2112,
DM_2, 10DX3111, DM_4, (10D31XY)10DX3112. The
Model Numbers are recorded on the Instrument Tag
mounted on the connection box of the flowmeter primary.
The installation site for the converter must be essentially free of
vibration. The specified temperature limits of -25 °C and +60 °C
must be observed. Consideration must be given to the max.
signal cable length between the flowmeter primary and the
converter which is limited to 200 m1). For agency approved
EMF designs (Volume Flow Integrators) the max. cable length
is 100 m.
In addition the installation site of the converter should not be
exposed to direct sunlight. If the ambient temperature limit of
+60 °C is exceeded the readability of the LC-Display is affected.
It will no longer to read the process information. If it in not
possible to avoid direct sunlight, a sun shield should be
installed.
